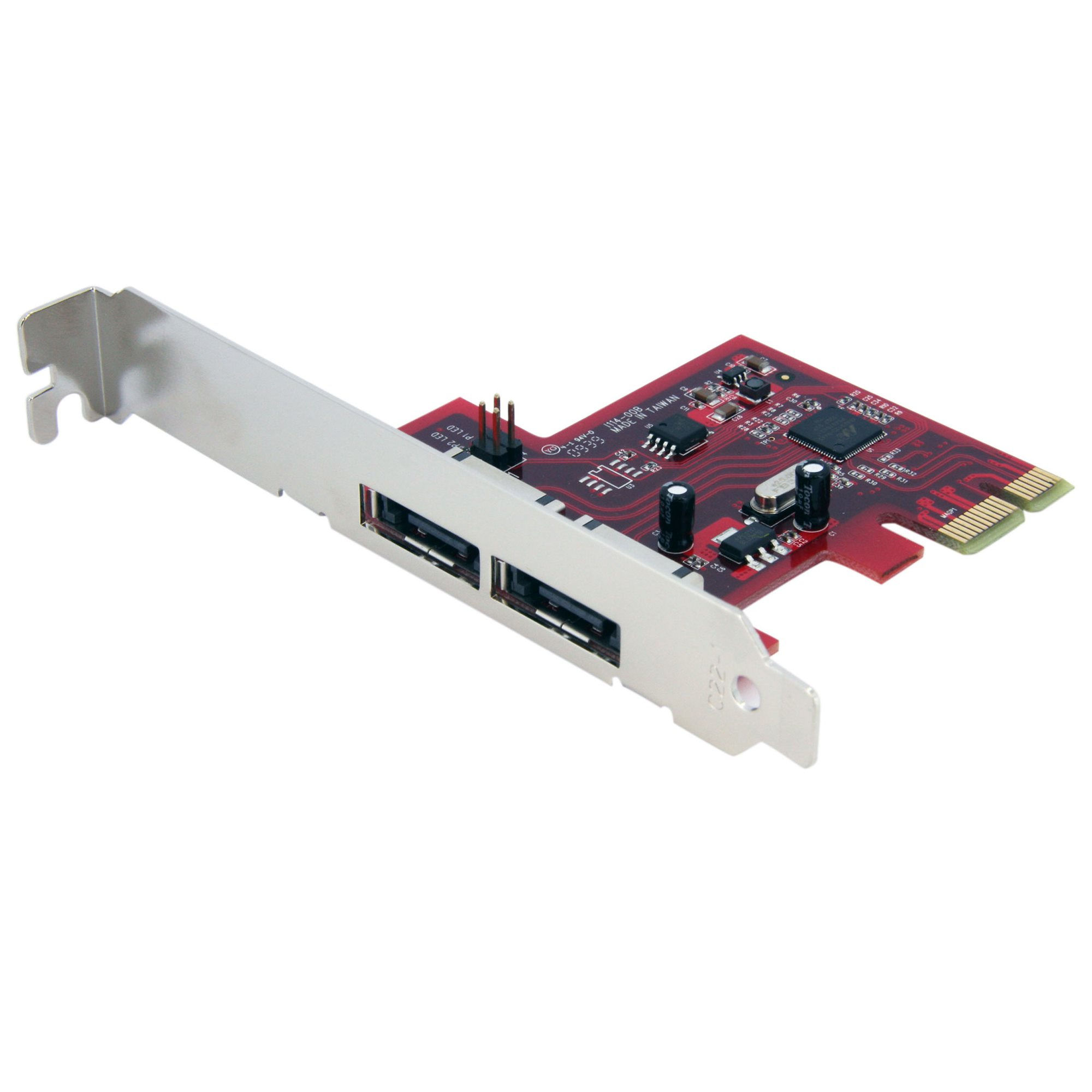

StarTech.com 2 Port SATA 6 Gbps PCI Express eSATA Controller Card
Brand: StarTech.com · SKU: PEXESAT32 · MPN: PEXESAT32 · Category: Components
StarTech.com 2 Port SATA 6 Gbps PCI Express eSATA Controller Card, PCIe, eSATA, PCIe 2.0, 5046000 h, Marvell - 88SE9128, 6 Gbit/s. StarTech.com 2 Port SATA 6 Gbps PCI Express eSATA Controller Card (part number PEXESAT32) is an enterprise components product available from Server Tech Central. Key specifications include depth 70 mm, width 120 mm, height 20 mm, weight 35 g, chipset Marvell - 88SE9128, internal Yes, raid levels 0, 1, JBOD, package depth 145 mm. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 70 mm |
|---|---|
| Width | 120 mm |
| Height | 20 mm |
| Weight | 35 g |
| Chipset | Marvell - 88SE9128 |
| Internal | Yes |
| RAID levels | 0, 1, JBOD |
| Package depth | 145 mm |
| Package width | 175 mm |
| SATA revision | 3.0 |
| Host interface | PCIe |
| Package height | 32 mm |
| Package weight | 127 g |
| Port multiplier | Yes |
| Drivers included | Yes |
| Output interface | eSATA |
| eSATA ports quantity | 2 |
| Compliance certificates | CE, RoHS |
| Expansion card standard | PCIe 2.0 |
| Data transfer rate (max) | 6 Gbit/s |
| Quick installation guide | Yes |
| Master (outer) case width | 388 mm |
| Storage temperature (T-T) | -25 - 70 °C |
| Sustainability compliance | Yes |
| Warranty | 3-Year Warranty |
| Weight | 35 g |
| Dimensions | 120 mm x 70 mm x 20 mm |
Product Description
The PEXESAT32 2 Port PCI Express 6Gbps eSATA Controller Card offers simple connectivity between a host computer and eSATA 3.0 devices - a cost-effective solution for connecting high-speed storage, such as High RPM Hard Drives and Solid State Drives (SSD), which in turn allows for easier data backups and archiving. With full support for SATA 3.0 hard drives and data transfer speeds of up to 6 Gbps, the adapter card features a native PCI Express single chipset that provides enhanced compatibility, reliability and performance for external SATA 600 MB/s storage needs. The controller card is backward compatible with SATA 2.0 devices, providing the versatility to use older storage, and features support for RAID 0 and 1 modes as well as port multiplier capability with command-based and FIS-based switching for connecting multiple external hard drives to a host PC through a single external SATA connection. A dual profile solution, the eSATA controller card includes a low profile/half-height bracket for installation in slimline or small form factor computer cases. The StarTech.com Advantage - Supports SATA 3.0 data transfer speeds up to 6Gbps - twice the speed of SATA II (3Gbps) - Ships with a full profile bracket installed and includes a low profile/half-height bracket that provides the option to install in a small form factor PC
Key Features
StarTech.com 2 Port SATA 6 Gbps PCI Express eSATA Controller Card. Host interface: PCIe, Output interface: eSATA, Expansion card standard: PCIe 2.0. Mean time between failures (MTBF): 5046000 h. Chipset: Marvell - 88SE9128, Data transfer rate (max): 6 Gbit/s, Logical block addressing (LBA) support: 48 bit. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow..., Server operating systems supported: Windows Server 2003, Windows Server 2003 x64, Windows Server 2008 R2, Windows Server 2012, Windows.... Width: 120 mm, Depth: 70 mm, Height: 20 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 2 Port SATA 6 Gbps PCI Express eSATA Controller Card (PEXESAT32) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 2 Port SATA 6 Gbps PCI Express eSATA Controller Card includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 2 Port SATA 6 Gbps PCI Express eSATA Controller Card compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PEXESAT32.
