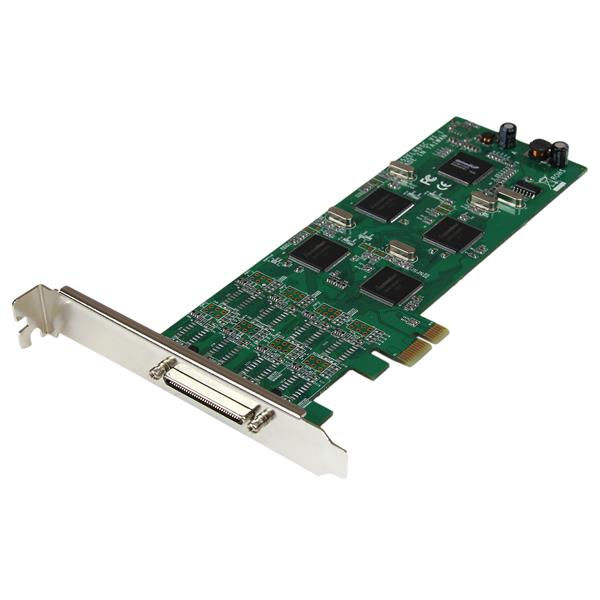

StarTech.com 8 Port Low Profile PCI Express RS232 Serial Adapter Card w/ 161050 UART
Brand: StarTech.com · SKU: PEX8S1052 · MPN: PEX8S1052 · Category: Components
StarTech.com 8 Port Low Profile PCI Express RS232 Serial Adapter Card w/ 161050 UART, PCIe, Serial, Low-profile, RS-232, Server, CE, FCC. StarTech.com 8 Port Low Profile PCI Express RS232 Serial Adapter Card w/ 161050 UART (part number PEX8S1052) is an enterprise components product available from Server Tech Central. Key specifications include depth 175 mm, width 18 mm, height 69 mm, weight 66 g, purpose Server, internal Yes, certification CE, FCC, host interface PCIe. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 175 mm |
|---|---|
| Width | 18 mm |
| Height | 69 mm |
| Weight | 66 g |
| Purpose | Server |
| Internal | Yes |
| Certification | CE, FCC |
| Host interface | PCIe |
| Package weight | 551 g |
| Output interface | Serial |
| Serial interface type | RS-232 |
| Serial ports quantity | 8 |
| Compliance certificates | RoHS |
| Quick installation guide | Yes |
| Storage temperature (T-T) | -60 - 150 °C |
| Expansion card form factor | Low-profile |
| FIFO (First In, First Out) | 256 B |
| Mounting brackets included | Yes |
| Operating temperature (T-T) | 0 - 100 °C |
| Linux operating systems supported | Yes |
| Operating relative humidity (H-H) | 20 - 80% |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Warranty | 3-Year Warranty |
| Weight | 66 g |
| Dimensions | 18 mm x 175 mm x 69 mm |
Product Description
Add 8 RS-232 serial ports to your computer through a single low profile PCI Express slot The PEX8S1052 8 Port Low Profile PCI Express RS232 Serial Adapter Card w/ 161050 UART lets you add 8 RS-232 serial ports to your computer through a single low profile PCI Express slot. Supporting data rates up to 460.8 Kbps, the PCI express serial port card offers a high performance 16C1050 UART and a large 256-Byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU. Suitable for most standard computer chassis, the 8 port serial card offers a low profile/half-height design and includes an optional full-height bracket. The included break-out cable uses a single connector on the card to deliver 8 ports, avoiding crowded connections that can occur with fixed/static ports. Backed by a StarTech.com lifetime warranty and free lifetime technical support. The StarTech.com Advantage - Breakout cable design uses only 1 PCIe slot to add 8 serial ports - Included low and full profile brackets fit almost any PC case
Key Features
StarTech.com 8 Port Low Profile PCI Express RS232 Serial Adapter Card w/ 161050 UART. Host interface: PCIe, Output interface: Serial, Expansion card form factor: Low-profile. Purpose: Server, Certification: CE, FCC. FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Server operating systems supported: Windows Server 2003, Windows Server 2008. Width: 18 mm, Depth: 175 mm, Height: 69 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 8 Port Low Profile PCI Express RS232 Serial Adapter Card w/ 161050 UART (PEX8S1052) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 8 Port Low Profile PCI Express RS232 Serial Adapter Card w/ 161050 UART includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 8 Port Low Profile PCI Express RS232 Serial Adapter Card w/ 161050 UART compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PEX8S1052.
