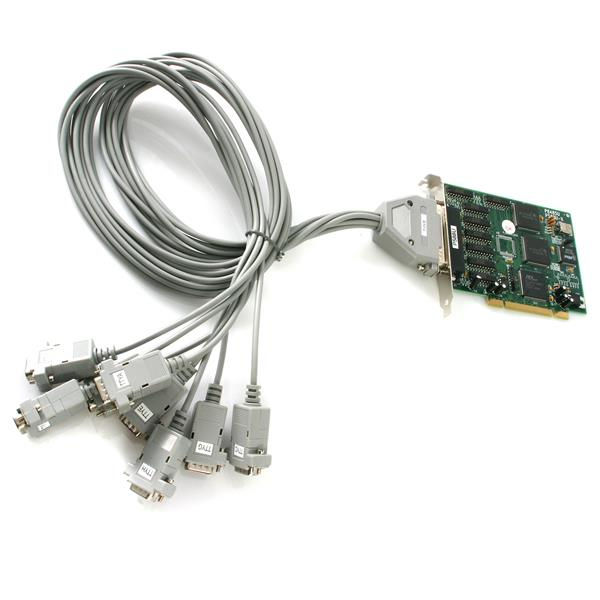

StarTech.com 8 Port PCI RS232 Serial Adapter Card High Speed 16950 cable included
Brand: StarTech.com · SKU: PCI8S9503V · MPN: PCI8S9503V · Category: Components
StarTech.com 8 Port PCI RS232 Serial Adapter Card High Speed 16950 cable included, PCI, Serial, RS-232, DB37 Female, PLX PCI9030, 16 B. StarTech.com 8 Port PCI RS232 Serial Adapter Card High Speed 16950 cable included (part number PCI8S9503V) is an enterprise components product available from Server Tech Central. Key specifications include depth 145 mm, width 20 mm, height 104 mm, weight 800 g, chipset PLX PCI9030, internal Yes, i/o ports External Ports: 8 - DB 9-pin Serial Male, cable length 1.2 m. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 145 mm |
|---|---|
| Width | 20 mm |
| Height | 104 mm |
| Weight | 800 g |
| Chipset | PLX PCI9030 |
| Internal | Yes |
| I/O ports | External Ports: 8 - DB 9-pin Serial Male |
| Cable length | 1.2 m |
| Connector(s) | DB37 Female |
| Package depth | 294 mm |
| Package width | 70 mm |
| Host interface | PCI |
| Package height | 263 mm |
| Package length | 1.16 cm |
| Package weight | 900 g |
| Ports quantity | 8 |
| Output interface | Serial |
| Quantity per box | 10 pc(s) |
| Data transfer rate | 0.921 Mbit/s |
| Serial interface type | RS-232 |
| Serial ports quantity | 8 |
| Compliance certificates | RoHS |
| Package weight (imperial) | 0.88 kg (1.94 lbs) |
| Storage temperature (T-T) | 0 - 65 °C |
| Warranty | 3-Year Warranty |
| Weight | 800 g |
| Dimensions | 20 mm x 145 mm x 104 mm |
Product Description
Add eight RS232 serial ports to any PC using a single PCI expansion slot The PCI8S9503V 8 Port PCI RS232 Serial Adapter Card High Speed 16950 (cable included) lets you connect up to 8 RS-232 serial devices to the host computer at data rates up to 921 Kbps, and can be installed in either a 3.3V or 5V PCI/PCI-X slot. The PCI serial card uses a 16 Byte buffer simultaneously in both transmit and receive channels, reducing the number of CPU interrupts while improving system performance. Ideally suited to industrial applications, the buffered Serial PCI card is compatible with a broad range of operating systems, including Windows, DOS, Linux, and Unix operating environments. Backed by a StarTech.com Lifetime warranty and free lifetime technical support. The StarTech.com Advantage - The included breakout cable saves expense as an all-in-one solution and allows the addition of multiple high speed RS-232 serial ports to a single low-profile PCI slot - Universal PCI card works in both 3.3 and 5.0 volt PCI/PCI-X slots saving the hassle of purchasing different cards depending on slot type - Compatible with most major OS platforms including Windows, Linux and Unix for simple integration into mixed environments
Key Features
StarTech.com 8 Port PCI RS232 Serial Adapter Card High Speed 16950 cable included. Host interface: PCI, Output interface: Serial, Serial interface type: RS-232. Chipset: PLX PCI9030, FIFO (First In, First Out): 16 B. Windows operating systems supported: Windows 2000, Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Professional, Windows 7.... Width: 20 mm, Depth: 145 mm, Height: 104 mm. Package width: 70 mm, Package depth: 294 mm, Package height: 263 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 8 Port PCI RS232 Serial Adapter Card High Speed 16950 cable included (PCI8S9503V) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 8 Port PCI RS232 Serial Adapter Card High Speed 16950 cable included includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 8 Port PCI RS232 Serial Adapter Card High Speed 16950 cable included compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PCI8S9503V.
