StarTech.com 2 Port RS232 PCI Express Serial Card interface cards/adapter Internal
Brand: StarTech.com · SKU: PEX2S952PW · MPN: PEX2S952PW · Category: Components
StarTech.com 2 Port RS232 PCI Express Serial Card, PCIe, Serial, RS-232, Black, CE, FCC, PLX OXPCIe952. StarTech.com 2 Port RS232 PCI Express Serial Card interface cards/adapter Internal (part number PEX2S952PW) is an enterprise components product available from Server Tech Central. Key specifications include depth 80 mm, width 15 mm, height 59 mm, weight 54 g, chipset PLX OXPCIe952, internal Yes, certification CE, FCC, package depth 170 mm. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 80 mm |
|---|---|
| Width | 15 mm |
| Height | 59 mm |
| Weight | 54 g |
| Chipset | PLX OXPCIe952 |
| Internal | Yes |
| Certification | CE, FCC |
| Package depth | 170 mm |
| Package width | 142 mm |
| Host interface | PCIe |
| Output voltage | 5, 12 V |
| Package height | 30 mm |
| Package weight | 270 g |
| Product colour | Black |
| Output interface | Serial |
| Power supply type | DC |
| Serial interface type | RS-232 |
| Serial ports quantity | 2 |
| Compliance certificates | RoHS |
| Connectivity technology | Wired |
| Storage temperature (T-T) | -20 - 60 °C |
| FIFO (First In, First Out) | 128 B |
| Operating temperature (T-T) | 0 - 50 °C |
| Compatible operating systems | Windows 7 (32/64bit)/ Vista(32/64)/ XP(32/64)/ CE 5.0 Windows Server 2008 R2/ 2003(32/64)/ 2000 Linux 2.4.x/2.6.x |
| Warranty | 3-Year Warranty |
| Weight | 54 g |
| Dimensions | 15 mm x 80 mm x 59 mm |
Product Description

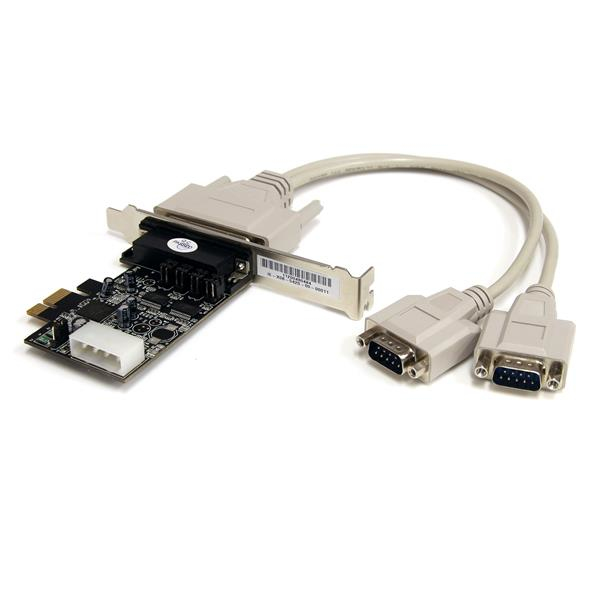

The PEX2S952PW 2-Port PCI Express Serial Card (with Power Output) turns a PCI Express slot into 2 RS232 (DB9) serial connections and enables compatible devices to draw power from the serial ports. Suitable for many RS232-powered serial applications, this PCIe serial card offers a selectable 5V or 12V power option capable of power output using pin 1, 4, 8 or 9, allowing you to configure the card to suit the requirements of your powered RS232 devices. A flexible solution for adding serial ports to small form factor or full-sized systems, the 2-port serial card includes both low and full profile brackets. To ensure maximum performance, the serial card is based on a native single chip design, that allows you to harness the full capability of PCI Express (PCIe) - providing optimum reliability and speed while reducing the load applied to the CPU by as much as 48% over conventional (bridge chip) serial cards.
Key Features
StarTech.com 2 Port RS232 PCI Express Serial Card. Host interface: PCIe, Output interface: Serial, Serial interface type: RS-232. Product colour: Black, Certification: CE, FCC. Chipset: PLX OXPCIe952, FIFO (First In, First Out): 128 B. Power supply type: DC, Output voltage: 5, 12 V. Width: 15 mm, Depth: 80 mm, Height: 59 mm
