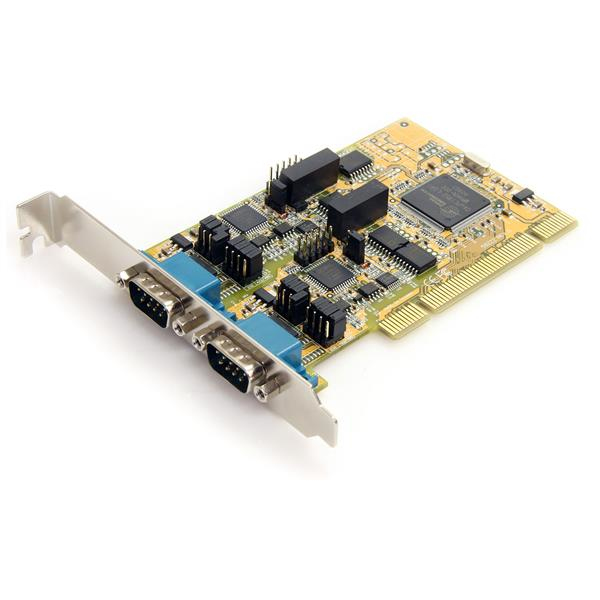

StarTech.com 2 Port RS232/422/485 PCI Serial Adapter Card w/ ESD Protection
Brand: StarTech.com · SKU: PCI2S232485I · MPN: PCI2S232485I · Category: Components
StarTech.com 2 Port RS232/422/485 PCI Serial Adapter Card w/ ESD Protection, PCI/PCI-X, Serial, PCI 2.2, RS-232/422/485, Yellow, 234450 h. StarTech.com 2 Port RS232/422/485 PCI Serial Adapter Card w/ ESD Protection (part number PCI2S232485I) is an enterprise components product available from Server Tech Central. Key specifications include depth 121 mm, width 74 mm, height 18 mm, manual Yes, weight 100 g, chipset PLX/Oxford - OXuPCI952, internal Yes, baud rate 921.6 Kbit/s. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 121 mm |
|---|---|
| Width | 74 mm |
| Height | 18 mm |
| Manual | Yes |
| Weight | 100 g |
| Chipset | PLX/Oxford - OXuPCI952 |
| Internal | Yes |
| Baud rate | 921.6 Kbit/s |
| Data bits | 5, 6, 7, 8 |
| Certification | CE, FCC |
| Package depth | 212 mm |
| Package width | 147 mm |
| Host interface | PCI/PCI-X |
| Package height | 41 mm |
| Package weight | 200.26 g |
| Product colour | Yellow |
| Drivers included | Yes |
| Output interface | Serial |
| Flow control support | Yes |
| Serial interface type | RS-232/422/485 |
| Serial ports quantity | 2 |
| Compliance certificates | RoHS |
| Expansion card standard | PCI 2.2 |
| Storage temperature (T-T) | -20 - 85 °C |
| Warranty | 3-Year Warranty |
| Weight | 100 g |
| Dimensions | 74 mm x 121 mm x 18 mm |
Product Description
Control and communicate with two serial devices even with mixed RS-232 & 485 protocols The PCI2S232485I PCI Serial Adapter Card lets you turn a PCI or PCI-X slot into 2 serial ports capable of communicating in RS-232, RS-422, or RS-485 operating modes, at baud rates up to 921.6 Kbps. This universal serial adapter not only features two DB9 serial ports that can be independently configured, but also supports nearly any configuration including: RS-422, RS-485 2-wire, RS-485 4-wire, or RS-232 modes. Designed for reliability, this 2-port PCI Serial card also features built-in ESD (Electro-Static Discharge) protection to ensure that your connected serial devices remain protected. For added versatility, the PCI RS232 card is compatible with a broad range of operating systems, including Windows, Windows Server, Windows Embedded and Linux platforms, for simple installation into mixed environments. Backed by a StarTech.com lifetime warranty and free lifetime technical support. The StarTech.com Advantage - Communicate with multiple devices over mixed protocols with RS232, RS422 and RS485 compatibility - Install on many different operating systems with broad OS support including embedded and POS systems
Key Features
StarTech.com 2 Port RS232/422/485 PCI Serial Adapter Card w/ ESD Protection. Host interface: PCI/PCI-X, Output interface: Serial, Expansion card standard: PCI 2.2. Product colour: Yellow, Mean time between failures (MTBF): 234450 h, Certification: CE, FCC. Chipset: PLX/Oxford - OXuPCI952, Baud rate: 921.6 Kbit/s, FIFO (First In, First Out): 128 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016. Width: 74 mm, Depth: 121 mm, Height: 18 mm
