StarTech.com Discontinued and replaced by PEX2S953: 2 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART
Brand: StarTech.com · SKU: PEX2S952 · MPN: PEX2S952 · Category: Components
StarTech.com Discontinued and replaced by PEX2S953: 2 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART, PCIe, Serial, PCIe 1.0, RS-232, Green, 87600 h. StarTech.com Discontinued and replaced by PEX2S953: 2 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART (part number PEX2S952) is an enterprise components product available from Server Tech Central. Key specifications include depth 90 mm, width 65 mm, height 20 mm, manual Yes, weight 60 g, chipset PLX/Oxford - OXPCIe952, internal Yes, baud rate 460.8 Kbit/s. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 90 mm |
|---|---|
| Width | 65 mm |
| Height | 20 mm |
| Manual | Yes |
| Weight | 60 g |
| Chipset | PLX/Oxford - OXPCIe952 |
| Internal | Yes |
| Baud rate | 460.8 Kbit/s |
| Data bits | 4, 5, 6, 7, 8 |
| Stop bits | 1, 1.5, 2 |
| Certification | CE, FCC |
| Package depth | 145 mm |
| Package width | 175 mm |
| Host interface | PCIe |
| Package height | 33 mm |
| Package weight | 152 g |
| Product colour | Green |
| Drivers included | Yes |
| Output interface | Serial |
| Serial interface type | RS-232 |
| Serial ports quantity | 2 |
| Compliance certificates | RoHS |
| Expansion card standard | PCIe 1.0 |
| Master (outer) case width | 357 mm |
| Warranty | 3-Year Warranty |
| Weight | 60 g |
| Dimensions | 65 mm x 90 mm x 20 mm |
Product Description

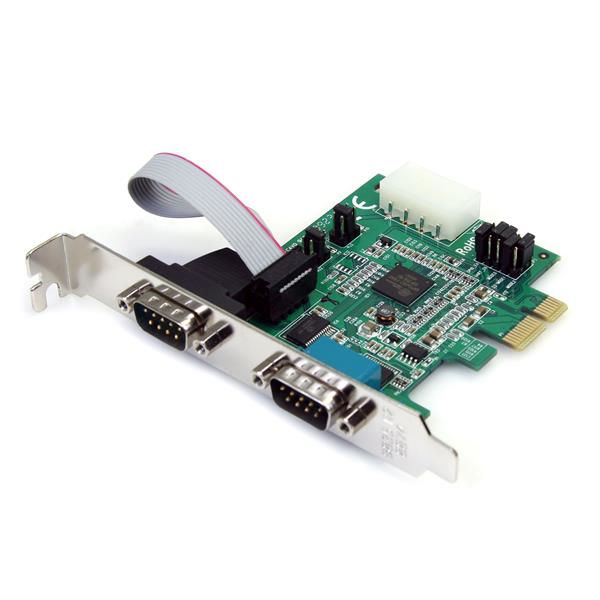

Add 2 RS-232 serial ports to your full height or low profile computer through a PCI Express slot The PEX2S952 PCI Express based serial card turns a PCI Express slot into 2 RS-232 (DB9) serial connections. The adapter card is based on a native single chip design, that allows you to harness the full capability of PCI Express (PCIe) - providing optimum reliability and speed while reducing the load applied to the CPU by as much as 48% over conventional (bridge chip) serial cards. The RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows and Linux (Kernel 2.6.11 to 4.11.x). Plus, the adapter card includes an optional half-height/low profile bracket that allows the card to be installed in virtually any computer case - making it that much easier to add serial ports to a PCI Express enabled computer, regardless of the size of the computer case. Backed by a StarTech.com Lifetime warranty and free lifetime technical support. The StarTech.com Advantage - Data transfer rates of up to 460 Kbps for peak serial device performance - Native single-chip, single lane PCI Express offers increased speed and reduced CPU load by up to 48% - Standard and low profile bracket included ensuring easy installation into almost any system
Key Features
StarTech.com Discontinued and replaced by PEX2S953: 2 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART. Host interface: PCIe, Output interface: Serial, Expansion card standard: PCIe 1.0. Product colour: Green, Mean time between failures (MTBF): 87600 h, Certification: CE, FCC. Chipset: PLX/Oxford - OXPCIe952, Baud rate: 460.8 Kbit/s, FIFO (First In, First Out): 128 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows..., Other operating systems supported: Windows XP Embedded. Width: 65 mm, Depth: 90 mm, Height: 20 mm
