StarTech.com 2 Port Industrial PCI Express (PCIe) RS232 Serial Card w/ Power Output and ESD Protection
Brand: StarTech.com · SKU: PEX2S553S · MPN: PEX2S553S · Category: Components
StarTech.com 2 Port Industrial PCI Express (PCIe) RS232 Serial Card w/ Power Output and ESD Protection, PCIe, Serial, RS-232, 0.0009216 Gbit/s, 256 B, -30 - 75 °C. StarTech.com 2 Port Industrial PCI Express (PCIe) RS232 Serial Card w/ Power Output and ESD Protection (part number PEX2S553S) is an enterprise components product available from Server Tech Central. Key specifications include depth 121 mm, width 98 mm, height 18 mm, weight 59 g, internal Yes, user guide Yes, package depth 142 mm, package width 170 mm. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 121 mm |
|---|---|
| Width | 98 mm |
| Height | 18 mm |
| Weight | 59 g |
| Internal | Yes |
| User guide | Yes |
| Package depth | 142 mm |
| Package width | 170 mm |
| Host interface | PCIe |
| Package height | 30 mm |
| Package weight | 171 g |
| Output interface | Serial |
| Serial interface type | RS-232 |
| Serial ports quantity | 2 |
| Compliance certificates | RoHS |
| Data transfer rate (max) | 0.0009216 Gbit/s |
| Storage temperature (T-T) | -40 - 85 °C |
| FIFO (First In, First Out) | 256 B |
| Operating temperature (T-T) | -30 - 75 °C |
| Linux operating systems supported | Yes |
| Operating relative humidity (H-H) | 5 - 95% |
| Server operating systems supported | Windows Server 2003, Windows Server 2003 x64, Windows Server 2008 R2 |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Warranty | 3-Year Warranty |
| Weight | 59 g |
| Dimensions | 98 mm x 121 mm x 18 mm |
Product Description

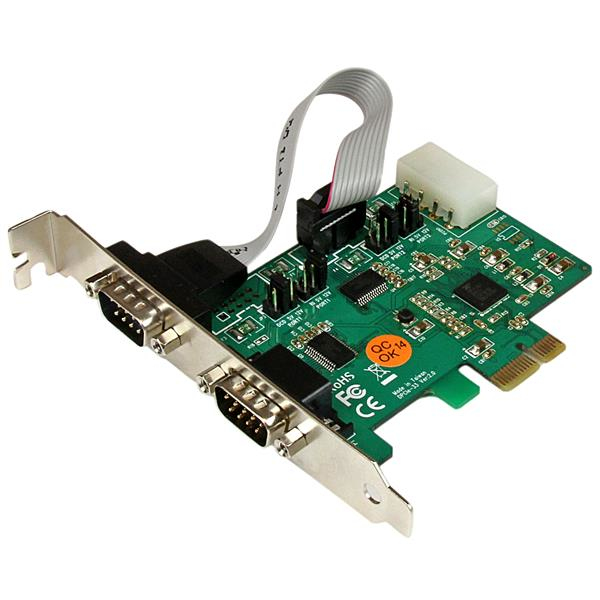

Add two high speed, ESD-Protected RS232 ports, with 5V or 12V selectable power output through a PCI Express slot The PEX2S553S 2-Port PCI Express Serial Card lets you add two ESD-Protected RS232 ports with 5V or 12V selectable power output, through a PCI Express slot. Ideal for industrial environments, this 2-port serial card offers built-in 15KV ESD-protection which helps prevent damage to connected devices in the event of line surges and electro-static discharge. An extended operating temperature range (-30°C to 75°C) also helps to ensure performance in harsh environments. For devices that require additional power, this serial controller has a jumper-selectable 5V or 12V power output option (pin 1 and/or pin 9), through an LP4 connection to your power supply. For added flexibility, the power output can be enabled or disabled on a per-port basis so you choose which port(s) supply power. This versatile RS232 card supports high-speed serial data rates up to 921.6 Kbps, and is compliant with PCIe Gen 2.0 specifications for added bandwidth. To maximize installation options, the 2-port card is equipped with a standard profile bracket and includes an optional low-profile/half-height bracket for installation in small form factor computers. Backed by a StarTech.com lifetime warranty and free lifetime technical support. The StarTech.com Advantage - Protect your system from damage with integrated ESD Protection - Communicate efficiently with connected devices with high-speed 921Kbps support - Power connected serial devices on pin 1 and/or pin 9 with flexible per-port power output settings
Key Features
StarTech.com 2 Port Industrial PCI Express (PCIe) RS232 Serial Card w/ Power Output and ESD Protection. Host interface: PCIe, Output interface: Serial, Serial interface type: RS-232. Data transfer rate (max): 0.0009216 Gbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Server operating systems supported: Windows Server 2003, Windows Server 2003 x64, Windows Server 2008 R2. Width: 98 mm, Depth: 121 mm, Height: 18 mm. Package width: 170 mm, Package depth: 142 mm, Package height: 30 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 2 Port Industrial PCI Express (PCIe) RS232 Serial Card w/ Power Output and ESD Protection (PEX2S553S) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 2 Port Industrial PCI Express (PCIe) RS232 Serial Card w/ Power Output and ESD Protection includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 2 Port Industrial PCI Express (PCIe) RS232 Serial Card w/ Power Output and ESD Protection compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PEX2S553S.
