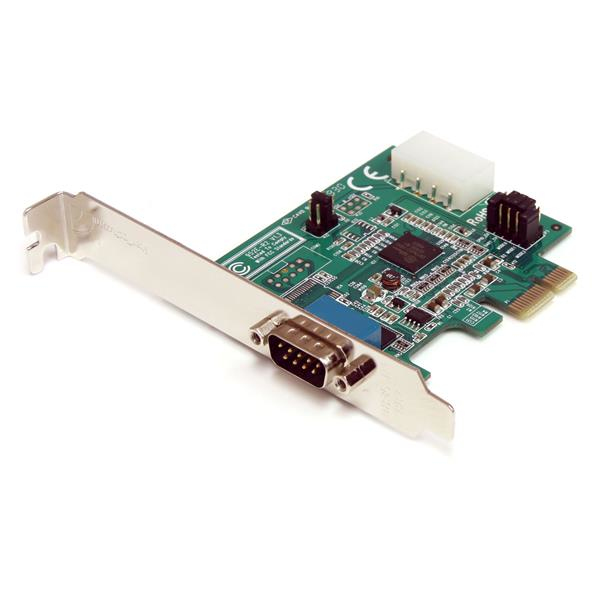

StarTech.com 1 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART
Brand: StarTech.com · SKU: PEX1S952 · MPN: PEX1S952 · Category: Components
StarTech.com 1 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART, PCIe, Serial, RS-232, Green, 128 B, -10 - 80 °C. StarTech.com 1 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART (part number PEX1S952) is an enterprise components product available from Server Tech Central. Key specifications include depth 90 mm, width 65 mm, height 20 mm, weight 48 g, internal Yes, package depth 213 mm, package width 42 mm, host interface PCIe. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 90 mm |
|---|---|
| Width | 65 mm |
| Height | 20 mm |
| Weight | 48 g |
| Internal | Yes |
| Package depth | 213 mm |
| Package width | 42 mm |
| Host interface | PCIe |
| Package height | 145 mm |
| Package weight | 100 g |
| Product colour | Green |
| Output interface | Serial |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Compliance certificates | RoHS |
| Storage temperature (T-T) | -20 - 100 °C |
| FIFO (First In, First Out) | 128 B |
| Operating temperature (T-T) | -10 - 80 °C |
| Linux operating systems supported | Yes |
| Operating relative humidity (H-H) | 5 - 85% |
| Server operating systems supported | Windows 2000 Server, Windows Server 2003, Windows Server 2003 x64, Windows Server 2008 R2, Windows Server 2012 |
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Warranty | 3-Year Warranty |
| Weight | 48 g |
| Dimensions | 65 mm x 90 mm x 20 mm |
Product Description
Add an RS232 Serial port through a PCI Express expansion slot The PEX1S952 1 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART adds an RS232 (DB9) Serial Port with data rates up to 460 Kbps to a computer through an available PCI Express slot, while relying on a native, single-chip design (Oxford OXPCIe952) that harnesses the capability of true PCI Express - ensuring maximum performance and reliability and reducing the load applied to the CPU by as much as 48% over conventional serial cards. Compatible with a broad range of operating systems including Windows and Linux for easy integration, the PEX1S952 PCI Express Serial Card also features an optional half-height/low profile bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor. Backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - Native single-Chip, single lane PCI Express offers increased performance, for up to 48% less CPU load - Data transfer rates of up to 460 Kbps for efficient serial device performance - Pre-configured for standard profile systems but includes a low profile bracket for versatility
Key Features
StarTech.com 1 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART. Host interface: PCIe, Output interface: Serial, Serial interface type: RS-232. Product colour: Green. FIFO (First In, First Out): 128 B. Windows operating systems supported: Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium..., Server operating systems supported: Windows 2000 Server, Windows Server 2003, Windows Server 2003 x64, Windows Server 2008 R2, Windows.... Width: 65 mm, Depth: 90 mm, Height: 20 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 1 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART (PEX1S952) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 1 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 1 Port Native PCI Express RS232 Serial Adapter Card with 16950 UART compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PEX1S952.
