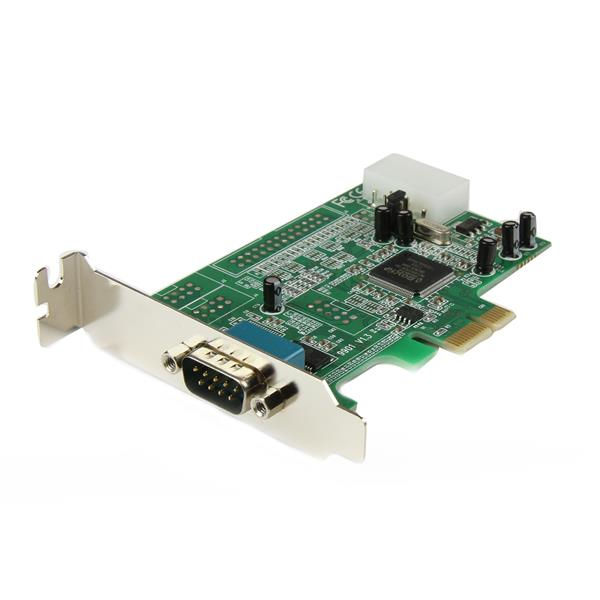

StarTech.com 1 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART
Brand: StarTech.com · SKU: PEX1S553 · MPN: PEX1S553 · Category: Components
StarTech.com 1 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART, PCIe, Serial, PCIe 1.1, RS-232, Green, Microsoft WHQL, CE, FCC. StarTech.com 1 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART (part number PEX1S553) is an enterprise components product available from Server Tech Central. Key specifications include depth 105 mm, width 80 mm, height 20 mm, manual Yes, weight 51.5 g, chipset ASIX - MCS9922CV-AA, internal Yes, baud rate 460.8 Kbit/s. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 105 mm |
|---|---|
| Width | 80 mm |
| Height | 20 mm |
| Manual | Yes |
| Weight | 51.5 g |
| Chipset | ASIX - MCS9922CV-AA |
| Internal | Yes |
| Baud rate | 460.8 Kbit/s |
| Certification | Microsoft WHQL, CE, FCC |
| Package depth | 213 mm |
| Package width | 38 mm |
| Host interface | PCIe |
| Package height | 138 mm |
| Package weight | 200 g |
| Product colour | Green |
| Drivers included | Yes |
| Output interface | Serial |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Compliance certificates | RoHS |
| Expansion card standard | PCIe 1.1 |
| Storage temperature (T-T) | -20 - 100 °C |
| FIFO (First In, First Out) | 128 B |
| Operating temperature (T-T) | -10 - 80 °C |
| Warranty | 3-Year Warranty |
| Weight | 51.5 g |
| Dimensions | 80 mm x 105 mm x 20 mm |
Product Description
Add a high-speed RS-232 Serial port to your computer through a PCI Express expansion slot The PEX1S553 PCI Express Serial adapter card allows you to turn a PCI Express slot into an RS232 (DB9) serial connection. The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards. The PCI Express (RS232) Serial Adapter Card is compatible with a broad range of operating systems including Windows 2000/XP/2003/Vista/Windows 7/Server 2008 R2 (32 and 64 bit), Linux Kernel 2.6.11 to 4.11x, as well as MAC OS X 10.4 and above. The adapter card includes an optional half-height/low profile bracket, that lets you add a serial port to virtually any computer, regardless of the case form factor. This product is a replacement for our PEX1S552 card. Backed by a StarTech.com Lifetime warranty and free lifetime technical support. The StarTech.com Advantage - Native single-chip, single lane PCI Express chipset delivers true PCIe performance - Standard and low profile/half-height bracket included to ensure fitment in any system - Easy to install and use with full step-by-step instructions saving time and hassle
Key Features
StarTech.com 1 Port Native PCI Express RS232 Serial Adapter Card with 16550 UART. Host interface: PCIe, Output interface: Serial, Expansion card standard: PCIe 1.1. Product colour: Green, Certification: Microsoft WHQL, CE, FCC. Chipset: ASIX - MCS9922CV-AA, Baud rate: 460.8 Kbit/s, FIFO (First In, First Out): 128 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard,..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 80 mm, Depth: 105 mm, Height: 20 mm
