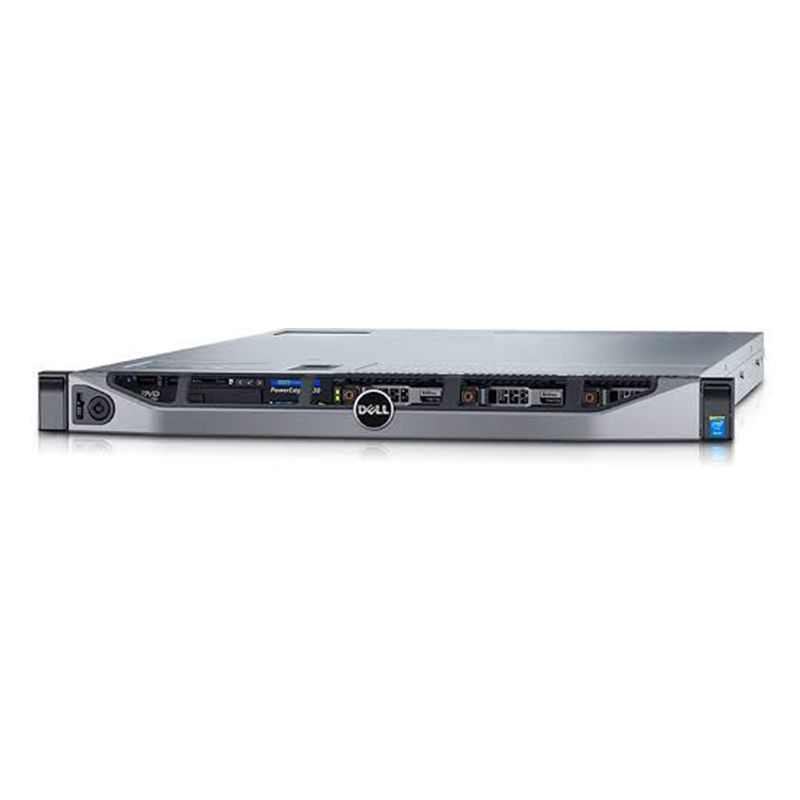

PowerEdge R630, Dell PowerEdge Rack Server, Intel Xeon E5-2640 v4/32GB Memory/2TB SAS H330
SKU: pe_r630_1337_c · MPN: pe_r630_1337_c · Category: Servers
Request for Quote
In Stock • 10 units
Customizable: Intel® Xeon® E5-2640 v4, Optional Operating System, 32GB Memory, 2TB SAS H330 Hard Drive and a 3 year ProSupport Warranty
Specifications
| Model | Dell PowerEdge R630 Xeon E5-2640 v4 32GB 2TB SAS H330 Rack Server |
|---|---|
| Power | 1100W AC, 86 mm (Platinum) 1100W DC, 86 mm 750W AC, 86 mm (Platinum) 750W AC, 86 mm (Titanium) 495W AC, 86 mm (Platinum) |
| Slots | 2 CPUs, 3 slots Slot 1: Half length, half height - PCIe 3.0 x16 (x16 connector) Slot 2: Half length, half height - PCIe 3.0 x8 (x16 connector) Slot 3: Half length, half height - PCIe 3.0 x16 (x16 connector) 2CPUs, 2 slots Slot 1: Half length, half height - PCIe 3.0 x16 (x16 connector) Slot 2: 3/4 length, full height - PCIe 3.0 x16 (x16 connector) 1CPU, 2 slots Slot 1: Half length, half height - PCIe 3.0 x8 (x16 connector) Slot 2: 3/4 length, full height - PCIe 3.0 x16 (x16 connector Dedicated RAID card slot |
| Memory | 32GB RDIMM, 2400MT/s, Dual Rank, x4 Data Width |
| Chassis | The 24 x 1.8” drive and 10 x 2.5” drive configurations have the following dimensions: Form Factor: 1U H: 4.28 cm (1.68 in.) x W: 48.23 cm (18.98 in.) x D: 75.51 cm (29.72 in.) The 8 x 2.5” drive configuration has the following dimensions: Form Factor: 1U H: 4.28 cm (1.68 in.) W: 48.23 cm (18.98 in.) D: 70.05 cm (27.57 in.) |
| Chipset | Intel C610 series chipset |
| Storage | HDD: SAS, SATA, nearline SAS SSD: SAS, SATA, NVMe PCIe 24 x 1.8” SSD – up to 23TB via 0.96TB hot-plug SATA SSD 10 x 2.5” – up to 18TB via 1.8TB hot-plug SAS HDD 8 x 2.5” – up to 14TB via 1.8TB hot-plug SAS HDD |
| Warranty | 3 Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5x10 NBD On-site |
| Processor | Intel® Xeon® E5-2640 v4 2.4GHz,25M Cache,8.0GT/s QPI,Turbo,HT,10C/20T (90W) Max Mem 2133MHz |
| Drive Bays | Internal hard drive bay and hot-plug backplane: Up to 24 x 1.8” SATA SSD Up to 10 x 2.5” HDD: SAS, SATA, nearline SAS SSD: SAS, SATA, Up to 4 NVMe PCIe Up to 8 x 2.5” HDD: SAS, SATA, nearline SAS SSD: SAS, SATA |
| Hard Drive | 1TB Hard Drive |
| Management | Systems management: IPMI 2.0 compliant; Dell OpenManage Essentials; Dell OpenManage Mobile; Dell OpenManage Power Center Dell OpenManage Integrations: Dell OpenManage Integration Suite for Microsoft System Center Dell OpenManage Integration for VMware® vCenter Dell OpenManage Connections: HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management Dell OpenManage for Oracle Database Manager Remote management iDRAC8 with Lifecycle Controller, iDRAC8 Express (default) iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade)16GB vFlash media (upgrade) iDRAC Quick Sync |
| Availability | ECC memory Hot-plug hard drives Hot-plug redundant cooling Hot-plug redundant power Internal Dual SD Module Single Device Data Correction (SDDC) Spare Rank Support for high availability clustering and virtualization Proactive systems management alerts iDRAC8 with Lifecycle Controller |
| Customizable | Intel® Xeon® E5-2640 v4, Optional Operating System, 32GB Memory, 2TB SAS H330 Hard Drive and a 3 year ProSupport Warranty |
| Communications | Broadcom® 5719 quad-port 1Gb NIC Broadcom 5720 dual-port 1Gb NIC Broadcom 57810 dual-port 10Gb DA/SFP+ CNA Broadcom 57810 dual-port 10Gb Base-T network adapter Intel® Ethernet I350 dual-port 1Gb server adapter Intel Ethernet I350 quad-port 1Gb server adapter Intel Ethernet X540 dual-port 10GBASE-T server adapter Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA Emulex LPe16000B, single-port 16Gb Fibre Channel HBA Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height |
| Product Series | Dell PowerEdge R630 Server |
| Operating System | No Operating System |
| RAID Controllers | Internal: PERC S130 (SW RAID), PERC H330 PERC H730 PERC H730P External: PERC H830 External HBAs (non-RAID): 12Gbps SAS HBA |
| Network Controller | 4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb |
| Embedded Hypervisor (Optional) | Microsoft® Windows Server® 2012, with Hyper-V® VMware® vSphere® ESXi™ Citrix® XenServer® |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this PowerEdge R630, Dell PowerEdge Rack Server, Intel Xeon E5-2640 v4/32GB Memory/2TB SAS H330 (pe_r630_1337_c) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This PowerEdge R630, Dell PowerEdge Rack Server, Intel Xeon E5-2640 v4/32GB Memory/2TB SAS H330 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the PowerEdge R630, Dell PowerEdge Rack Server, Intel Xeon E5-2640 v4/32GB Memory/2TB SAS H330 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the pe_r630_1337_c.
