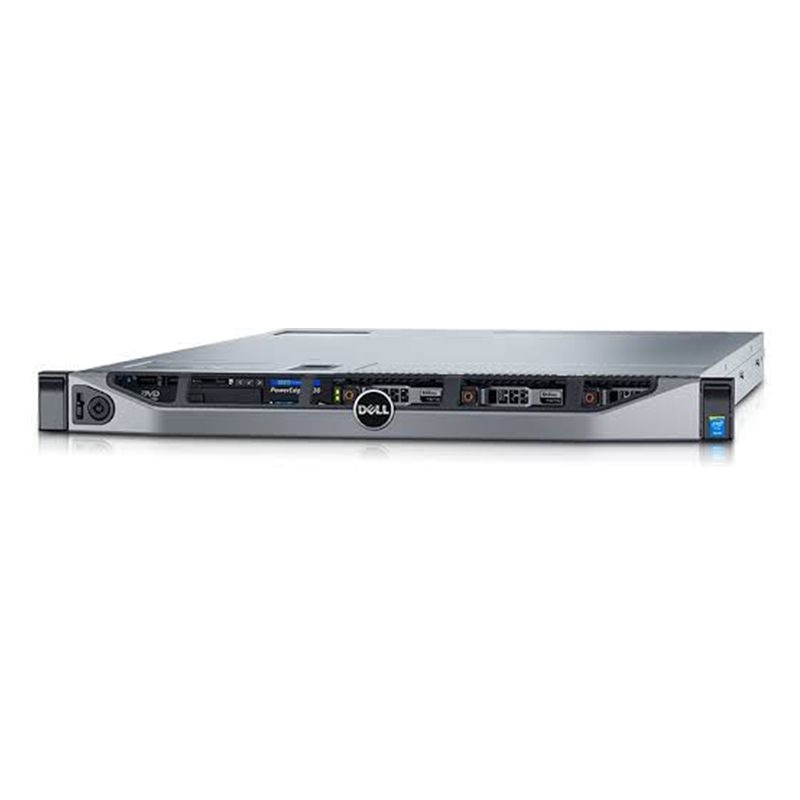

PowerEdge R630, Dell Rack Server, Intel Xeon E5-2603 v4/4GB Memory/300GB SAS HDD

SKU: pe_r630_1337 · MPN: pe_r630_1337 · Category: Servers

PowerEdge R630, Dell Rack Server, Intel Xeon E5-2603 v4/4GB Memory/300GB SAS HDD
$1,571.04
In Stock • 10 units

Fully Customizable: Intel® Xeon® E5-2603 v4, Optional Operating System, 4GB Memory, 300GB SAS Hard Drive and a 3 Year Warranty

View Rack Servers Products

Specifications

ModelDell PowerEdge R630 Xeon E5-2603 v4 4GB 300GB SAS H330 Rack Server
Power1100W AC, 86 mm (Platinum) 1100W DC, 86 mm 750W AC, 86 mm (Platinum) 750W AC, 86 mm (Titanium) 495W AC, 86 mm (Platinum)
Slots2 CPUs, 3 slots Slot 1: Half length, half height - PCIe 3.0 x16 (x16 connector) Slot 2: Half length, half height - PCIe 3.0 x8 (x16 connector) Slot 3: Half length, half height - PCIe 3.0 x16 (x16 connector) 2CPUs, 2 slots Slot 1: Half length, half height - PCIe 3.0 x16 (x16 connector) Slot 2: 3/4 length, full height - PCIe 3.0 x16 (x16 connector) 1CPU, 2 slots Slot 1: Half length, half height - PCIe 3.0 x8 (x16 connector) Slot 2: 3/4 length, full height - PCIe 3.0 x16 (x16 connector Dedicated RAID card slot
Memory4GB RDIMM, 2400MT/s, Single Rank, x8 Data Width
ChassisThe 24 x 1.8” drive and 10 x 2.5” drive configurations have the following dimensions: Form Factor: 1U H: 4.28 cm (1.68 in.) x W: 48.23 cm (18.98 in.) x D: 75.51 cm (29.72 in.) The 8 x 2.5” drive configuration has the following dimensions: Form Factor: 1U H: 4.28 cm (1.68 in.) W: 48.23 cm (18.98 in.) D: 70.05 cm (27.57 in.)
ChipsetIntel C610 series chipset
StorageHDD: SAS, SATA, nearline SAS SSD: SAS, SATA, NVMe PCIe 24 x 1.8” SSD – up to 23TB via 0.96TB hot-plug SATA SSD 10 x 2.5” – up to 18TB via 1.8TB hot-plug SAS HDD 8 x 2.5” – up to 14TB via 1.8TB hot-plug SAS HDD
Warranty3 Year Basic Hardware Warranty Repair, 5X10 HW-Only, 5x10 NBD On-site
ProcessorIntel® Xeon® E5-2603 v4 1.7GHz,15M Cache,6.4GT/s QPI,6C/6T (85W) Max Mem 1866MHz
Drive BaysInternal hard drive bay and hot-plug backplane: Up to 24 x 1.8” SATA SSD Up to 10 x 2.5” HDD: SAS, SATA, nearline SAS SSD: SAS, SATA, Up to 4 NVMe PCIe Up to 8 x 2.5” HDD: SAS, SATA, nearline SAS SSD: SAS, SATA
Hard Drive300GB Hard Drive
ManagementSystems management: IPMI 2.0 compliant; Dell OpenManage Essentials; Dell OpenManage Mobile; Dell OpenManage Power Center Dell OpenManage Integrations: Dell OpenManage Integration Suite for Microsoft System Center Dell OpenManage Integration for VMware® vCenter Dell OpenManage Connections: HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management Dell OpenManage for Oracle Database Manager Remote management iDRAC8 with Lifecycle Controller, iDRAC8 Express (default) iDRAC8 Enterprise (upgrade) 8GB vFlash media (upgrade)16GB vFlash media (upgrade) iDRAC Quick Sync
AvailabilityECC memory Hot-plug hard drives Hot-plug redundant cooling Hot-plug redundant power Internal Dual SD Module Single Device Data Correction (SDDC) Spare Rank Support for high availability clustering and virtualization Proactive systems management alerts iDRAC8 with Lifecycle Controller
CommunicationsBroadcom® 5719 quad-port 1Gb NIC Broadcom 5720 dual-port 1Gb NIC Broadcom 57810 dual-port 10Gb DA/SFP+ CNA Broadcom 57810 dual-port 10Gb Base-T network adapter Intel® Ethernet I350 dual-port 1Gb server adapter Intel Ethernet I350 quad-port 1Gb server adapter Intel Ethernet X540 dual-port 10GBASE-T server adapter Mellanox® ConnectX®-3 dual-port 10Gb Direct Attach/SFP+ server network adapter Mellanox ConnectX-3 dual-port 40Gb Direct Attach/QSFP server network adapter Emulex® LPE 12000, single-port 8Gb Fibre Channel HBA Emulex LPE 12002, dual-port 8Gb Fibre Channel HBA Emulex LPe16000B, single-port 16Gb Fibre Channel HBA Emulex LPe16002B, dual-port 16Gb Fibre Channel HBA Emulex OneConnect OCe14102-U1-D 2-port PCIe 10GbE CNA QLogic® 2560, single-port 8Gb Optical Fibre Channel HBA QLogic 2562, dual-port 8Gb Optical Fibre Channel HBA Qlogic 2660, single-port 16GB, Fibre Channel HBA, full height Qlogic 2662, dual-port 16GB, Fibre Channel HBA, full height
Product SeriesDell PowerEdge R630 Server
Operating SystemNo Operating System
RAID ControllersInternal: PERC S130 (SW RAID), PERC H330 PERC H730 PERC H730P External: PERC H830 External HBAs (non-RAID): 12Gbps SAS HBA
Fully CustomizableIntel® Xeon® E5-2603 v4, Optional Operating System, 4GB Memory, 300GB SAS Hard Drive and a 3 Year Warranty
Network Controller4 x 1Gb, 2 x 1Gb + 2 x 10Gb, 4 x 10Gb
Embedded Hypervisor (Optional)Microsoft® Windows Server® 2012, with Hyper-V® VMware® vSphere® ESXi™ Citrix® XenServer®
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this PowerEdge R630, Dell Rack Server, Intel Xeon E5-2603 v4/4GB Memory/300GB SAS HDD (pe_r630_1337) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This PowerEdge R630, Dell Rack Server, Intel Xeon E5-2603 v4/4GB Memory/300GB SAS HDD includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the PowerEdge R630, Dell Rack Server, Intel Xeon E5-2603 v4/4GB Memory/300GB SAS HDD compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the pe_r630_1337.
