StarTech.com 3 Port PCI Adapter Card interface cards/adapter

Brand: StarTech.com · SKU: PCI312PUSB · MPN: PCI312PUSB · Category: Components

StarTech.com 3 Port PCI Adapter Card interface cards/adapter
Request for Quote
Backorder

StarTech.com 3 Port PCI Adapter Card, PCI, Brown, NEC D720101GJ, 100 W, 66.7 mm, 81.2 mm. StarTech.com 3 Port PCI Adapter Card interface cards/adapter (part number PCI312PUSB) is an enterprise components product available from Server Tech Central. Key specifications include depth 81.2 mm, width 66.7 mm, height 0 mm, weight 200 g, chipset NEC D720101GJ, i/o ports 4xUSB 1xLP4 4xJumper, host interface PCI, ports quantity 3. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.

View Components Products

Specifications

Depth81.2 mm
Width66.7 mm
Height0 mm
Weight200 g
ChipsetNEC D720101GJ
I/O ports4xUSB 1xLP4 4xJumper
Host interfacePCI
Ports quantity3
Product colourBrown
Mac compatibilityNo
Data transfer rate480 Mbit/s
Quantity outer carton50 pc(s)
USB 2.0 ports quantity3
Connectivity technologyWireless
Power consumption (typical)100 W
Compatible operating systemsWindows 2000/ME/2003/XP/Vista
Warranty3-Year Warranty
Weight200 g
Dimensions66.7 mm x 81.2 mm x 0 mm

Product Description

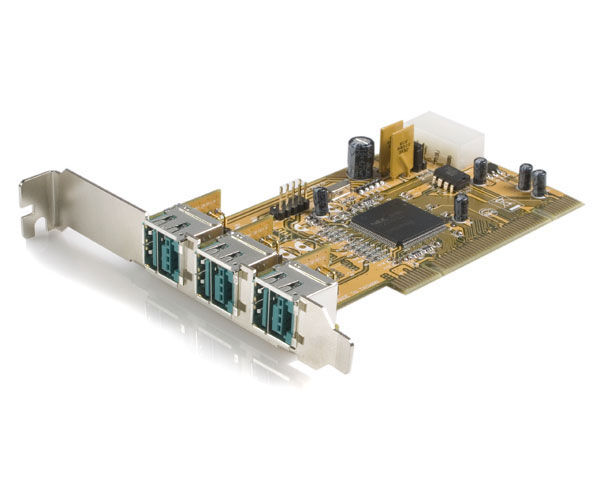

This PCI based Powered USB Adapter Card adds three Powered USB (USB PlusPower) ports to any computer, through an available PCI Slot. Drawing power from either the PCI slot or the computer power supply, the Powered USB adapter card provides up to 3A of current to each connected device, allowing for up to three Powered USB devices to be installed at a time. Plus, this PCI Powered USB Adapter Card can be connected to StarTech.com's 2 Port 12V/24V Powered USB Adapter Card (PUSBADAP), to create two additional Powered USB ports, without using an extra PCI slot. - 3 external 12V Powered USB Connectors - Powered from either the PCI slot or the Power Supply of the P.C. with a standard LP4 connection - Supplies power and data signals over hot-plugging USB cable - Can be linked to a daughter board or stand alone - Selectable power input - Backwards compatible with USB 1.1 and 2.0 standards and allow for hot-plugging - No external power is required - Cable locking mechanism - Two internal USB connections can be used to expanded to the daughter board by connecting the USB header on the Main Board to the USB header on the daughter board using a USB cable - Maximum data transfer rate: 480 Mbps

Key Features

StarTech.com 3 Port PCI Adapter Card. Host interface: PCI. Product colour: Brown. Chipset: NEC D720101GJ. Power consumption (typical): 100 W. Width: 66.7 mm, Depth: 81.2 mm, Weight: 200 g
