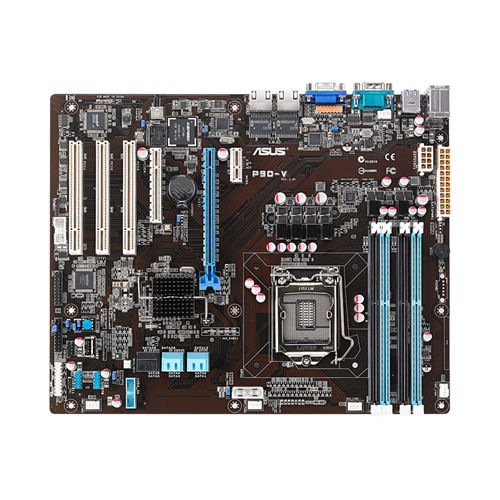

ASUS P9D-V motherboard Intel® C224 ATX
Brand: ASUS · SKU: P9D-V · MPN: P9D-V · Category: Components
ASUS P9D-V, Intel, Intel® Celeron®, Intel® Pentium®, DDR3-SDRAM, DIMM, ECC, 1333,1600 MHz. ASUS P9D-V motherboard Intel® C224 ATX (part number P9D-V) is an enterprise components product available from Server Tech Central. Key specifications include pci slots 3, component for PC, tpm connector Yes, memory slots type DIMM, power source type ATX, ecc сompatibility ECC, usb 2.0 connectors 2, motherboard chipset Intel® C224. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| PCI slots | 3 |
|---|---|
| Component for | PC |
| TPM connector | Yes |
| Memory slots type | DIMM |
| Power source type | ATX |
| ECC сompatibility | ECC |
| USB 2.0 connectors | 2 |
| Motherboard chipset | Intel® C224 |
| PS/2 ports quantity | 1 |
| Maximum UDIMM memory | 32 GB |
| Number of memory slots | 4 |
| Processor manufacturer | Intel |
| Supported memory types | DDR3-SDRAM |
| USB 2.0 ports quantity | 2 |
| Motherboard form factor | ATX |
| Number of SATA connectors | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Motherboard chipset family | Intel |
| VGA (D-Sub) ports quantity | 1 |
| Chassis intrusion connector | Yes |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Supported memory clock speeds | 1333,1600 MHz |
| Intel Rapid Storage Technology | Yes |
| PCI Express x8 (Gen 2.x) slots | 1 |
| Warranty | 3-Year Warranty |
Product Description
Combat Model with Advanced I/O Design The ASUS P9D-V is the latest ASUS UP serverboard, designed around the Intel® Denlow platform as an attractive entry model that provides a highly cost and power-efficient option. The P9D-V uses the Intel® C224 chipset, featuring three legacy PCI slots, dual server-class Intel® Ethernet, and digital power delivery. It is ideal for SMB, web, printer, and file servers, or any other entry-level server application. Designed to support three legacy PCI Devices Besides the latest PCI-E technology, P9D-V keeps up to 3 legacy PCI slots on board which can fulfill various customers’ requirements. Customers can move their existing legacy PCI add-on cards to P9D-V, and still benefit from up-to-date Intel® Xeon® E3-1200 v3 Processor Family and DDR3 memory technology to their solutions. Dual Intel® I210AT Gigabit Ethernet The ASUS P9D-V ships with dual server-class Intel® Ethernet ports with the I210AT controllers, which doubles queues compared to previous-generation Intel® 82574L controllers. This is better for virtualization applications. In addition, the dual LAN teaming ports provide high networking bandwidth with load balance and fault tolerance functions. This design greatly reduces data processing bottlenecks during network traffic. High power efficiency with digital power control Digital CPU power controls work perfectly together to match digital power signal (SVID) requests from the CPU, with ultra-fast sensing and response efficiently delivering precision power. Accurate delivery reduces waste, and provides more stable voltage. P9D-V VR power efficiency reaches an impressive 90%. Most cost-saving for customers The P9D-V is designed for readily-available chassis, with a standard ATX form factor, and compatibility with desktop power supplies. Customers can upgrade to the new Denlow platform with just the P9D-V while keeping many existing components, thus protecting their investment. Meanwhile, the product is power saving with low power-consuming Intel Xeon processor, and therefore requires lower thermal solution cost. Advanced I/O design The ASUS P9D-V supports one PCI-E x16, Gen3 x16 link with professional VGA supported. Besides, P9D-V is built to support up to 4 USB 3.0 ports. Built to connect easily with next generation components and peripherals, USB 3.0 transfers data 10X faster and is also backward compatible with USB 2.0. Server management: ASWM Enterprise ASWM Enterprise software provides one-to-multiple centralized management, including BIOS flash, remote control, and power control, all through a colorful and informative graphical interface. SATA DOM (Disk on Module) ready A SATA DOM is a flash drive simulating a hard disc which can be used without additional software or drivers. It is particularly helpful within embedded computing systems or thin clients. ASUS-exclusive design adds an onboard 4-pin power connector and USB header to make SATA DOM installation simple and easy. Friendly Design for front I/O, front VGA An accessible rear power button is reserved onboard for use as front panel ports when reversing the serverboard. An extra 15-pin VGA header features front-panel monitor connectivity, helping customers with greater flexibility. These designs provide flexible I/O integration for users to fit in various computing environments.
Key Features
ASUS P9D-V. Processor manufacturer: Intel, Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Memory slots type: DIMM, ECC сompatibility: ECC. Supported storage drive interfaces: SATA II, SATA III. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel. Maximum UDIMM memory: 32 GB
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P9D-V motherboard Intel® C224 ATX (P9D-V) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P9D-V motherboard Intel® C224 ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P9D-V motherboard Intel® C224 ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P9D-V.
