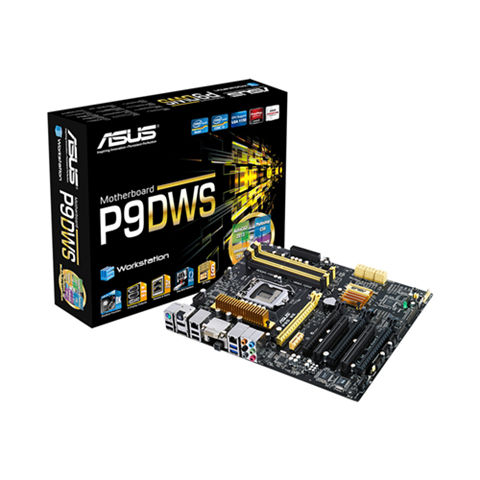

ASUS P9D WS Intel® C226 LGA 1150 (Socket H3) ATX

Specifications

Product Description

Ultimate Workstation Design The P9D WS features Intel's Socket 1150 with the C226 chipset specially-designed for workstations. ISV application testing and certification with integrated graphics cores on E3-12x5 v3 processors are perfect for entry-level workstations and software such as Autodesk® AutoCAD 2013 and Inventor 2012. The P9D WS is your best choice for a DIY workstation build that rivals top-tier pre-built workstations. ASUS Dr. Power Detect, diagnose, and monitor power supply health ASUS Dr. Power: LED messages clearly indicate any relevant power issues in the event your system fails to boot. Additionally, power supply health auto-detection helps prevent sudden system shutdown and provides warnings should power delivery be insufficient. Multiple displays Three Times the work efficiency: Without extra VGA card needed, the P9D WS gives users the ability to multitask on up to the independent displays through DisplayPort, HDMI and DVI-I connectors. Built-in Dual Intel Server-Class Gigabit LAN The latest server class built-in dual Intel® I210 Gigabit LAN Built-in Dual Intel Server-Class Gigabit LAN: For more reliable networking, the P9D WS features the latest server class built-in dual Intel® Gigabit LAN. This leads to lower CPU utilization and temperature, achieving outstanding performance as well as better support for diverse operating systems. Diverse CPU and Memory Types Both Intel® E3-1200/12x5 v3 series server/workstation processors and 4th generation Core™ i3 desktop processors are supported. Users can also choose DDR3 unbuffered non-ECC memory, widely available on the market, or more stable and reliable DDR3 unbuffered ECC memory. The P9D WS provides flexible CPU and memory options to meet diverse needs. Server-level Compatibility with RAID card and Lan card The P9D WS provides complete compatibility with RAID and LAN cards.Users enjoy a wider selection of devices and higher reliability. As a workstation motherboard that puts an emphasis on system integration, offering the benefit of greater confidence and convenience. AI Suite III ASUS AI Suite III offers a brand new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities. USB 3.0 Boost ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) in Windows 8. USB transmission speeds increase by up to 170%, adding to already fast USB 3.0 performance. USB 3.0 Boost automatically accelerates data rates for compatible USB 3.0 peripherals automatically and without any user-defined settings. USB BIOS Flashback Hardware-level USB BIOS Flashback allows users to update to new UEFI BIOS versions even without a CPU or DRAM installed on the motherboard. Just plug in a USB flash drive containing the BIOS file, and press the BIOS Flashback button for 3 seconds with the power supply connected. UEFI BIOS Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features a new look with more intuitive functions to perfect your BIOS experience. Network iControl With a single-click, important applications get their data and network bandwidth prioritized over other programs. You can prioritize favorite applications easily by configuring profiles through the intuitive user interface. Within profiles, programs can be re-scheduled to run in a specific time to avoid network congestion and long waits on downloads. This is the most intuitive network bandwidth control ever. Fan Xpert2 Hardware-level ASUS Fan Xpert 2 provides the most customizable settings for an even cooler and quieter computing environment. Upgraded with Fan Auto Tuning mode, it enables tailored fan speed settings for each CPU and chassis fan with exclusive automatic fan speed detection, which scans through each fan to run at specific settings based on different criteria, acheiving the best balance of cooling performance and low noise. Fan Xpert 2 also includes an RPM Fixed Mode for users who wish to reduce noise levels to near 0dB with highly specific fan speed control. It reacts to system loads for greater control. Socket LGA1150 for Intel® 4th Generation Core i3 and Xeon E3-1200/12x5 v3 Processors The latest Intel® 4th generation Core™ i3 and Xeon E3-1200/12x5 v3 series processors in the LGA1150 package are supported, with memory and PCI Express controllers integrated to enable 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0 lanes. This provides great graphics performance. Intel® 4th generation Core™ i3 and Xeon® E3-1200/12x5 v3 series processors are among the most powerful and energy efficient CPUs in the world. C226 The Intel® C226 Express is the latest single-chipset design, supporting the new socket LG

Key Features

ASUS P9D WS. Processor manufacturer: Intel, Processor socket: LGA 1150 (Socket H3), Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA, RAID levels: 0, 1, 5, 10. Parallel processing technology support: 4-Way CrossFireX, Maximum graphics card memory: 1024 MB, Maximum resolution: 4000 x 2000 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel I210
