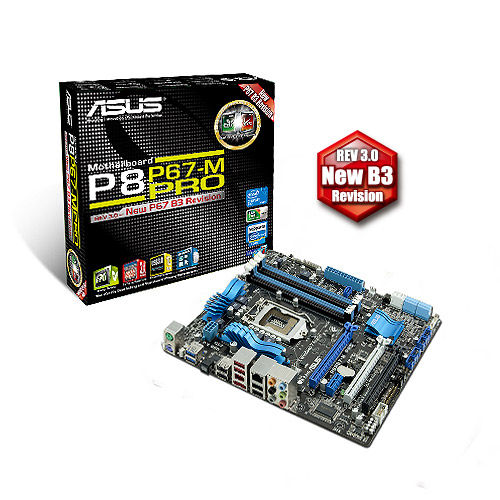

ASUS P8P67-M PRO Intel® P67 LGA 1155 (Socket H2) micro ATX
Brand: ASUS · SKU: P8P67-M PRO (REV 3.0) · MPN: P8P67-M PRO (REV 3.0) · Category: Components
ASUS P8P67-M PRO, Intel, LGA 1155 (Socket H2), Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, 32 GB, Non-ECC, 1066,1333,1600,1866,2133,2200 MHz. ASUS P8P67-M PRO Intel® P67 LGA 1155 (Socket H2) micro ATX (part number P8P67-M PRO (REV 3.0)) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 244 mm, bios type AMI, audio chip Realtek ALC892, raid levels 0, 1, 5, 10, acpi version 2.0a, component for PC, lan controller Realtek RTL8111E. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 244 mm |
| BIOS type | AMI |
| Audio chip | Realtek ALC892 |
| RAID levels | 0, 1, 5, 10 |
| ACPI version | 2.0a |
| Component for | PC |
| LAN controller | Realtek RTL8111E |
| Cables included | SATA |
| S/PDIF out port | Yes |
| BIOS memory size | 32 Mbit |
| Drivers included | Yes |
| Processor socket | LGA 1155 (Socket H2) |
| CPU fan connector | Yes |
| Headphone outputs | 6 |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| Parallel connector | Yes |
| USB 2.0 connectors | 4 |
| Motherboard chipset | Intel® P67 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| PCI Express x1 slots | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 244 mm |
Product Description
LGA1155 socket for Intel® Second Generation Core™ i7/ Core™ i5/ Core™ i3 Processors This motherboard supports the Intel® second generation Core™ i7 / Core™ i5 / Core™ i3 processors in LGA1155 package with memory and PCI Express controllers integrated to support 2-channel (4 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel® second generation Core™ i7 / Core™ i5 / Core™ i3 processors are among the most powerful and energy efficient CPUs in the world. Intel® P67 Express Chipset The Intel® P67 Express Chipset is the latest single-chipset designto support the new 1155 socket Intel® Core™ i7 / Core™ i5 / Core™ i3 second generation processors. It uses serial point-to-point links, which allows increased bandwidth and stability, and provides an improved performance. It also provides two SATA 6.0 Gb/s and four SATA 3.0 Gb/s ports for faster data retrieval at double the bandwidth of current bus systems. Dual-Channel DDR3 2200(O.C.) / 2133(O.C.) / 1866(O.C.) / 1600(O.C.) / 1333 / 1066MHz support The motherboard supports DDR3 memory that features data transfer rates of 2200(O.C.) / 2133(O.C.) / 1866(O.C.) / 1600(O.C.) / 1333 / 1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance. Quad-GPU SLI and Quad-GPU CrossFireX Support! Flexible Multi-GPU solutions, Your Weapon of Choice! P8P67-M PRO brings multi-GPU configurations through both SLI™ and CrossFireX. This motherboard features the powerful Intel® P67 platform, optimizing PCIe allocation in multiple GPU setups. Expect a brand new gaming sensation like you’ve never experienced before! TPU Unleash your performance with ASUS’ simple onboard switch or AI Suite II utility. ASUS Auto tuning feature can intelligently optimize the system for fast, yet stable clock speeds, and the TurboV gives you the freedom to adjust CPU frequencies and ratios to optimize performance under varied system conditions. EPU Tap into the world’s first real time PC power saving engine through a simple onboard switch or AI Suite II utility. Get total system power savings by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity. AI Suite II With its fast user-friendly interface, ASUS AI Suite II consolidates all the exclusive ASUS features into one simple to use software package. It allows you to supervise overclocking, energy management, fan speed control, voltage and sensor readings. This all-in-one software offers diverse and ease to use functions, with no need to switch back and forth between different utilities. Auto Tuning Auto Tuning is an intelligent tool that automates overclocking to achieve a total system level up. This tool also provides stability testing. Even O.C. beginners can achieve extreme yet stable overclocking results with Auto Tuning!
Key Features
ASUS P8P67-M PRO. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7. Maximum internal memory: 32 GB, ECC сompatibility: Non-ECC, Supported memory clock speeds: 1066,1333,1600,1866,2133,2200 MHz. RAID levels: 0, 1, 5, 10. Parallel processing technology support: Quad-GPU CrossFireX, Quad-GPU SLI. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8111E, Networking features: Gigabit Ethernet
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P8P67-M PRO Intel® P67 LGA 1155 (Socket H2) micro ATX (P8P67-M PRO (REV 3.0)) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P8P67-M PRO Intel® P67 LGA 1155 (Socket H2) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P8P67-M PRO Intel® P67 LGA 1155 (Socket H2) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P8P67-M PRO (REV 3.0).
