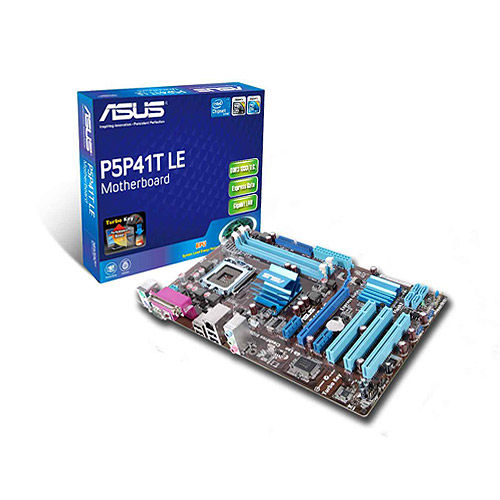

ASUS P5P41T-LE motherboard Intel® G41 LGA 775 (Socket T) ATX
Brand: ASUS · SKU: P5P41T-LE · MPN: P5P41T-LE · Category: Components
ASUS P5P41T-LE, Intel, LGA 775 (Socket T), Intel® Celeron®, Intel® Pentium® Dual-Core, 800,1066,1333 MHz, 8 GB, Dual-channel. ASUS P5P41T-LE motherboard Intel® G41 LGA 775 (Socket T) ATX (part number P5P41T-LE) is an enterprise components product available from Server Tech Central. Key specifications include depth 183 mm, width 305 mm, bios type AMI, pci slots 3, audio chip Realtek ALC662, acpi version 2.0a, component for PC, memory channels Dual-channel. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 183 mm |
|---|---|
| Width | 305 mm |
| BIOS type | AMI |
| PCI slots | 3 |
| Audio chip | Realtek ALC662 |
| ACPI version | 2.0a |
| Component for | PC |
| Memory channels | Dual-channel |
| BIOS memory size | 64 Mbit |
| Drivers included | Yes |
| Processor socket | LGA 775 (Socket T) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| COM ports quantity | 1 |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 2 |
| Motherboard chipset | Intel® G41 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 2 |
| PCI Express x1 slots | 2 |
| S/PDIF out connector | Yes |
| Audio output channels | 5.1 channels |
| PCI Express x16 slots | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 183 mm |
Product Description
Intel® Core™2 Extreme/Core™2 Quad/Core™2 Duo CPU support This motherboard supports Intel® LGA775 Core™ 2 Extreme / Core2 Quad/ Core2 Duo processors, which are excellent for multitasking, multimedia, and enthusiastic gamers with 1333/ 1066/ 800 MHz FSB. This motherboard also supports Intel® CPUs in the 45nm manufacturing process. Intel® G41 Chipset The Intel® G41 Express Chipset is designed to support dual-channel DDR3 1333 (overclocking)/ 1066 /800 architecture, 1333/1066/800 Front Side Bus (FSB), PCIe 1.1, and mutli-core CPUs. It especially includes Intel® Fast memory bandwidth and reduces the latency of the memory accesses. Dual channel DDR3 1333 (O.C.)/1066/800 support This motherboard supports DDR3 memory that features data transfer rates of 1333 (O.C.)/1066/800 MHz providing great performance for 3D graphics and other memory-demanding applications. Gigabit Lan The onboard LAN controller is a highly integrated Gb LAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems. SATA 3Gb/s This motherboard supports hard drives based on the Serial ATA (SATA) 3Gb/s storage specifications, delivering enhanced scalability and doubling the bus bandwidth for high-speed data saving and retrieval. ASUS EPU The ASUS EPU (Energy Processing Unit) provides total system power management by detecting current PC loadings and intelligently moderating power in real-time. It automatically provides the most appropriate power usage to save power and money. Turbo Key ASUS Turbo Key allows you to turn the PC power button into an overclocking button. After you easy setup, Turbo Key boosts performances without interrupting ongoing work or games, simply through pressing the button. Express Gate Express Gate™ is an ASUS exclusive OS that provides you with quick access to the Internet and key applications before entering Windows®. EZ Flash2 ASUS EZ Flash 2 is a utility that allows you to update the BIOS without using an OS-based utility. CrashFree BIOS 3 ASUS CrashFree BIOS 3 is an auto-recovery tool that allows you to restore a corrupted BIOS file using the bundled support DVD or USB disk that contains the latest BIOS file. ASUS AI NET2 ASUS AI NET2 remotely detects the cable connection immediately after turning on the system, and any faulty cable connections are reported back up to 100 meters at 1 meter accuracy. ASUS Q-Fan ASUS Q-Fan technology intelligently and automatically adjusts CPU fan speeds according to system load and temperature, enabling users to work in a distraction-free environment with minimal noise. C.P.R.(CPU Parameter Recall) The BIOS C.P.R. feature automatically restores the CPU default settings when the system hangs due to overclocking failure. C.P.R. eliminates the need to open the system chassis and clear the RTC data. Simply shut down and reboot the system, and the BIOS automatically restores the CPU parameters to their default settings. MyLogo2 This feature allows you to convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen. GreenASUS The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
Key Features
ASUS P5P41T-LE. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T), Compatible processor series: Intel® Celeron®, Intel® Pentium® Dual-Core. Maximum internal memory: 8 GB, Memory channels: Dual-channel, ECC сompatibility: Non-ECC. Ethernet interface type: Gigabit Ethernet, Networking features: Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset: Intel® G41. BIOS type: AMI, BIOS memory size: 64 Mbit, ACPI version: 2.0a
