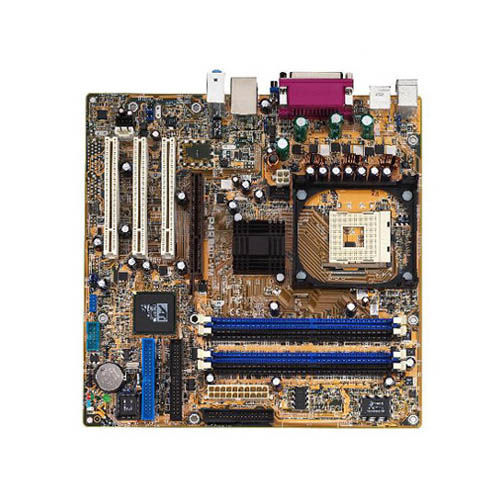

ASUS P4R800-VM motherboard Socket 478 micro ATX
Brand: ASUS · SKU: P4R800-VM · MPN: P4R800-VM · Category: Components
ASUS P4R800-VM, Intel, Socket 478, Intel® Celeron®, Intel® Pentium® 4, DDR-SDRAM, 4 GB, DIMM. ASUS P4R800-VM motherboard Socket 478 micro ATX (part number P4R800-VM) is an enterprise components product available from Server Tech Central. Key specifications include depth 245 mm, width 245 mm, bios type AMI, pci slots 3, cooling type Passive, ethernet lan Yes, flash memory 4 MB, component for PC. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 245 mm |
|---|---|
| Width | 245 mm |
| BIOS type | AMI |
| PCI slots | 3 |
| Cooling type | Passive |
| Ethernet LAN | Yes |
| Flash memory | 4 MB |
| Component for | PC |
| Microphone in | Yes |
| CD/AUX audio in | Yes |
| Memory channels | Dual-channel |
| S/PDIF out port | Yes |
| Processor socket | Socket 478 |
| Headphone outputs | 1 |
| Memory slots type | DIMM |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 1 |
| PS/2 ports quantity | 2 |
| Audio output channels | 5.1 channels |
| Number of memory slots | 4 |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
| Supported memory types | DDR-SDRAM |
| Warranty | 3-Year Warranty |
| Dimensions | 245 mm x 245 mm |
Product Description
Highest performance all-in-one P4 platform This ATI Radeon-based motherboard comes with dual-channel DDR400 memory for great performance. AGP 8X standard and integrated ATI Radeon 9200 graphics elevate your video experience. Together with onboard LAN and audio, the P4R800-VM is a quality solution you can count on. ATI RADEON 9100 IGP chipset ASUS P4R800-VM delivers most advanced features indispensable for an eligible PC, including support for 3.2GHz+ P4 CPU on 800MHz FSB, Dual DDR400 memory, Intel Hyper Threading Technology, etc. With embedded ATI VGA engine, P4R800-VM owns most powerful graphics performance ever shown up on integrated MB solutions. Integrated ATI RADEON 9200-based GPU ATI RADEON 9200 graphic core with Max. 128MB shared display memory; TV out is supported via separate module (AV/S card). Dual-channel DDR400 Dual-channel DDR technology doubles the bandwidth of your system memory and hence boost the system performance to out perform any memory existing solutions in the market. System bottlenecks are eliminated with balanced architecture and peak bandwidths up to 6.4GB/s. AGP 8X AGP8X (AGP 3.0) is the next generation VGA interface specification that enables enhanced graphics performance with high bandwidth speeds up to 2.12GB/s. With a bus of 533MT/s, AGP8X is twice as fast as AGP4X. ASUS MyLogo2 You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen. ASUS EZ Flash With ASUS EZ Flash, you can update BIOS directly from the BIOS setup menu. No more DOS-based flash utility and bootable diskette required. S/PDIF out on back I/O port Enjoy complete 5.1 audio with S/PDIF out port for easy connectivity between your motherboard and Home Theater system. SoundMAX Digital Audio System The SoundMAX Digital Audio System is the industry's highest performance and most reliable audio solution for business professionals, audiophiles, musicians, and gamers. SoundMAX Digital Audio System can output 5.1 channel surround sound and features state-of-the-art DLS2 MIDI synthesizer with Yamaha DLSbyXG sound set, 5.1 Virtual Theater?and supports all major game audio technologies including Microsoft DirectX?8.0, Microsoft DirectSound 3D? A3D, MacroFX, ZoomFX, MultiDrive 5.1, A3D and Extreme AX.
Key Features
ASUS P4R800-VM. Processor manufacturer: Intel, Processor socket: Socket 478, Compatible processor series: Intel® Celeron®, Intel® Pentium® 4. Supported memory types: DDR-SDRAM, Maximum internal memory: 4 GB, Memory slots type: DIMM. Maximum graphics card memory: 128 MB. Ethernet interface type: Fast Ethernet. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD
