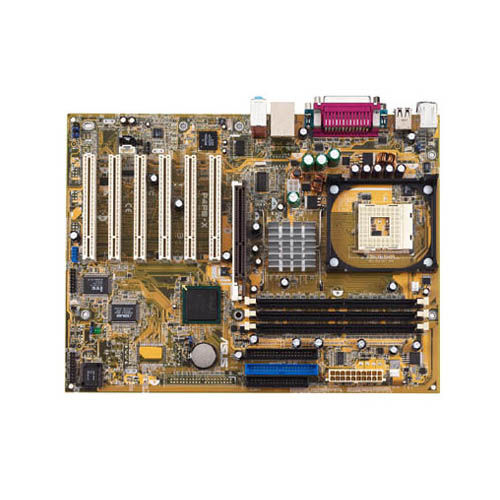

ASUS P4PE-X motherboard Socket 478 ATX
Brand: ASUS · SKU: P4PE-X · MPN: P4PE-X · Category: Components
ASUS P4PE-X, Intel, Socket 478, Intel® Celeron®, 2 GB, Non-ECC, 10/100Mbps. ASUS P4PE-X motherboard Socket 478 ATX (part number P4PE-X) is an enterprise components product available from Server Tech Central. Key specifications include depth 305 mm, width 229 mm, pci slots 6, agp x4 slots 1, microphone in Yes, drivers included Yes, processor socket Socket 478, cpu fan connector Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 305 mm |
|---|---|
| Width | 229 mm |
| PCI slots | 6 |
| AGP x4 slots | 1 |
| Microphone in | Yes |
| Drivers included | Yes |
| Processor socket | Socket 478 |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| Networking features | 10/100Mbps |
| PS/2 ports quantity | 2 |
| S/PDIF out connector | Yes |
| Serial ports quantity | 2 |
| Number of memory slots | 3 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 6 |
| Maximum internal memory | 2 GB |
| Motherboard form factor | ATX |
| Parallel ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Chassis intrusion connector | Yes |
| Compatible processor series | Intel® Celeron® |
| Warranty | 3-Year Warranty |
| Dimensions | 229 mm x 305 mm |
Product Description
P4PE-X (Intel 845PE) Series P4PE-X socket 478 Pentium 4 motherboard is based on the Intel 845PE chipset. Supporting idustry-leading technologies such as DDR400(O.C), and FSB800(O.C) and an abundance of advanced features, the all-new P4PE-X enables outstanding performance and value. (When you used a CPU with 800Mhz FSB, you need to install a PC3200 (400Mhz) DDR memory.) Satisfying Your Need for Speed Intel 845PE chipset P4PE-X supports FSB 800 MHz(O.C) up to 3.06 GHz+P4 CPU and Intel Hyper-Threading Technology. They raise the bar of PC industry and deliver a full value, high-performance solution for today's most demading tasks. C.P.R.(CPU Parameter Recall) When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Simply restart the system and the BIOS will automatically restore the CPU default setting for each parameter. ASUS EZ Flash With ASUS EZ Flash, you can update BIOS before entering operating system. No more DOS-based flash utility and bootable diskette required. Extreme Overclocking ASUS P4PE-X offers robust overclocking options to maximize your system performance - Flexible CPU Core Voltage Adjustments in 0.025V increments over defaults; - SFS (Stepless Frequency Selection) from 100Mhz up to 230MHz at 1MHz increanerts; - AGP/PCI Asynchronous Mode with FSB (fixed AGP/PCI frequencies); - ASUS propritary C.P.R.(CPU Parameter Recall). ASUS CrashFree BIOS CrashFree BIOS allows users to restore BIOS data from a floppy diskette even when BIOS code and data are corrupted druing upgrade or invaded by virus. Unlike other competing vendors' products, ASUS motherboards now enable users to enjoy this protection feature without the need to pay for an optional ROM. S/PDIF-out Port on back I/O (on audio model only) The P4PE-X's S/PDIF out function turns your computer into a high-end entertainment system with digital connectivity to powerful speaker systems. 6 Channel Audio The P4PE-X uses an onboard Audio CODEC that lets you enjoy high-quality 6-channel audio without having to buy advanced sound cards. 10/100 Mbps LAN Support Easy connectivity to your network or broadband connection with onboard LAN port, lets you take gaming online without having to buy an additional LAN card. USB 2.0 Ready USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backward compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data. Trend Micro PC-cillin 2002 anti-virus software Bonus! Free bundleTrend Micro?PC-cillin 2002 anti-virus software (OEM version).
Key Features
ASUS P4PE-X. Processor manufacturer: Intel, Processor socket: Socket 478, Compatible processor series: Intel® Celeron®. Maximum internal memory: 2 GB, ECC сompatibility: Non-ECC. Networking features: 10/100Mbps. Motherboard form factor: ATX, Power source type: ATX. Width: 229 mm, Depth: 305 mm
