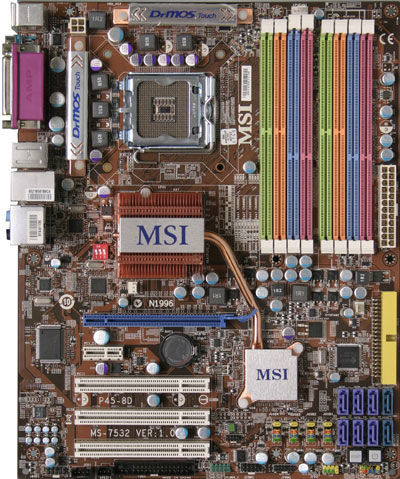

MSI P45-8D motherboard LGA 775 (Socket T) ATX
Brand: MSI · SKU: P45-8D · MPN: P45-8D · Category: Components
MSI P45-8D, Intel, LGA 775 (Socket T), 16 GB, Realtek RTL8111C, ATX, 7.1 channels. MSI P45-8D motherboard LGA 775 (Socket T) ATX (part number P45-8D) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 305 mm, pci slots 3, audio chip Realtek ALC888, microphone in Yes, lan controller Realtek RTL8111C, cd/aux audio in Yes, processor socket LGA 775 (Socket T). Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
| PCI slots | 3 |
| Audio chip | Realtek ALC888 |
| Microphone in | Yes |
| LAN controller | Realtek RTL8111C |
| CD/AUX audio in | Yes |
| Processor socket | LGA 775 (Socket T) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| USB 2.0 connectors | 4 |
| PS/2 ports quantity | 2 |
| PCI Express x1 slots | 1 |
| RAID controller type | SATA2 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| Serial ports quantity | 1 |
| Number of memory slots | 4 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 16 GB |
| Motherboard form factor | ATX |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 244 mm |
Product Description
-Help end-users upgrade CPU FSB directly. -Buy an essential CPU but want to reach higher performance. -Skip the complicated BIOS OC setting and enjoy the higher level CPU performance. -Excellent energy-saving capability and offers high-computing performance. -Provide superior energy-saving function and maintain an ultimate low temperature operation. -Comes with three incredible features. -Longer lifespan than electrolytic capacitors. -Endurable to operation under higher frequency & temperature. -Avoid exploding capacitors to cause mainboards failure. -A choke is an inductor responsible for storing power and regulates the current. -All shielded choke could reduce core power loss, lower EMI interference. -Store energy longer at higher frequency, achieving higher efficiency. -Hi-c CAP (Highly-conductive polymerized Capacitor). -High voltage derating / heat resistance → higher over-voltage / overclocking possibility. -Best stability & long lifespan → Average life 44800 Hrs @ 85℃ chamber. -Functions designed with button to be easy use. -Help power-users tweaking process in-chasis enviornment. -Onboard SATA ports are stacked on the mainboard to avoid mechanical issue with giant graphic cards like 8800 Ultra. -Key components status hardware monitor. -Monitor the Dual Core CPU each unit status. -Optimize System status define. -Auto speed up with system loading change.
Key Features
MSI P45-8D. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T). Maximum internal memory: 16 GB. LAN controller: Realtek RTL8111C. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC888. Width: 305 mm, Depth: 244 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI P45-8D motherboard LGA 775 (Socket T) ATX (P45-8D) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI P45-8D motherboard LGA 775 (Socket T) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI P45-8D motherboard LGA 775 (Socket T) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P45-8D.
