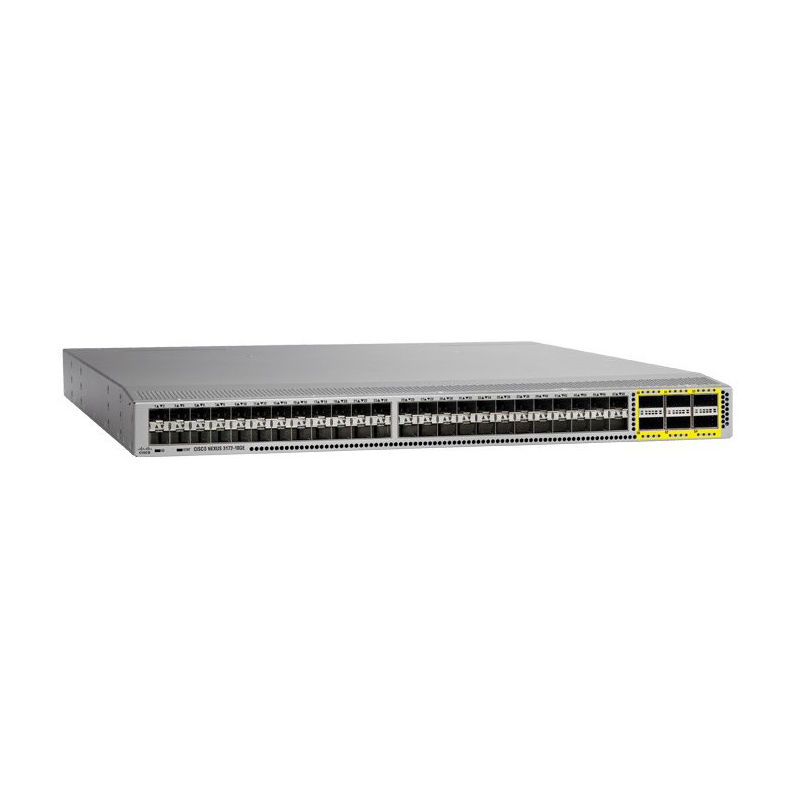

N3K-C3172PQ-XL, Cisco Nexus 3172PQ-XL Switch, 48xSFP+ ports/6xQSFP+ ports/Chassis

Brand: Cisco · SKU: N3K-C3172PQ-XL · MPN: N3K-C3172PQ-XL · Category: Networking

N3K-C3172PQ-XL, Cisco Nexus 3172PQ-XL Switch, 48xSFP+ ports/6xQSFP+ ports/Chassis
Request for Quote
In Stock • 10 units

Nexus 3172PQ-XL Chassis, 48 SFP+ and 6 QSFP+ ports

View Transceivers & Optics Products

Specifications

EMCImmunity: 鈼?nbsp; EN55024 鈼?nbsp; CISPR24 鈼?nbsp; EN300386 鈼?nbsp; KN24
RFCBGP 鈼?nbsp; RFC 1997: BGP Communities Attribute 鈼?nbsp; RFC 2385: Protection of BGP Sessions with the TCP MD5 Signature Option 鈼?nbsp; RFC 2439: BGP Route Flap Damping 鈼?nbsp; RFC 2519: Framework for Interdomain Route Aggregation 鈼?nbsp; RFC 2545: Use of BGPv4 Multiprotocol Extensions 鈼?nbsp; RFC 2858: Multiprotocol Extensions for BGPv4 鈼?nbsp; RFC 3065: Autonomous System Confederations for BGP 鈼?nbsp; RFC 3392: Capabilities Advertisement with BGPv4 鈼?nbsp; RFC 4271: BGPv4 鈼?nbsp; RFC 4273: BGPv4 MIB: Definitions of Managed Objects for BGPv4 鈼?nbsp; RFC 4456: BGP Route Reflection 鈼?nbsp; RFC 4486: Subcodes for BGP Cease Notification Message 鈼?nbsp; RFC 4724: Graceful Restart Mechanism for BGP 鈼?nbsp; RFC 4893: BGP Support for 4-Octet AS Number Space OSPF 鈼?nbsp; RFC 2328: OSPF Version 2 鈼?nbsp; 8431RFC 3101: OSPF Not-So-Stubby-Area (NSSA) Option 鈼?nbsp; RFC 3137: OSPF Stub Router Advertisement 鈼?nbsp; RFC 3509: Alternative Implementations of OSPF Area Border Routers 鈼?nbsp; RFC 3623: Graceful OSPF Restart 鈼?nbsp; RFC 4750: OSPF Version 2 MIB RIP 鈼?nbsp; RFC 1724: RIPv2 MIB Extension 鈼?nbsp; RFC 2082: RIPv2 MD5 Authentication 鈼?nbsp; RFC 2453: RIP Version 2 IP Services 鈼?nbsp; RFC 768: UDP 鈼?nbsp; RFC 783: Trivial File Transfer Protocol (TFTP) 鈼?nbsp; RFC 791: IP 鈼?nbsp; RFC 792: ICMP 鈼?nbsp; RFC 793: TCP 鈼?nbsp; RFC 826: ARP 鈼?nbsp; RFC 854: Telnet 鈼?nbsp; RFC 959: FTP 鈼?nbsp; RFC 1027: Proxy ARP 鈼?nbsp; RFC 1305: Network Time Protocol (NTP) Version 3 鈼?nbsp; RFC 1519: Classless Interdomain Routing (CIDR) 鈼?nbsp; RFC 1542: BootP Relay 鈼?nbsp; RFC 1591: Domain Name System (DNS) Client 鈼?nbsp; RFC 1812: IPv4 Routers 鈼?nbsp; RFC 2131: DHCP Helper 鈼?nbsp; RFC 2338: VRRP IP Multicast 鈼?nbsp; RFC 2236: IGMPv2 鈼?nbsp; RFC 3376: IGMPv3 鈼?nbsp; RFC 3446: Anycast Rendezvous Point Mechanism Using PIM and MSDP 鈼?nbsp; RFC 3569: Overview of SSM 鈼?nbsp; RFC 3618: MSDP 鈼?nbsp; RFC 4601: PIM-SM: Protocol Specification (Revised) 鈼?nbsp; RFC 4607: SSM for IP 鈼?nbsp; RFC 4610: Anycast-RP using PIM 鈼?nbsp; RFC 5132: IP Multicast MIB
RoHS鈼?nbsp; RoHS 5 compliant except for lead press-fit connectors
ModelN3K-C3172PQ-XL
Safety鈼?nbsp; UL 60950-1 Second Edition 鈼?nbsp; CAN/CSA-C22.2 No. 60950-1 Second Edition 鈼?nbsp; EN 60950-1 Second Edition 鈼?nbsp; IEC 60950-1 Second Edition 鈼?nbsp; AS/NZS 60950-1 鈼?nbsp; GB4943
Weight18.6 kg
Cooling鈼?nbsp; Forward and reversed airflow schemes: 鈼?nbsp; Forward airflow: Port-side exhaust (air enters through fan-tray and power supplies and exits through ports) 鈼?nbsp; Reversed airflow: Port-side intake (air enters through ports and exits through fan-tray and power supplies) 鈼?nbsp; Redundant fans 鈼?nbsp; Hot swappable (must swap within 1 minute)
Layer 2鈼?nbsp; Layer 2 switch ports and VLAN trunks 鈼?nbsp; IEEE 802.1Q VLAN encapsulation 鈼?nbsp; Support for up to 4096 VLANs 鈼?nbsp; Rapid Per-VLAN Spanning Tree Plus (PVRST+) (IEEE 802.1w compatible) 鈼?nbsp; MSTP (IEEE 802.1s): 64 instances 鈼?nbsp; Spanning Tree PortFast 鈼?nbsp; Spanning Tree Root Guard 鈼?nbsp; Spanning Tree Bridge Assurance 鈼?nbsp; Cisco EtherChannel technology (up to 32 ports per EtherChannel) 鈼?nbsp; LACP: IEEE 802.3ad 鈼?nbsp; Advanced port-channel hashing based on Layer 2, 3, and 4 information 鈼?nbsp; vPC 鈼?nbsp; Jumbo frames on all ports (up to 9216 bytes) 鈼?nbsp; Storm control (unicast, multicast, and broadcast) 鈼?nbsp; Private VLANs 鈼?nbsp; NvGRE entropy 鈼?nbsp; Resilient hashing
Layer 3鈼?nbsp; Layer 3 interfaces: Routed ports on interfaces, switch virtual interfaces (SVIs), port channels, and subinterfaces (total: 1024) 鈼?nbsp; 64-way ECMP 鈼?nbsp; 4000 ingress and 1000 egress ACL entries 鈼?nbsp; IPv6 routing: Static, OSPFv3, and BGPv6 鈼?nbsp; Routing protocols: Static, RIPv2, EIGRP, OSPF, and BGP 鈼?nbsp; Bidirectional Flow Detection (BFD) for BGP, OSPF, and IPv4 static routes 鈼?nbsp; HSRP and VRRP 鈼?nbsp; ACL: Routed ACL with Layer 3 and 4 options to match ingress and egress ACLs 鈼?nbsp; VRF: VRF-lite (IP VPN), VRF-aware unicast (BGP, OSPF, and RIP), and VRF-aware multicast 鈼?nbsp; Unicast Reverse-Path Forwarding (uRPF) with ACL; strict and loose modes 鈼?nbsp; Jumbo frame support (up to 9216 bytes) 鈼?nbsp; Generic Routing Encapsulation (GRE) tunneling 鈼?nbsp; Advanced BGP features including BGP add-path for eBGP and iBGP, remove-private-as enhancements and eBGP next hop unchanged 鈼?nbsp; IP-in-IP Tunnel support
Altitude鈼?nbsp; 0 to 10,000 ft (0 to 3000m)
Physical鈼?nbsp; 1RU fixed form factor 鈼?nbsp; 72 x 10 Gigabit Ethernet ports (48 SFP+ and 6 QSFP+) 鈼?nbsp; 48 SFP ports support 1 and 10 Gigabit Ethernet 鈼?nbsp; 6 QSFP ports support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet each 鈼?nbsp; Redundant fans (3+1) 鈼?nbsp; 2 redundant power supplies 鈼?nbsp; Management, console, and USB flash-memory ports
Security鈼?nbsp; Ingress ACLs (standard and extended) on Ethernet 鈼?nbsp; Standard and extended Layer 3 and 4 ACLs include IPv4, Internet Control Message Protocol (ICMP), TCP, and User Datagram Protocol (UDP) 鈼?nbsp; VLAN-based ACLs (VACLs) 鈼?nbsp; Port-based ACLs (PACLs) 鈼?nbsp; Named ACLs 鈼?nbsp; ACLs on virtual terminals (vtys) 鈼?nbsp; DHCP snooping with Option 82 鈼?nbsp; Port number in DHCP Option 82 鈼?nbsp; DHCP relay 鈼?nbsp; Dynamic Address Resolution Protocol (ARP) inspection 鈼?nbsp; Configurable CoPP 鈼?nbsp; SPAN with ACL filtering
Multicast鈼?nbsp; Multicast: PIMv2, PIM-SM, and PIM-SSM 鈼?nbsp; Bootstrap router (BSR), Auto-RP, and Static RP 鈼?nbsp; MSDP and Anycast RP 鈼?nbsp; Internet Group Management Protocol (IGMP) Versions 2 and 3
Standards鈼?nbsp; IEEE 802.1D: Spanning Tree Protocol 鈼?nbsp; IEEE 802.1p: CoS Prioritization 鈼?nbsp; IEEE 802.1Q: VLAN Tagging 鈼?nbsp; IEEE 802.1s: Multiple VLAN Instances of Spanning Tree Protocol 鈼?nbsp; IEEE 802.1w: Rapid Reconfiguration of Spanning Tree Protocol 鈼?nbsp; IEEE 802.3z: Gigabit Ethernet 鈼?nbsp; IEEE 802.3ad: Link Aggregation Control Protocol (LACP) 鈼?nbsp; IEEE 802.3ae: 10 Gigabit Ethernet (Cisco Nexus 3064-X) 鈼?nbsp; IEEE 802.3ba: 40 Gigabit Ethernet 鈼?nbsp; IEEE 802.3an:10GBASE-T (Cisco Nexus 3064-T) 鈼?nbsp; IEEE 802.1ab: LLDP 鈼?nbsp; IEEE 1588-2008: Precision Time Protocol (Boundary Clock)
Boot flash16GB
Management鈼?nbsp; POAP 鈼?nbsp; Python scripting 鈼?nbsp; Cisco EEM 鈼?nbsp; Switch management using 10/100/1000-Mbps management or console ports 鈼?nbsp; CLI-based console to provide detailed out-of-band management 鈼?nbsp; In-band switch management 鈼?nbsp; Locator and beacon LEDs 鈼?nbsp; Configuration rollback 鈼?nbsp; SSHv2 鈼?nbsp; Secure Copy (SCP) server 鈼?nbsp; Telnet 鈼?nbsp; AAA 鈼?nbsp; AAA with RBAC 鈼?nbsp; RADIUS 鈼?nbsp; TACACS+ 鈼?nbsp; Syslog 鈼?nbsp; Syslog generation on system resources (for example, FIB tables) 鈼?nbsp; Embedded packet analyzer 鈼?nbsp; SNMP v1, v2, and v3 鈼?nbsp; Enhanced SNMP MIB support 鈼?nbsp; XML (NETCONF) support 鈼?nbsp; Remote monitoring (RMON) 鈼?nbsp; Advanced Encryption Standard (AES) for management traffic 鈼?nbsp; Unified username and passwords across CLI and SNMP 鈼?nbsp; Microsoft Challenge Handshake Authentication Protocol (MS-CHAP) 鈼?nbsp; Digital certificates for management between switch and RADIUS server 鈼?nbsp; Cisco Discovery Protocol Versions 1 and 2 鈼?nbsp; RBAC 鈼?nbsp; SPAN on physical layer, port channel, and VLAN 鈼?nbsp; Tunable buffer allocation for SPAN 鈼?nbsp; Encapsulated Remote SPAN (ERSPAN) 鈼?nbsp; Ingress and egress packet counters per interface 鈼?nbsp; PTP (IEEE 1588) boundary clock 鈼?nbsp; Network Time Protocol (NTP) 鈼?nbsp; Cisco OHMS 鈼?nbsp; Comprehensive bootup diagnostic tests 鈼?nbsp; Cisco Call Home 鈼?nbsp; Cisco DCNM 鈼?nbsp; Advanced buffer utilization monitoring 鈼?nbsp; sFlow
Buffer size12MB shared
Performance鈼?nbsp; 1.4-Tbps switching capacity 鈼?nbsp; Forwarding rate of up to 1 bpps 鈼?nbsp; Line-rate traffic throughput (both Layer 2 and 3) on all ports 鈼?nbsp; Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames)
Maximum power293W
Routing table鈼?nbsp; 16,000 prefixes and 16,000 host entries* 鈼?nbsp; 8000 multicast routes*
System memory8GB
Number of VLANS4096
Power supply types鈼?nbsp; AC (forward and reversed airflow) 鈼?nbsp; - N2200-PAC-400W and N2200-PAC-400W-B (PQ models) 鈼?nbsp; - NXA-PAC-500W and NX-PAC-500W-B (TQ models) 鈼?nbsp; DC (forward and reversed airflow) 鈼?nbsp; - N2200-PDC-400W and N3K-PDC-350W-B (PQ models) 鈼?nbsp; - NXA-PDC-500W and NX-PDC-500W-B (TQ models)
Storage temperature鈼?nbsp; -40 to 158°F (-40 to 70°C)
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this N3K-C3172PQ-XL, Cisco Nexus 3172PQ-XL Switch, 48xSFP+ ports/6xQSFP+ ports/Chassis (N3K-C3172PQ-XL) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This N3K-C3172PQ-XL, Cisco Nexus 3172PQ-XL Switch, 48xSFP+ ports/6xQSFP+ ports/Chassis includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the N3K-C3172PQ-XL, Cisco Nexus 3172PQ-XL Switch, 48xSFP+ ports/6xQSFP+ ports/Chassis compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the N3K-C3172PQ-XL.
