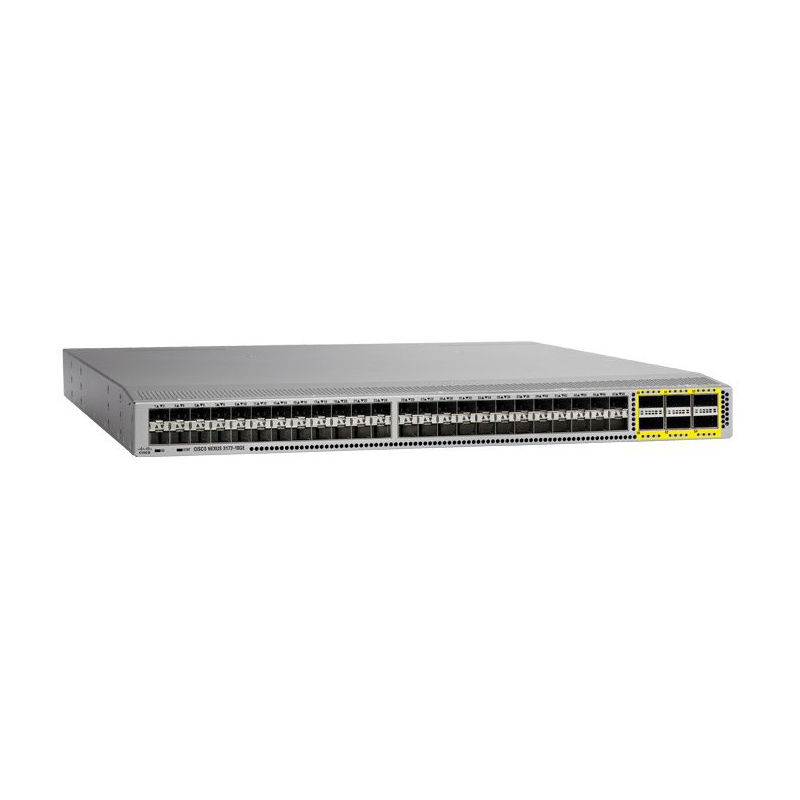

N3K-C3172PQ-10GE, Cisco Nexus 3172PQ Switch, 48xSFP+ 6xQSFP+ Chassis
Brand: Cisco · SKU: N3K-C3172PQ-10GE · MPN: N3K-C3172PQ-10GE · Category: Networking
Nexus 3172PQ, 48 SFP+ and 6 QSFP+ ports
Specifications
| EMC | Immunity: EN55024 CISPR24 EN300386 KN24 |
|---|---|
| RoHS | RoHS 5 compliant except for lead press-fit connectors |
| Model | N3K-C3172PQ-10GE |
| Sound | Fan speed 40%: 64.9 dBA Fan speed 70%: 69.3 dBA Fan speed 100%: 76.7 dBA |
| Safety | UL 60950-1 2nd Edition CAN/CSA-C22.2 No. 60950-1 2nd Edition EN 60950-1 2nd Edition IEC 60950-1 2nd Edition AS/NZS 60950-1 GB4943 |
| AC PSUs | Input voltage: 100鈥?40 VAC Frequency: 50鈥?0 Hz Efficiency: 89鈥?1% at 220 V |
| Cooling | Forward and reversed airflow Forward airflow: Port-side exhaust Reversed airflow: Port-side intake Redundant fans, hot swappable (within 1 min) |
| DC PSUs | Input voltage: -40 to -72 VDC Maximum current: 33A (400W), 42A (500W) Efficiency: 85鈥?8% |
| Altitude | 0 to 10,000 ft (0 to 3000 m) |
| Physical | 1RU fixed form factor 72 x 10 Gigabit Ethernet ports (48 SFP+ and 6 QSFP+) 48 SFP ports support 1 and 10 Gigabit Ethernet 6 QSFP ports support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet each Redundant fans (3+1) 2 redundant power supplies Management, console, and USB flash-memory ports |
| Standards | IEEE 802.1D: Spanning Tree Protocol IEEE 802.1p: CoS Prioritization IEEE 802.1Q: VLAN Tagging IEEE 802.1s: Multiple VLAN Instances of Spanning Tree Protocol IEEE 802.1w: Rapid Reconfiguration of Spanning Tree Protocol IEEE 802.3z: Gigabit Ethernet IEEE 802.3ad: Link Aggregation Control Protocol (LACP) IEEE 802.3ae: 10 Gigabit Ethernet IEEE 802.3ba: 40 Gigabit Ethernet IEEE 802.3an: 10GBASE-T IEEE 802.1ab: LLDP IEEE 1588 |
| Boot Flash | 16GB |
| Buffer Size | 12MB shared |
| MIB Support | SNMPv2-SMI, CISCO-SMI, SNMPv2-TM, SNMPv2-TC, IANA-ADDRESS-FAMILY-NUMBERS-MIB, IANAifType-MIB, IANAiprouteprotocol-MIB, HCNUM-TC, CISCO-TC, SNMPv2-MIB, SNMP-COMMUNITY-MIB, SNMP-FRAMEWORK-MIB, SNMP-NOTIFICATION-MIB, SNMP-TARGET-MIB, SNMP-USER-BASED-SM-MIB, SNMP-VIEW-BASED-ACM-MIB, CISCO-SNMP-VACM-EXT-MIB, MAU-MIB, CISCO-SWITCH-QOS-MIB, CISCO-CLASS-BASED-QOS-MIB |
| Performance | 1.4Tbps switching capacity Forwarding rate up to 1 bpps Line-rate traffic throughput on all Layer 2 and Layer 3 ports Configurable MTU up to 9216 bytes (jumbo frames) |
| Ethernet MIBs | CISCO-VLAN-MEMBERSHIP-MIB, LLDP-MIB, IP-MULTICAST-MIB |
| Maximum Power | 293W |
| Routing Table | 16,000 prefixes and host entries 8000 multicast routes |
| Security MIBs | CISCO-AAA-SERVER-MIB, CISCO-AAA-SERVER-EXT-MIB, CISCO-COMMON-ROLES-MIB, CISCO-COMMON-MGMT-MIB, CISCO-SECURE-SHELL-MIB |
| System Memory | 4GB |
| Monitoring MIBs | NOTIFICATION-LOG-MIB, CISCO-SYSLOG-EXT-MIB, CISCO-PROCESS-MIB, RMON-MIB, CISCO-RMON-CONFIG-MIB, CISCO-HC-ALARM-MIB |
| Number of VLANs | 4096 |
| Configuration MIBs | ENTITY-MIB, IF-MIB, CISCO-ENTITY-EXT-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENTITY-SENSOR-MIB, CISCO-SYSTEM-MIB, CISCO-SYSTEM-EXT-MIB, CISCO-IP-IF-MIB, CISCO-IF-EXTENSION-MIB, CISCO-NTP-MIB, CISCO-VTP-MIB, CISCO-IMAGE-MIB, CISCO-IMAGE-UPGRADE-MIB |
| Miscellaneous MIBs | CISCO-LICENSE-MGR-MIB, CISCO-FEATURE-CONTROL-MIB, CISCO-CDP-MIB, CISCO-RF-MIB |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this N3K-C3172PQ-10GE, Cisco Nexus 3172PQ Switch, 48xSFP+ 6xQSFP+ Chassis (N3K-C3172PQ-10GE) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This N3K-C3172PQ-10GE, Cisco Nexus 3172PQ Switch, 48xSFP+ 6xQSFP+ Chassis includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the N3K-C3172PQ-10GE, Cisco Nexus 3172PQ Switch, 48xSFP+ 6xQSFP+ Chassis compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the N3K-C3172PQ-10GE.
