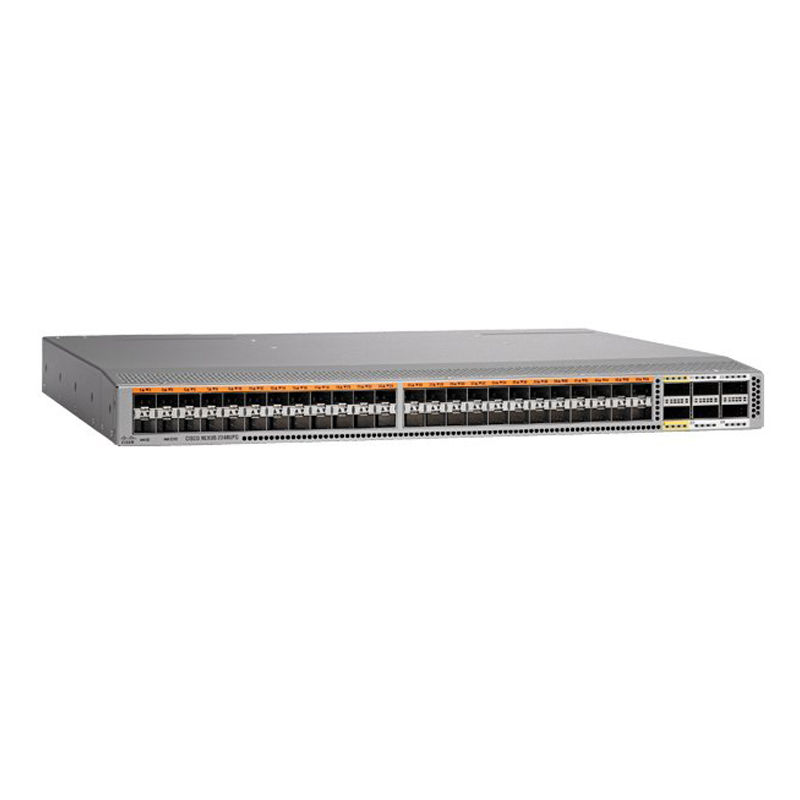

N2K-C2348UPQ, Cisco Nexus 2300 Switch, 48x10GE SFP+/6x40G QSFP+/3 Fan Module

Brand: Cisco · SKU: N2K-C2348UPQ · MPN: N2K-C2348UPQ · Category: Components

N2K-C2348UPQ, Cisco Nexus 2300 Switch, 48x10GE SFP+/6x40G QSFP+/3 Fan Module
$6,969.00
In Stock • 10 units

Nexus 2300 Platform Chassis, Nexus 2348UPQ 10GE Fabric Extender, 2PS, 3 Fan Module, 48x1/10GE (req SFP/SFP+) + 6x40G QSFP+(req QSFP+), choice of airflow and power supply

View Fans & Heatsinks Products

Specifications

EMCImmunity: EN50082-1 EN61000-6-1 EN55024 CISPR24 EN300386 KN 61000-4 series
FCoEFCoE supported (Cisco Nexus 5500 and 5600 platforms and 6000 Series) (select N7k platforms since 7.3 release)
RoHSThe Cisco Nexus 2348UPQ, 2348TQ, and 2332TQ are RoHS-6 compliant
TypeCisco Nexus 2348UPQ
ModelN2K-C2348UPQ
SafetyUL 60950-1 CAN/CSA-C22.2 No. 60950-1EN 60950-1 IEC 60950-1AS/NZS 60950-1GB4943
Weight15.5 kg
SecurityLocal classification (256 access control list [ACL] entries)
ManagementFabric extender management using in-band management Locator and beacon LEDs on front and back of chassis (locator beacons on the front and rear of the chassis help reduce errors when the equipment is serviced) Per-port locator and beacon LEDs Syslog Simple Network Management Protocol Versions 1, 2, and 3 (SNMP v1, v2, and v3) Enhanced SNMP MIB support XML (NETCONF) support Remote Monitoring (RMON) Cisco Discovery Protocol Versions 1 and 2 Cisco Switched Port Analyzer (SPAN) source on server ports Power-on self-test (POST) Cisco Generic Online Diagnostics (GOLD): Ethernet Comprehensive bootup diagnostic tests CiscoWorks Cisco Data Center Network Manager (DCNM); the Cisco Nexus 2300 platform is managed through the parent Cisco Nexus switch using DCNM and standard SNMP, XML interface, and command-line interface (CLI)
DescriptionSpecification
EnvironmentOperating temperature: 32 to 131°F (0 to 55°C) Non-operating temperature: -40 to 158°F (-40 to 70°C) Humidity: 5 to 95 percent (noncondensing) Altitude: 0 to 10,000 ft. (0 to 3000m)
Fan modulesNXA-FAN-30CFM-F and NXA-FAN-30CFM-B (N+1 redundancy = 3 fans)
PerformanceHardware forwarding at 1440Gbps or 2160 million packets per second (mpps)
Fabric speedUp to 240Gbps in each direction (480-Gbps full duplex)
Power supplyN2200-PAC-400W, N2200-PAC-400W-B, N2200-PDC-400W, N2200-PDC-350W-B, NXA-PHV-500W, and NXA-PHV-500W-B
Product TypeCisco Nexus 2348UPQ
Monitoring MIBsRMON-MIB
Heat dissipation425 BTU/hour (typical); 680 BTU/hour (maximum)
Layer 2 featuresLayer 2 VLAN trunks IEEE 802.1Q VLAN encapsulation Cisco EtherChannel technology on uplinks PortChannel on server ports on Cisco Nexus 2300 platforms Advanced PortChannel hashing Jumbo frames on all ports (up to 9216 bytes) Pause frames (Priority Flow Control [PFC] and IEEE 802.3x) Private VLANs (promiscuous only on uplinks) Local multicast replication on Cisco Nexus 2300 platform (8000 entries) Autonegotiation to 1000BASE-T; full duplex on host interfaces
Minimum softwareCisco NX-OS Release 7.0(3)N1(1) (Cisco Nexus 5500 and 5600 platforms and 6000 Series) Cisco NX-OS Release 7.2.0D1(1) (Cisco Nexus 7000 Series and 7700 platform) Cisco NX-OS Release 7.0(3)I2(1) (Cisco Nexus 9300 Series and 9500 platform) Native FC support: Cisco NX-OS Release 7.3(0)N1(1) (Cisco Nexus 5600 platforms Only)
OversubscriptionUp to 2:1
Enhanced EthernetDCB
High availabilityHot-swappable field-replaceable power supplies and fan modules 1:1 power redundancy Uplink traffic management through Cisco EtherChannel hashing or static port pinning vPCs for dual-homed active-active connectivity across two Cisco Nexus parent switches vPCs for dual-homed straight-through NIC connectivity across two Cisco Nexus 2300 platform fabric extenders In-Service Software Upgrade (ISSU)
Configuration MIBsENTITY-MIB IF-MIB FABRIC-EXTENDER MIB CISCO-ENTITY-EXT-MIB CISCO-ENTITY-FRU-CONTROL-MIB CISCO-ENTITY-SENSOR-MIB CISCO-ETHERNET-FABRIC-EXTENDER-MIB
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this N2K-C2348UPQ, Cisco Nexus 2300 Switch, 48x10GE SFP+/6x40G QSFP+/3 Fan Module (N2K-C2348UPQ) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This N2K-C2348UPQ, Cisco Nexus 2300 Switch, 48x10GE SFP+/6x40G QSFP+/3 Fan Module includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the N2K-C2348UPQ, Cisco Nexus 2300 Switch, 48x10GE SFP+/6x40G QSFP+/3 Fan Module compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the N2K-C2348UPQ.
