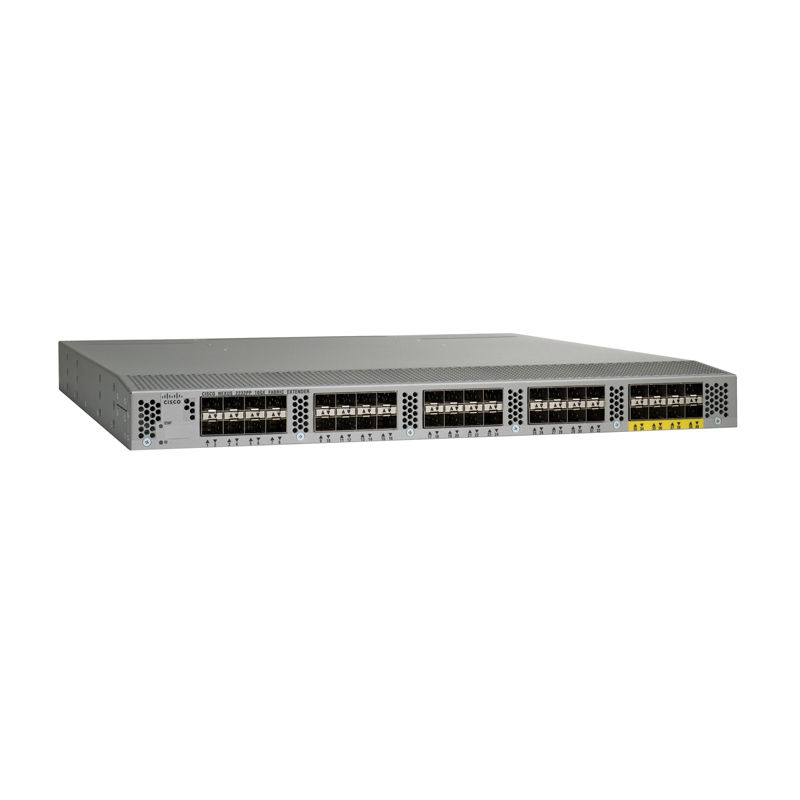

N2K-C2232PP, Cisco Nexus 2232PP Fabric Extender, 32x10GE SFP+, 2 Power Supplies, 1 Fan Module
Brand: Cisco · SKU: N2K-C2232PP · MPN: N2K-C2232PP · Category: Components
Nexus 2232PP Series 10GE Fabric Extender, 2PS, 1 Fan Module, 32x1/10GE (req SFP/SFP+) + 8x10GE (req SFP+), choice of airflow and power supply
Specifications
| EMC | Immunity: EN50082-1 EN61000-6-1 EN55024 CISPR24 EN300386 KN 61000-4 series |
|---|---|
| FCoE | FCoE supported |
| RoHS | The Cisco Nexus 2148T is RoHS-5 compliant, and the Cisco Nexus 2224T, 2248TP, 2232PP, 2248PQ, 2232TM, and 2232TM-E are RoHS-6 compliant. |
| Type | Cisco Nexus 2232PP |
| Model | N2K-C2232PP |
| Safety | UL 60950-1 CAN/CSA-C22.2 No. 60950-1EN 60950-1 IEC 60950-1AS/NZS 60950-1GB4943 |
| Weight | 18.3 kg |
| Fan tray | N2K-C2232-FAN and N2K-C2232-FAN-B |
| Security | Local classification (256 access control list [ACL] entries) |
| Management | Fabric extender management using in-band management Locator and beacon LEDs on front and back of chassis (locator beacons on the front and rear of the chassis help reduce errors when the equipment is serviced) Per-port locator and beacon LEDs Syslog Simple Network Management Protocol Versions 1, 2, and 3 (SNMP v1, v2, and v3) Enhanced SNMP MIB support XML (NETCONF) support Remote Monitoring (RMON) Cisco Discovery Protocol Versions 1 and 2 Cisco Switched Port Analyzer (SPAN) source on server ports Power-on self-test (POST) Cisco Generic Online Diagnostics (GOLD): Ethernet Comprehensive bootup diagnostic tests CiscoWorks Cisco Data Center Network Manager (DCNM); the Cisco Nexus 2000 Series is managed through the parent Cisco Nexus switch using DCNM and standard SNMP, XML interface, and command-line interface (CLI) |
| Environment | Operating temperature: 32 to 104°F (0 to 40°C) Nonoperating temperature: -4 to 158°F (-20 to 70°C) Humidity: 5 to 95 percent (noncondensing) Altitude: 0 to 10,000 ft (0 to 3000m) |
| Performance | Hardware forwarding at 800Gbps or 595mpps |
| Fabric speed | 80Gbps in each direction (160-Gbps full duplex) |
| Power supply | N2200-PAC-400W, N2200-PAC-400W-B, N2200鈥慞DC-400W, and N2200-PDC-350W-B |
| Product Type | Cisco Nexus 2232PP |
| Input current | 2.5A (typical); 4.1A (maximum) Note: Input current listed for 110V; divide by 2 for 220V Supply will surge on AC power-up for a fraction of a second beyond this rating |
| Output current | 20A (typical); 33A (maximum) |
| Monitoring MIBs | RMON-MIB |
| Heat dissipation | 806 BTU/hour (typical); 1330 BTU/hour (maximum) |
| Layer 2 features | Layer 2 VLAN trunks IEEE 802.1Q VLAN encapsulation Cisco EtherChannel technology on uplinks PortChannel on server ports on Cisco Nexus 2200 platforms Advanced PortChannel hashing Jumbo frames on all ports (up to 9216 bytes) Pause frames (Priority Flow Control [PFC] and IEEE 802.3x) Private VLANs (promiscuous only on uplinks) Local multicast replication on Cisco Nexus 2200 platform (8000 entries) Autonegotiation to 1000BASE-T; full duplex on host interfaces |
| Minimum software | Cisco NX-OS Software Release 4.2 (Cisco Nexus 5000 Series) Cisco Nexus 6000 Series running Cisco NX-OS Software Release 6.0 and later Cisco NX-OS Software Release 5.2 (Cisco Nexus 7000 Series) Cisco NX-OS Software Release 6.1 (Cisco Nexus 9000 Series) |
| Oversubscription | 4:1 |
| Enhanced Ethernet | DCB (Cisco Nexus 2232PP) |
| High availability | Hot-swappable field-replaceable power supplies and fan modules 1:1 power redundancy Uplink traffic management through Cisco EtherChannel hashing or static port pinning vPCs for dual-homed active-active connectivity across two Cisco Nexus 5000 or 6000 Series Switches vPCs for dual-homed straight-through NIC connectivity across two Cisco Nexus 2000 Series Fabric Extenders ISSU |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this N2K-C2232PP, Cisco Nexus 2232PP Fabric Extender, 32x10GE SFP+, 2 Power Supplies, 1 Fan Module (N2K-C2232PP) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This N2K-C2232PP, Cisco Nexus 2232PP Fabric Extender, 32x10GE SFP+, 2 Power Supplies, 1 Fan Module includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the N2K-C2232PP, Cisco Nexus 2232PP Fabric Extender, 32x10GE SFP+, 2 Power Supplies, 1 Fan Module compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the N2K-C2232PP.
