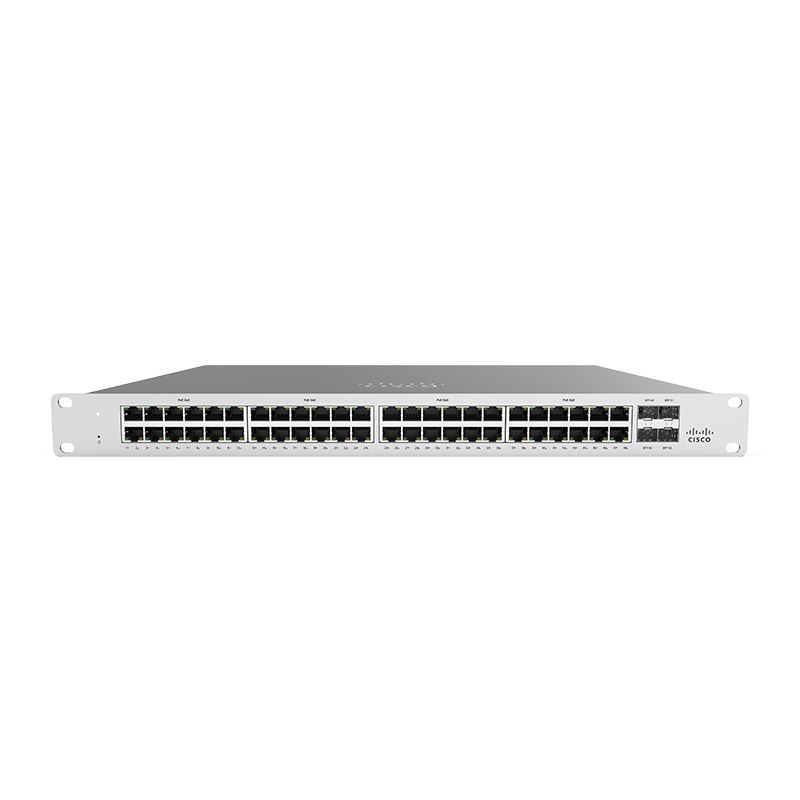

MS120-48LP-HW, Cisco Meraki MS120 Switch, 48x1G PoE/Cloud Mgmt/370W PoE
SKU: MS120-48LP-HW · MPN: MS120-48LP-HW · Category: Networking
Request for Quote
In Stock • 10 units
Meraki MS120-48LP 1G L2 Cld Managed 48x GigE 370W PoE Switch
Specifications
| Power | • Power input: 100 - 240 VAC, 47-63 Hz • Power consumption: 8 - 908W |
|---|---|
| Weight | 12.70 lb (5.70 kg) |
| Layer 3 | • DHCP Relay |
| Mounting | • 1U Rack-mountable with included rack mount hardware • 2-post front mounting options available • Desktop-mountable with included feet |
| Security | • Integrated two-factor authentication for Dashboard management • Role-based access control (RBAC) with granular device and configuration control • Corporate wide password policy enforcement • IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing • Multi-Domain/Multi-Host/Multi Authentication • Port security: Sticky MAC, MAC whitelisting • DHCP snooping, detection and blocking, Dynamic ARP Inspection • STP Enhancements: BPDU guard, Root guard, Loop guard • IPv4 and IPv6 ACLs |
| Dimensions | 1.73 x 17.32 x 13.4 in (4.4 x 44 x 34 cm) |
| Interfaces | • 24 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover) • 4 x 1GbE SFP uplink • RJ45 Management port |
| Management | • Managed via the Web with the Meraki cloud management platform • Integrated with Meraki Wireless and complete portfolio of IT products and solutions • Zero-touch remote provisioning (no staging needed) • Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration • Detailed historical per-port and per-client usage statistics • DHCP, client, and hostname fingerprinting • SNMPd and SYSLOG support for integration with other network management solutions • Automatic firmware upgrades with scheduling control |
| Regulatory | • CSA-US (US, Canada) • FCC (USA) • IC (Canada) • CE (Europe) • RCM (Australia/New Zealand) • RoHS |
| Environment | • Operating temperature: 0°C to 45°C • Humidity: 5 to 95% non-condensing • MS120-24 feature fanless operation |
| MTBF Ratings | 707,873 |
| Forwarding rate | 41.67mpps |
| Remote Diagnostics | • Email, SMS and Mobile push notification alerts • Cable testing and link failure detection with alerting • Live remote packet capture • Dynamic and interactive network discovery and topology • Combined event and configuration change logs with instant search |
| Switching capacity | 104 Gbps |
| What’s included | 1 x Rack mounting screw kit |
| Idle / Full Load Power | 37 / 477 W |
| Power Supply Configuration | Fixed internal |
| Ethernet Switching Capabilities | • 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping) • 802.1Q VLAN and trunking support for up to 4,094 VLANs • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP) • Broadcast storm control • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) • 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches • Port mirroring • IGMP snooping for multicast filtering • MAC forwarding entries: 16K |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MS120-48LP-HW, Cisco Meraki MS120 Switch, 48x1G PoE/Cloud Mgmt/370W PoE (MS120-48LP-HW) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MS120-48LP-HW, Cisco Meraki MS120 Switch, 48x1G PoE/Cloud Mgmt/370W PoE includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MS120-48LP-HW, Cisco Meraki MS120 Switch, 48x1G PoE/Cloud Mgmt/370W PoE compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the MS120-48LP-HW.
