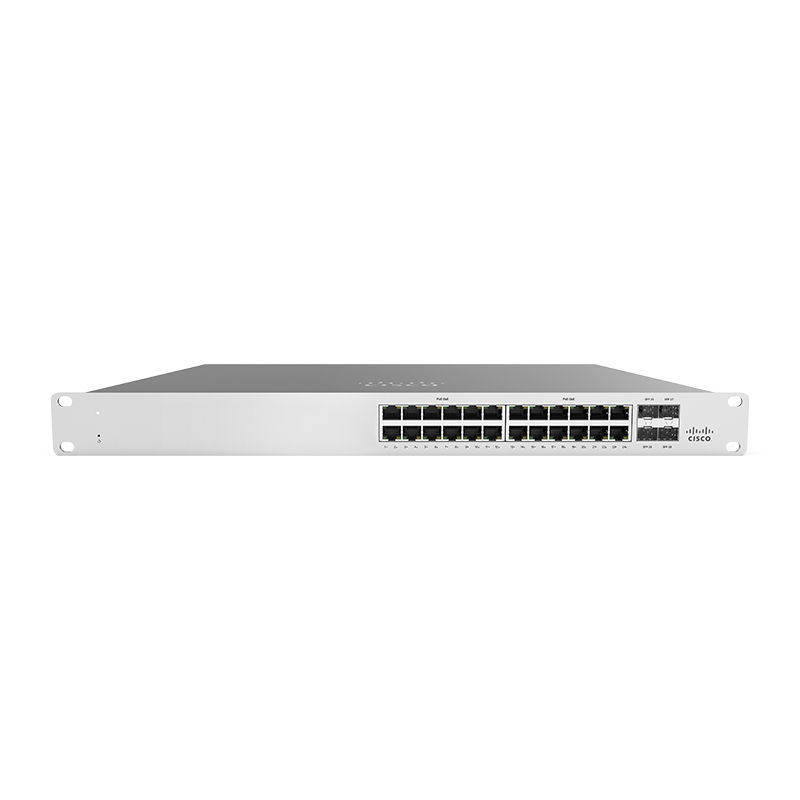

MS120-24P-HW, Cisco Meraki MS120 Switch, 24x1G PoE/Layer 2/370W PoE
Brand: Generic · SKU: MS120-24P-HW · MPN: MS120-24P-HW · Category: Networking
The Cisco Meraki MS120-24P HW is a 24 port Gigabit Ethernet Layer 2 managed switch with PoE support and a 370W PoE budget, designed for business networks, access points, VoIP phones, cameras, and other PoE devices.
Specifications
| Power | • Power input: 100 - 240 VAC, 47-63 Hz • Power consumption: 8 - 908W |
|---|---|
| Weight | 9.26 lb (4.20 kg) |
| Layer 3 | • DHCP Relay |
| Mounting | • 1U Rack-mountable with included rack mount hardware • 2-post front mounting options available • Desktop-mountable with included feet |
| Security | • Integrated two-factor authentication for Dashboard management • Role-based access control (RBAC) with granular device and configuration control • Corporate wide password policy enforcement • IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing • Multi-Domain/Multi-Host/Multi Authentication • Port security: Sticky MAC, MAC whitelisting • DHCP snooping, detection and blocking, Dynamic ARP Inspection • STP Enhancements: BPDU guard, Root guard, Loop guard • IPv4 and IPv6 ACLs |
| Dimensions | 1.72 x 17.32 x 9.84” (4.40 x 44 x 25cm) |
| Interfaces | • 24 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover) • 4 x 1GbE SFP uplink • RJ45 Management port |
| Management | • Managed via the Web with the Meraki cloud management platform • Integrated with Meraki Wireless and complete portfolio of IT products and solutions • Zero-touch remote provisioning (no staging needed) • Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration • Detailed historical per-port and per-client usage statistics • DHCP, client, and hostname fingerprinting • SNMPd and SYSLOG support for integration with other network management solutions • Automatic firmware upgrades with scheduling control |
| Regulatory | • CSA-US (US, Canada) • FCC (USA) • IC (Canada) • CE (Europe) • RCM (Australia/New Zealand) • RoHS |
| Environment | • Operating temperature: 0°C to 45°C • Humidity: 5 to 95% non-condensing • MS120-24 feature fanless operation |
| MTBF Ratings | 707,873 |
| Forwarding rate | 41.67mpps |
| Remote Diagnostics | • Email, SMS and Mobile push notification alerts • Cable testing and link failure detection with alerting • Live remote packet capture • Dynamic and interactive network discovery and topology • Combined event and configuration change logs with instant search |
| Switching capacity | 56 Gbps |
| What’s included | 1 x Rack mounting screw kit |
| Idle / Full Load Power | 28 / 425 W |
| Power Supply Configuration | Fixed internal |
| Ethernet Switching Capabilities | • 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping) • 802.1Q VLAN and trunking support for up to 4,094 VLANs • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP) • Broadcast storm control • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) • 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches • Port mirroring • IGMP snooping for multicast filtering • MAC forwarding entries: 16K |
| Warranty | 3-Year Warranty |
Key Features
The Cisco Meraki MS120-24P-HW is a cloud managed Layer 2 Gigabit Ethernet switch designed for business, branch office, campus, and distributed network environments. It provides 24 Gigabit Ethernet ports with Power over Ethernet (PoE), allowing compatible network devices to receive both data connectivity and electrical power through Ethernet cabling. With a 370W PoE power budget, the MS120-24P-HW can support multiple powered devices such as wireless access points, VoIP phones, IP security cameras, and other compatible PoE endpoints. As part of the Cisco Meraki switching platform, the MS120 series is designed for centralized cloud based network management, monitoring, configuration, and troubleshooting.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MS120-24P-HW, Cisco Meraki MS120 Switch, 24x1G PoE/Layer 2/370W PoE (MS120-24P-HW) is 100% genuine Generic hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MS120-24P-HW, Cisco Meraki MS120 Switch, 24x1G PoE/Layer 2/370W PoE includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MS120-24P-HW, Cisco Meraki MS120 Switch, 24x1G PoE/Layer 2/370W PoE compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the MS120-24P-HW.
