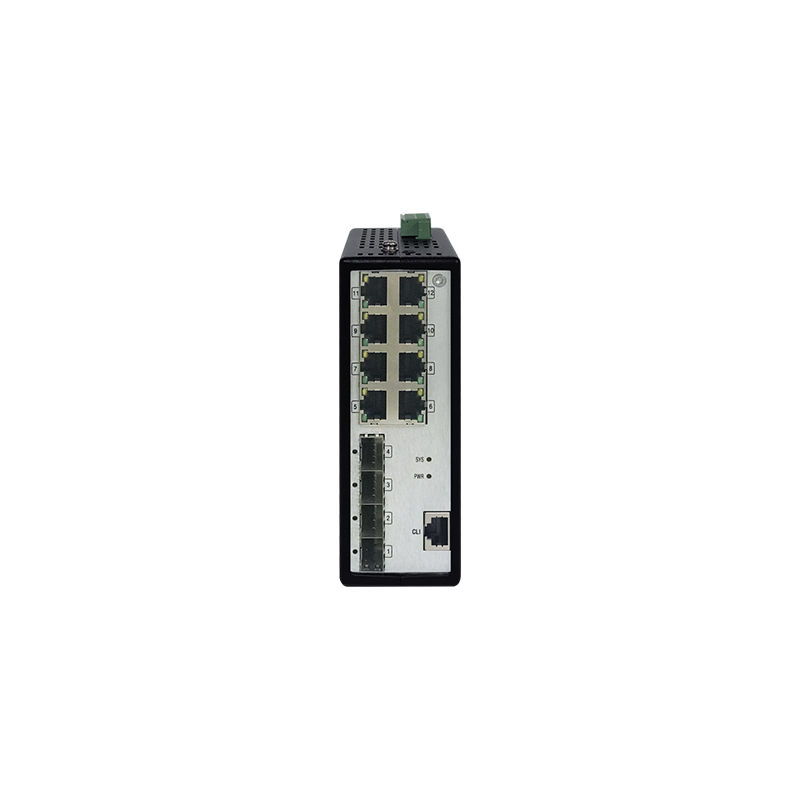

TOM1000-C12F4080P, MRD TOM1000 Series Switch, 4x1000BaseX SFP/8xPoE 10/100/1000BaseT/1xSerial CLI Port
SKU: MRD:TOM1000-C12F4080P · MPN: MRD:TOM1000-C12F4080P · Category: Networking
TOM1000 Series 4 1000BaseX SFP Ports (SFP module not included), 8 802.3af/ at PoE 10/100/1000BaseT Ports. 1 Management Serial CLI Port
Specifications
| EMI | FCC 47 CFR Part 15 Class A EN55022 Class A |
|---|---|
| EMS | IEC (EN )61000-4-2, Class 4 IEC (EN )61000-4-4, Class 2 IEC (EN )61000-4-5, Class 2 IEC (EN )61000-4-11, Class 4 IEC (EN )61000-4-12, Class 4 |
| MTBF | ≥400,000H |
| Shock | IEC 60068-2-27 |
| Others | 4K VLANS, IPv4/IPv6 multicast, storm control, support Jumbo Frame |
| Weight | 0.7 kg |
| Housing | Aluminum Alloy Housing |
| Freefall | IEC 60068-2-31 |
| IP Rating | IP40; |
| Vibration | IEC 60068-2-6 |
| Connection | 1 removable 5-contact terminal block |
| Redundancy | RSTP, STP, MSTP, MRD-Ring®, port trunking |
| Installasion | DIN-Rail |
| Circuit Board | Approved by IPC |
| Exchange Rate | 148,800 pps/100M; 1,488,000 pps/1000 M; |
| Input Voltage | 48-57VDC |
| Rail Industry | EN50155; IEC/EN61373; EN50121 |
| Diagnosis Mode | Indicator light, journal file, relay, RMON, port mirroring, TRAP |
| Hazardous Area | UL/cUL1604 Class 1 Div 2 (pending) |
| MAC Table Size | 8K |
| Power Industry | IEC61850-3 IEEE1613 (C37.90.x) |
| Product Safety | CE.CB.IEC.IECEE IEC/EN62368-1 FCC Part 15 Subpart B Class A IEC/EN55022 Class A IEC60825-1 |
| Management Mode | Browser, Serial Port, STD-17 MIB-II, STD-58 SMIv2, STD-59 RMON, STD-62 SNMPv3, SNMPv2c, SNMPv1, RFC2668 MAU, RFC2925 Ping MIB, MRD Pri- vate MIBs |
| Processing Type | Store-and-Forward |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this TOM1000-C12F4080P, MRD TOM1000 Series Switch, 4x1000BaseX SFP/8xPoE 10/100/1000BaseT/1xSerial CLI Port (MRD:TOM1000-C12F4080P) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This TOM1000-C12F4080P, MRD TOM1000 Series Switch, 4x1000BaseX SFP/8xPoE 10/100/1000BaseT/1xSerial CLI Port includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the TOM1000-C12F4080P, MRD TOM1000 Series Switch, 4x1000BaseX SFP/8xPoE 10/100/1000BaseT/1xSerial CLI Port compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the MRD:TOM1000-C12F4080P.
