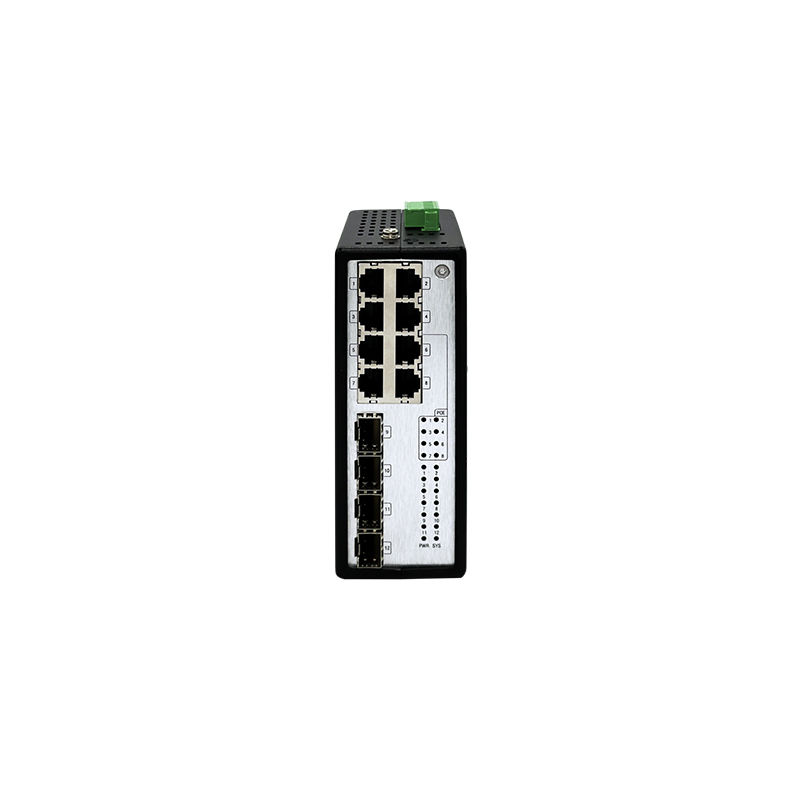

TOM1000-BHTB12P4080P, MRD TOM1000 Series Switch, 4x100/1000BaseX SFP (no module) / 8xPoE 10/100/1000BaseT
SKU: MRD:TOM1000-BHTB12P4080P · MPN: MRD:TOM1000-BHTB12P4080P · Category: Networking
TOM1000 Series 4 100/1000BaseX SFP ports (SFP module not included) + 8 PoE 10/100/1000BaseT ports
Specifications
| EMC | EN 55032 EN 55035 EN IEC61000-3-2 EN61000-3-3 FCC Part 15 Subpart B Class A |
|---|---|
| EMI | FCC 47 CFR Part 15 Class A EN 55032 Class A EN 55035 Class A |
| EMS | IEC(EN)61000-4-2, Class 4 IEC(EN)61000-4-3, Class 3 IEC(EN)61000-4-4, Class 4 IEC(EN)61000-4-5, Class 4 IEC(EN)61000-4-6, Class 3 IEC(EN)61000-4-8, Class 5 |
| MTBF | ≥300,000H |
| Shock | IEC 60068-2-27 |
| Others | Test Report from Ministry of Public Security, Network Access License, RoHS |
| Weight | 0.4 kg |
| Housing | Aluminum Alloy Housing |
| Freefall | IEC 60068-2-31 |
| IP Rating | IP40; |
| Vibration | IEC 60068-2-6 |
| Connection | 1 removable 5-contact terminal block |
| Redundancy | RSTP, STP, MSTP, Port Trunking, MRD-Ring |
| Installasion | DIN-rail mounting |
| Circuit Board | Approved by IPC |
| Exchange Rate | 148,800 pps/100M ports; 1,488,000 pps/1000M ports |
| Input Voltage | 9.6 ~ 60VDC & 18 ~ 30VAC, dual inputs |
| MAC Table Size | 8K |
| Product Safety | EN/IEC62368-1 |
| Management Mode | Browser, Console, Telnet, SSH 2.0, Syslog, NTP/SNTP, STD-62 SNMPv3, SNMPv1, SNMPv2, FTP/TFTP |
| Processing Type | Store-and-Forward |
| Conformal Coated | Optional |
| Power Consumption | 10W（without POE） |
| Packet Buffer Size | 4.1Mbti |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this TOM1000-BHTB12P4080P, MRD TOM1000 Series Switch, 4x100/1000BaseX SFP (no module) / 8xPoE 10/100/1000BaseT (MRD:TOM1000-BHTB12P4080P) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This TOM1000-BHTB12P4080P, MRD TOM1000 Series Switch, 4x100/1000BaseX SFP (no module) / 8xPoE 10/100/1000BaseT includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the TOM1000-BHTB12P4080P, MRD TOM1000 Series Switch, 4x100/1000BaseX SFP (no module) / 8xPoE 10/100/1000BaseT compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the MRD:TOM1000-BHTB12P4080P.
