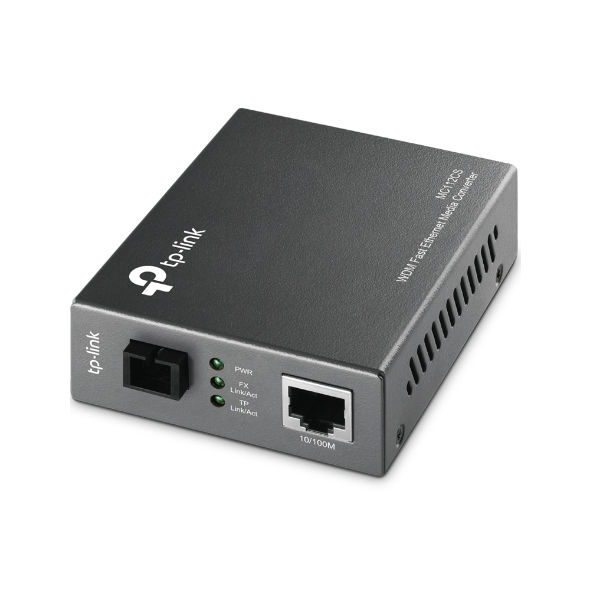

TP-Link 10/100Mbps WDM Media Converter
Brand: TP-Link · SKU: MC112CS V1 · MPN: MC112CS V1 · Category: Components
TP-Link 10/100Mbps WDM Media Converter, 1000 Mbit/s, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Gigabit Ethernet, 1000 Mbit/s, 100BASE-FX, Cat3, Cat4, Cat5, Cat5e
Specifications
| Depth | 73 mm |
|---|---|
| Width | 94.5 mm |
| Height | 27 mm |
| Internal | No |
| Wavelength | 1550 nm |
| Certification | FCC, CE |
| Package depth | 204 mm |
| Package width | 165 mm |
| Auto MDI/MDI-X | Yes |
| LED indicators | Activity, Power |
| Package height | 65 mm |
| Package weight | 360 g |
| Product colour | Black |
| Fiber ports quantity | 1 |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Fiber optic connector | SC |
| Compliance certificates | RoHS |
| Connectivity technology | Wired |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Power consumption (max) | 2.41 W |
| Maximum transfer distance | 20000 m |
| Storage temperature (T-T) | -40 - 70 °C |
| Warranty | 3-Year Warranty |
| Dimensions | 94.5 mm x 73 mm x 27 mm |
Product Description
What This Product Does The MC112CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Adopting WDM technology, MC112CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC112CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on transferring data and at 1550nm on receiving data. So the other end device to cooperate with the MC112CS should work at 1550nm on transferring data and at 1310nm on receiving data. Another TP-LINK’s media converter MC111CS is just one of the examples to cooperate with MC112CS. Other features of this module include the ability to be used as a stand alone device (no chassis required), Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC112CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
Key Features
TP-Link 10/100Mbps WDM Media Converter. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 20000 m, Wavelength: 1550 nm. LED indicators: Activity, Power, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Power consumption (max): 2.41 W
Frequently Asked Questions
Is this product genuine OEM?
Yes, this TP-Link 10/100Mbps WDM Media Converter (MC112CS V1) is 100% genuine TP-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This TP-Link 10/100Mbps WDM Media Converter includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the TP-Link 10/100Mbps WDM Media Converter compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the MC112CS V1.
