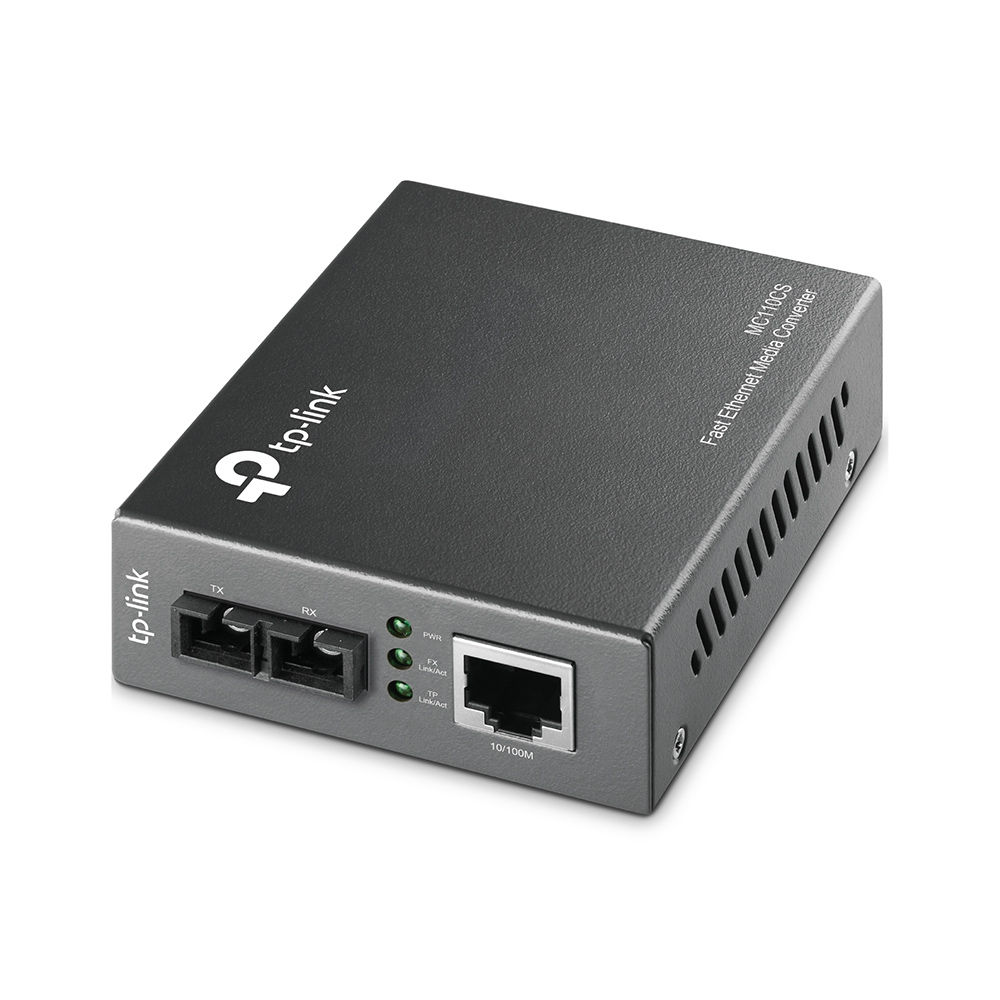

TP-Link 10/100Mbps Single-Mode Media Converter
Brand: TP-Link · SKU: MC110CS V1 · MPN: MC110CS V1 · Category: Components
TP-Link 10/100Mbps Single-Mode Media Converter, 1000 Mbit/s, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Gigabit Ethernet, 1000 Mbit/s, 100BASE-FX, UTP 3, 4, 5e, 5
Specifications
| Depth | 73 mm |
|---|---|
| Width | 94.5 mm |
| Height | 27 mm |
| Internal | No |
| I/O ports | 1x 100M SC 1x 100M RJ45 |
| Wavelength | 1310 nm |
| Full duplex | Yes |
| Certification | FCC, CE |
| Package depth | 204 mm |
| Package width | 165 mm |
| Auto MDI/MDI-X | Yes |
| LED indicators | Power, Speed |
| Package height | 65 mm |
| Package weight | 380 g |
| Product colour | Black |
| Cabling technology | UTP 3, 4, 5e, 5 |
| Dimensions (WxDxH) | 94.5 x 73 x 27 mm |
| Fiber ports quantity | 1 |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Fiber optic connector | SC |
| Connectivity technology | Wired |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Warranty | 3-Year Warranty |
| Dimensions | 94.5 mm x 73 mm x 27 mm |
Product Description
What This Product Does The MC110CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC110CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC110CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´ system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port and front panel status LEDs. The MC110CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
Key Features
TP-Link 10/100Mbps Single-Mode Media Converter. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 20000 m, Wavelength: 1310 nm. LED indicators: Power, Speed, Product colour: Black, Compliance industry standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Fiber optic connector: SC, Connectivity technology: Wired. Power consumption (max): 1.52 W
Frequently Asked Questions
Is this product genuine OEM?
Yes, this TP-Link 10/100Mbps Single-Mode Media Converter (MC110CS V1) is 100% genuine TP-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This TP-Link 10/100Mbps Single-Mode Media Converter includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the TP-Link 10/100Mbps Single-Mode Media Converter compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the MC110CS V1.
