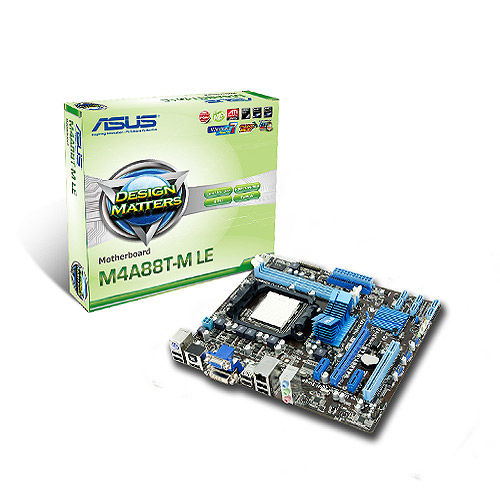

ASUS M4A88T-M LE motherboard AMD 880G Socket AM3 micro ATX
Brand: ASUS · SKU: M4A88T-M LE · MPN: M4A88T-M LE · Category: Components
ASUS M4A88T-M LE, AMD, Socket AM3, AMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6, 5.2 GT/s, 8 GB, Dual-channel. ASUS M4A88T-M LE motherboard AMD 880G Socket AM3 micro ATX (part number M4A88T-M LE) is an enterprise components product available from Server Tech Central. Key specifications include depth 224 mm, width 244 mm, bios type AMI, pci slots 1, audio chip Realtek ALC887, raid levels 0, 1, 10, JBOD, acpi version 2.0a, certification RoHS. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 224 mm |
|---|---|
| Width | 244 mm |
| BIOS type | AMI |
| PCI slots | 1 |
| Audio chip | Realtek ALC887 |
| RAID levels | 0, 1, 10, JBOD |
| ACPI version | 2.0a |
| Certification | RoHS |
| Component for | PC |
| Graphics card | Radeon HD 4250 |
| Microphone in | Yes |
| LAN controller | Realtek RTL8112L |
| Memory channels | Dual-channel |
| S/PDIF out port | Yes |
| System bus rate | 5.2 GT/s |
| BIOS memory size | 16 Mbit |
| Drivers included | Yes |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Headphone outputs | 3 |
| Power source type | ATX |
| ECC сompatibility | ECC & Non-ECC |
| Parallel connector | Yes |
| USB 2.0 connectors | 3 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 224 mm |
Product Description
This motherboard supports AMD® Socket AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process. This motherboard supports DDR3 1866(O.C.) that provides faster data transfer rate and more bandwith to increase memory computing efficiency, enhancing system performance in 3D graphics and other memory demanding applications. Boosted Performance with onboard GPU and discrete graphics card ATI Hybrid CrossFireX™ technology is a unique hybrid multi-GPU technology. It takes your gaming experience to the next level boosting PC performance by enabling the chipset’s integrated graphics processor and a discrete GPU to operate simultaneously with combined output for blisteringly-fast frame rates unleashing the graphics performance * Visit www.amd.com for the Hybrid CrossFireX selected GPUs. Flexible Graphics Alternatives This motherboard supports multiple digital and analog display output interfaces - HDMI, DVI, and D-Sub. With such diversity of display outputs, you are able to choose and upgrade display devices freely. This motherboard provides convenient connectivity to external home theater audio systems via optical S/PDIF-out (SONY-PHILIPS Digital Interface) jacks. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.
Key Features
ASUS M4A88T-M LE. Processor manufacturer: AMD, Processor socket: Socket AM3, Compatible processor series: AMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6. Maximum internal memory: 8 GB, Memory channels: Dual-channel, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1, 10, JBOD. Maximum graphics card memory: 1024 MB, Graphics card family: AMD, Graphics card: Radeon HD 4250. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8112L, Networking features: Gigabit Ethernet
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS M4A88T-M LE motherboard AMD 880G Socket AM3 micro ATX (M4A88T-M LE) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS M4A88T-M LE motherboard AMD 880G Socket AM3 micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS M4A88T-M LE motherboard AMD 880G Socket AM3 micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the M4A88T-M LE.
