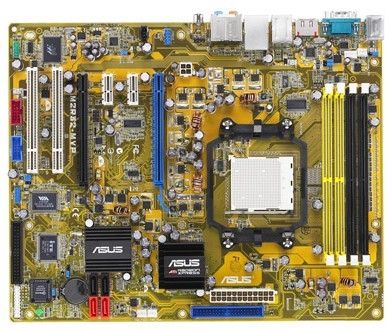

ASUS M2R32-MVP motherboard Socket AM2 ATX
Brand: ASUS · SKU: M2R32-MVP · MPN: M2R32-MVP · Category: Components
ASUS M2R32-MVP, AMD, Socket AM2, 8 GB, ECC & Non-ECC, Marvell 88E8001, Gigabit Ethernet. ASUS M2R32-MVP motherboard Socket AM2 ATX (part number M2R32-MVP) is an enterprise components product available from Server Tech Central. Key specifications include depth 245 mm, width 305 mm, audio chip ADI AD1988A, lan controller Marvell 88E8001, cd/aux audio in Yes, expansion slots 2x PCI Express x16 2x PCI Express x1 2x PCI, s/pdif out port Yes, bios memory size 64 Mbit. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 245 mm |
|---|---|
| Width | 305 mm |
| Audio chip | ADI AD1988A |
| LAN controller | Marvell 88E8001 |
| CD/AUX audio in | Yes |
| Expansion slots | 2x PCI Express x16 2x PCI Express x1 2x PCI |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Bundled software | Drivers ASUS PC Probe II ASUS Update Anti-virus (OEM) |
| Processor socket | Socket AM2 |
| Special features | Stack Cool2 SATA On the Go Noise Filter Q-Connector CrashFree BIOS3 EZ Flash2 ASUS Q-Fan2 Technology ASUS Mylogo2 |
| CPU fan connector | Yes |
| Power source type | ATX |
| COM ports quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 3 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| S/PDIF out connector | Yes |
| eSATA ports quantity | 1 |
| Audio output channels | 7.1 channels |
| Manageability features | WfM 2.0, DMI 2.0, WOL PME, WOR PME, Chassis Intrusion, PXE & RPL |
| Number of memory slots | 4 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 245 mm |
Product Description
High-Speed Graphics Platform. The M2R32-MVP supports dual PCI Express x16 slots running at full speed to liberate graphics cards through ATI's™ CrossFire™ Xpress 3200. ASUS Special features such as Stack Cool2 and Q-Fan2 that provides quiet and peaceful computing. It also offers better system performance for graphics-intensive applications, and delivers cutting-edge audio features that dramatically enhance the quality of voice signal. Thoughtful design further allows quick and easy system setup like Q-Connector and EZ Flash2. With exclusive innovative designs that bring out the real potential of the ATI™ CrossFire™ Xpress 3200 chipset, gamers can experience faster graphics performance and higher video quality today. Supports AMD® Socket AM2 Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron The motherboard supports AMD socket AM2 single-core Athlon 64/ Sempron and dual-core Athlon 64 X2/ Athlon 64 FX processors with 2MB / 1MB / 512KB L2 cache, which is based on 64-bit architecture. It features 2000 / 1600 MT/s HyperTransport Bus, dual-channel un-buffered DDR2 800 memory support and AMD Cool 'n' Quiet! Technology. 64-bit CPU support 64-bit computing, the next generation technology to replace the current 32-bit architecture, delivers advanced system performance, faster memory access and increased productivity. This motherboard provides excellent compatibility and flexibility by supporting either 64-bit or 32-bit architecture. ATI™ CrossFire™ Xpress 3200 The ATI™ CrossFire™ Xpress 3200 Northbridge supports simultaneous operation of two external PCI Express x16 graphics cards and delivers the best performance for overclocking. It's simply the fastest graphics platform solution to date. ATI CrossFire Technology ATI's CrossFire boosts image quality along with rendering speed, eliminating the need to scale down screen resolutions to get the high image quality you want. CrossFire ignites with the higher antialiasing, anisotropic filtering, shading, and texture settings you desire. Adjust your display configurations, experiment with your advanced 3D settings, and check the effect with a real-time 3D-rendered preview within ATI's Catalyst™ Control Center to rule your CrossFire system. Dual-Channel DDR2 800 DDR2 is the next generation memory technology to replace the current DDR. With the highest speed up to 800MHz, DDR2 memory provides great performance for 3D graphics and other memory demanding applications. Geil ® PC2-6400 800PLUS ASUS recommends the Geil PC2-6400 800PLUS memory for the M2R32-MVP motherboard. They are optimized for each other to bring out the real potential of the AM2/ CrossFire Xpress 3200 platform, and provide maximum performance and reliable operation. AI NOS™ Boost performance when you need it the most! Applications such as 3D games and video editing demand a huge chunk of system resource. Inject "nitrous oxide" into your CPU! The patented AI NOS™ (Non-delay Overclocking System) technology intelligently detects system load and automatically boosts performance for the most demanding tasks. Unlike other dynamic overclocking techniques, AI NOS™ reacts much faster to satisfy your unending need for speed. ASUS O.C. Profile The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users the freedom to share and distribute their favorite overclocking settings. AI NET2 ASUS AI NET2 remotely detects cable connection the second you turn on the system, and any faulty connections are reported back up to 100 meters at 1 meter accuracy. PCI Express Architecture PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming. PCI Express x1 and x4 also outperforms PCI interface with its exceptional high bandwidth. The high speed PCI Express interface creates new usages on desktop PCs e.g., Gigabit LAN, 1394b, and high-speed RAID systems. Serial ATA 3Gb/s The motherboard supports the next-generation hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves. SATA on the Go The motherboard supports the next-generation hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves. The external SATA port located at the back I/O provides smart setup and hot-plug functions. Easily backup photos, videos and other entertainment contents on external devices. IEEE 1394a interface IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices. ASUS Q-Fan 2 ASUS Q-Fan2
Key Features
ASUS M2R32-MVP. Processor manufacturer: AMD, Processor socket: Socket AM2. Maximum internal memory: 8 GB, ECC сompatibility: ECC & Non-ECC. LAN controller: Marvell 88E8001, Networking features: Gigabit Ethernet. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: ADI AD1988A. BIOS memory size: 64 Mbit
