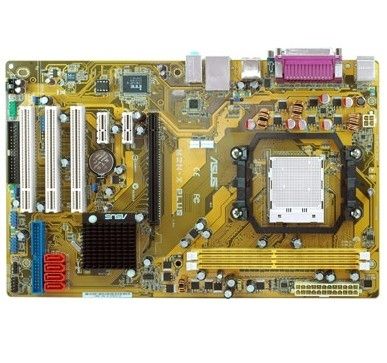

ASUS M2N-X Plus Socket AM2 ATX
Brand: ASUS · SKU: 90-MIB2H0-G0EAY00Z · MPN: 90-MIB2H0-G0EAY00Z · Category: Components
ASUS M2N-X Plus, AMD, Socket AM2, 4 GB, ECC & Non-ECC, 0, 1, 0+1, 5, JBOD, Fast Ethernet. ASUS M2N-X Plus Socket AM2 ATX (part number 90-MIB2H0-G0EAY00Z) is an enterprise components product available from Server Tech Central. Key specifications include depth 193 mm, width 305 mm, audio chip Realtek ALC662, raid levels 0, 1, 0+1, 5, JBOD, microphone in Yes, cd/aux audio in Yes, expansion slots 1 x PCI Express x16 2 x PCI Express x1 3 x PCI, s/pdif out port Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 193 mm |
|---|---|
| Width | 305 mm |
| Audio chip | Realtek ALC662 |
| RAID levels | 0, 1, 0+1, 5, JBOD |
| Microphone in | Yes |
| CD/AUX audio in | Yes |
| Expansion slots | 1 x PCI Express x16 2 x PCI Express x1 3 x PCI |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Processor socket | Socket AM2 |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| COM ports quantity | 1 |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 3 |
| Networking features | Fast Ethernet |
| PS/2 ports quantity | 2 |
| Audio output channels | 5.1 channels |
| Overclocking features | SFS ASUS C.P.R. |
| Manageability features | WOR @ Ring, WOL/WOR @ PME, PXE |
| Number of memory slots | 2 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 4 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 193 mm |
Product Description
Support AMD Socket AM2 Athlon 64 FX / Athlon 64 X2 / Athlon 64/ Sempron This motherboard supports the latest AM2+ CPUs with better overclocking capabilities and less power consumption. It provides extremely high performances and shortened data access times by supporting for 2000 / 1600 MT/s HyperTransport Bus, dual-channel un-buffered DDR2 1066 memory support and AMD Cool 'n' Quiet! Technology. AMD Cool ´n´ Quiet! Technology Supports AMD Cool ´n´ Quiet! Technology, which monitors system operation and automatically adjusts CPU voltage and frequency for a cool and quiet environment. NVIDIA GeForce ™6100/nForce ™430 The NVIDIA® GeForce™ 6100 GPU Northbridge supports Microsoft® DirectX 9.0 Shader Model 3.0,NVIDIA® PureVideo Technology with unprecedented integrated video quality,and PCI Express interface. The NVIDIA® nForce™ 430 MCP delivers NVIDIA® Gigabit LAN, and NVIDIA® MediaShield storage management technology allowing easy RAID configuration (RAID 0, RAID 1,RAID0+1,RAID5) for Serial ATA 3Gb/s. DDR2 1066 Support DDR2 1066 memory provides great performance for 3D graphics and other memory demanding applications on next generation memory technology. PCI Express Architecture PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better in applications such as 3D gaming. Serial ATA 3Gb/s M2N-X supports next-generation SATA hard drives based on the new SATA 3Gb/s storage specification. Furthermore, the chipset has two dedicated SATA controllers delivering more scalable performance and doubles the bus bandwidth for fast hard drive data retrieval and saves. 10/100 LAN Easy connectivity to your network or broadband connection with onboard LAN port, lets you take gaming online without buying expensive additional LAN cards. H.D.Audio Enjoy high-quality sound system on your PC! The onboard 6-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output with Jack-detect feature. CrashFree BIOS 2 The CrashFree BIOS 2 feature now includes the BIOS auto-recovery function in a support CD. Users can reboot their system through the support CD when a bootable disk is not available, and go through the simple BIOS auto-recovery process. ASUS motherboards now enable users to enjoy this protection feature without the need to pay for an optional ROM. ASUS EZ Flash With ASUS EZ Flash, you can update BIOS before entering operating system. No more DOS-based flash utility and bootable diskette required. ASUS Q-Fan ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation. MyLogo ASUS MyLogo personalizes and adds style to your system with customizable boot logos. GreenASUS The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
Key Features
ASUS M2N-X Plus. Processor manufacturer: AMD, Processor socket: Socket AM2. Maximum internal memory: 4 GB, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1, 0+1, 5, JBOD. Networking features: Fast Ethernet. Motherboard form factor: ATX, Audio output channels: 5.1 channels, Audio chip: Realtek ALC662
