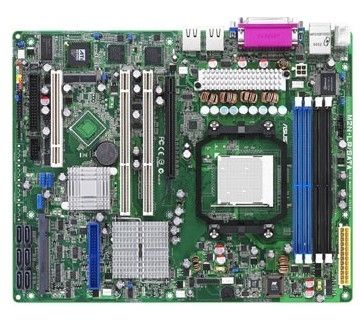

ASUS M2N-LR motherboard Socket AM2 ATX
Brand: ASUS · SKU: M2N-LR · MPN: M2N-LR · Category: Components
ASUS M2N-LR, AMD, Socket AM2, 4 GB, ECC, 0, 1, 5, 10, JBOD, 32 MB. ASUS M2N-LR motherboard Socket AM2 ATX (part number M2N-LR) is an enterprise components product available from Server Tech Central. Key specifications include raid levels 0, 1, 5, 10, JBOD, graphics card ES1000, lan controller Broadcom BCM5721, expansion slots 1x PCI-E x16 1x 64-bit/133GHz PCI-X 1x 64-bit/133GHz PCI-X 1x 32-bit/33MHz PCI, processor socket Socket AM2, special features Smart Fan II, power source type ATX, ecc сompatibility ECC. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| RAID levels | 0, 1, 5, 10, JBOD |
|---|---|
| Graphics card | ES1000 |
| LAN controller | Broadcom BCM5721 |
| Expansion slots | 1x PCI-E x16 1x 64-bit/133GHz PCI-X 1x 64-bit/133GHz PCI-X 1x 32-bit/33MHz PCI |
| Processor socket | Socket AM2 |
| Special features | Smart Fan II |
| Power source type | ATX |
| ECC сompatibility | ECC |
| USB 2.0 connectors | 3 |
| Networking features | Dual Gigabit Ethernet |
| PS/2 ports quantity | 1 |
| Serial ports quantity | 1 |
| Manageability features | ASWM2.0 |
| Number of memory slots | 4 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 2 |
| Maximum internal memory | 4 GB |
| Motherboard form factor | ATX |
| Controller interface type | Serial ATA II |
| Number of SATA connectors | 6 |
| Storage temperature (T-T) | -40 - 70 °C |
| Ethernet LAN (RJ-45) ports | 3 |
| Chassis intrusion connector | Yes |
| Floppy disk drive connector | Yes |
| Warranty | 3-Year Warranty |
Product Description
Most Expandable UP Serverboard with the Latest Socket AM2 This serverboard is based on AMD's latest Socket AM2 platform. With dual core technology, the serverboard is able to provide dual CPU performance with one socket 940 processor. It supports dual channel ECC Un-buffered DDR2-800 memory, which improves bandwidth and performance significantly compared with DDR400. Leading-edge Performance Ready - Support AMD's latest Socket AM2 processor and nVIDIA MCP55P + Intel PXH-V chipset. - Dual Channel ECC Un-buffered DDR2-800 ensures faster processing speed. High performance with ECC memory protection Support up to 4 DIMM 4GB DDR2-800 ECC Un-buffered memory space. DDR2-800 provides better performance over last generation Opteron™ DDR 400 platform. Complete RAID solution for data protection Build-in nVIDIA MCP55P provides 6 SATA ports supporting RAID 0, 1, 10, 5, and JBOD to secure your precious data. Dual Server Class PCI-Express Gb LAN - Broadcom® PCI-Express Gb LAN provides most professional server network connection solution. - Teaming and failover function which provides load-balance and fault tolerance features enables higher bandwidth aggregation and reliable network connection. IPMI2.0 for Online & Offline Management ASWM 2.0 provides in-Band web-based Management capability for your server. Global Technical Support Service ASUS A.R.S. (Advanced RMA Service) allows for convenient return and replacement of defective products, and offers effective way to shorten RMA lead-time. Intelligent SmartFan 2 technology Proactively fine-tune fan speed base on System thermal condition for better acoustic.
Key Features
ASUS M2N-LR. Processor manufacturer: AMD, Processor socket: Socket AM2. Maximum internal memory: 4 GB, ECC сompatibility: ECC. RAID levels: 0, 1, 5, 10, JBOD. Maximum graphics card memory: 32 MB, Graphics card: ES1000. LAN controller: Broadcom BCM5721, Networking features: Dual Gigabit Ethernet
