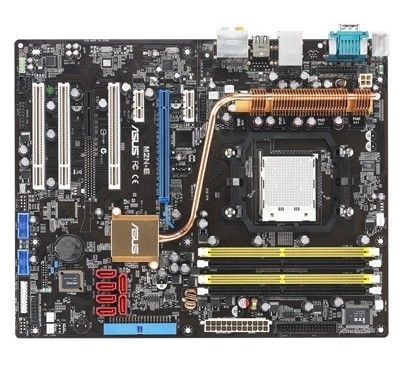

ASUS M2N-E Socket AM2 ATX
Brand: ASUS · SKU: 90-MIB0K0-G0UAYZ · MPN: 90-MIB0K0-G0UAYZ · Category: Components
ASUS M2N-E, AMD, Socket AM2, Gigabit LAN, ATX, 7.1 channels, ADI AD1988. ASUS M2N-E Socket AM2 ATX (part number 90-MIB0K0-G0UAYZ) is an enterprise components product available from Server Tech Central. Key specifications include depth 245 mm, width 305 mm, audio chip ADI AD1988, microphone in Yes, cd/aux audio in Yes, expansion slots 1x PCI Express x16 1x PCI Express x4 2x PCI Express x1 3x PCI 2.2, s/pdif out port Yes, bios memory size 32 Mbit. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 245 mm |
|---|---|
| Width | 305 mm |
| Audio chip | ADI AD1988 |
| Microphone in | Yes |
| CD/AUX audio in | Yes |
| Expansion slots | 1x PCI Express x16 1x PCI Express x4 2x PCI Express x1 3x PCI 2.2 |
| S/PDIF out port | Yes |
| BIOS memory size | 32 Mbit |
| Bundled software | ASUS PC Probe II ASUS Update ASUS AI Booster NVIDIA MediaShield RAID Anti-virus software (OEM) |
| Processor socket | Socket AM2 |
| Special features | ASUS EZ DIY AI Nap AI Gear ASUS Crystal Sound |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| COM ports quantity | 1 |
| USB 2.0 connectors | 3 |
| Networking features | Gigabit LAN |
| PS/2 ports quantity | 2 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| Manageability features | WOL, WOR, Wake on WLAN, Chasis Intrusion, PXE |
| Number of memory slots | 4 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 4 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 245 mm |
Product Description
Exceptional overclocking & acoustic designs provide you a whole new computing experience! AI Lifestyle AI Lifestyle Series motherboards bring lifestyle and personal computing together. They provide better system performance for graphics-intensive applications such as 3D games and deliver cutting-edge audio features that dramatically enhance the quality of voice signal. Thoughtful design further allows quick and easy system setup. To create a peaceful environment, several new and improved innovations are included to reduce noise and temperature. Don't change your way of life for a computer. Instead let the ASUS Lifestyle Series improve the quality of your life. NVIDIA nForce 570 Ultra MCP NVIDIA nForce 570 Ultra media and communications processors (MCPs) features AMD Socket AM2 processor support, 1 GHz HyperTransport link. With 6 Serial ATA ports enabled through the SATA 3Gb/s RAID controller, nForce® 570 Ultra MCP satisfies favorable multi-task processing and better data security. Gigabit LAN controllers provide the total solutions for networking needs. High Definition Audio Interface enriches your life. Those perfect combinations of NVIDIA nForce® 570 Ultra MCP deliver exceptional performance for gaming and entertainment. AMD Socket AM2 - Supports AMD Socket AM2 Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron The M2N-E supports AMD socket AM2 single-core Athlon 64/ Sempron and dual-core Athlon 64 X2/ Athlon 64 FX processors with 2MB / 1MB / 512KB L2 cache, which is based on 64-bit architecture. It features 2000 / 1600 MT/s HyperTransport Bus, dual-channel un-buffered DDR2 800 memory support and AMD Cool 'n' Quiet! Technology. Dual-Core CPU The advanced processing technology contains two physical CPU cores with individually dedicated L2 caches to satisfy the rising demand for more powerful processing capability. Dual-Channel DDR2 800 DDR2 is the next generation memory technology to replace the current DDR. With the highest speed up to 800MHz, DDR2 memory provides great performance for 3D graphics and other memory demanding applications. AI Gear To balance both system performance and quietness, AI Gear allows users to choose from profiles to adjust CPU frequency and CPU Core voltage, minimizing system noise and power consumption. Users can change the mode in real-time under operating system to suit their needs. AI Nap With AI Nap, users can instantly snooze your PC without terminating the tasks. System will continue operating at minimum power and noise when user is temporarily away. It keeps downloading files or running applications in quietest state while you're sleeping. Simply click keyboard or mouse, you can swiftly wake up the system in few seconds. ASUS Crystal Sound This feature can enhance speech-centric application like Skype, online game, video conference and recording. ASUS O.C. Profile The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users the freedom to share and distribute their favorite overclocking settings. Gigbit LAN The NVIDIA native Gigabit LAN controller delivers transfer speeds up to ten times faster than conventional 10/100 Ethernet connections. Gigabit LAN is the networking standard for the early future and is ideal for handling large amounts of data such as video, audio, and voice. High Definition Audio Enjoy high-end sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer. GreenASUS The motherboard and its packaging comply with the European Union's Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers' health while minimizing the impact on the environment.
Key Features
ASUS M2N-E. Processor manufacturer: AMD, Processor socket: Socket AM2. Networking features: Gigabit LAN. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: ADI AD1988. BIOS memory size: 32 Mbit. Width: 305 mm, Depth: 245 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS M2N-E Socket AM2 ATX (90-MIB0K0-G0UAYZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS M2N-E Socket AM2 ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS M2N-E Socket AM2 ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MIB0K0-G0UAYZ.
