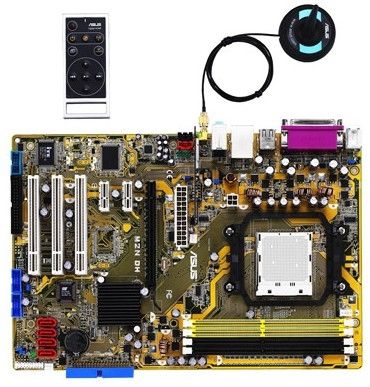

ASUS M2N DH motherboard Socket AM2 ATX
Brand: ASUS · SKU: M2N DH · MPN: M2N DH · Category: Components
ASUS M2N DH, AMD, Socket AM2, 8 GB, ECC, Gigabit Ethernet, Wireless LAN, ATX. ASUS M2N DH motherboard Socket AM2 ATX (part number M2N DH) is an enterprise components product available from Server Tech Central. Key specifications include depth 206 mm, width 305 mm, cd/aux audio in Yes, expansion slots 1x PCI-Express x16 2x PCI-Express x1 3x PCI 2.2, s/pdif out port Yes, bios memory size 32 Mbit, processor socket Socket AM2, cpu fan connector Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 206 mm |
|---|---|
| Width | 305 mm |
| CD/AUX audio in | Yes |
| Expansion slots | 1x PCI-Express x16 2x PCI-Express x1 3x PCI 2.2 |
| S/PDIF out port | Yes |
| BIOS memory size | 32 Mbit |
| Processor socket | Socket AM2 |
| Special features | SFS ASUS C.P.R. ASUS O.C. -FAN2 Q-Connector ASUS CrashFree BIOS3 ASUS EZ Flash2 ASUS Fanless Design ASUS MyLogo ASUS WiFi-AP Solo Asus DH Remote ASUS MP3-In |
| CPU fan connector | Yes |
| Power source type | ATX |
| ECC сompatibility | ECC |
| USB 2.0 connectors | 2 |
| Networking features | Gigabit Ethernet, Wireless LAN |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| S/PDIF out connector | Yes |
| Audio output channels | 5.1 channels |
| Manageability features | WOL by PME, WOR by PME, Chassis Intrusion, PXE |
| Number of memory slots | 4 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 8 GB |
| Motherboard form factor | ATX |
| Parallel ports quantity | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 206 mm |
Product Description
Digital Home The rise of digital home is just like a tsunami that is poinsed to take over the PC industry. To enjoy the digitalized convinience, you need the ASUS Digital Home series motherboard, a system that is designed solely for this purpose. ASUS Digital Home series motherbaord enables users to control the computer at a distance away, setup wireless network to enjoy wireless Skype phone, charge mobile devices even when the PC is turned off, and backup the database automatically. Enjoy the comfort of digital home you deserve. Supports AMD Socket AM2 Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron The motherboard supports AMD socket AM2 single-core Athlon 64/ Sempron and dual-core Athlon 64 X2/ Athlon 64 FX processors with 2MB / 1MB / 512KB L2 cache, which is based on 64-bit architecture. It features 2000 / 1600 MT/s HyperTransport Bus, dual-channel un-buffered DDR2 800 memory support and AMD Cool 'n' Quiet! Technology. Dual-Core CPU The advanced processing technology contains two physical CPU cores with individually dedicated L2 caches to satisfy the rising demand for more powerful processing capability. Dual-Channel DDR2 800 DDR2 is the next generation memory technology to replace the current DDR. With the highest speed up to 800MHz, DDR2 memory provides great performance for 3D graphics and other memory demanding applications. AMD Cool 'n' Quiet! Technology M2N-VM DH supports AMD Cool 'n' Quiet! Technology, which monitors system operation and automatically adjusts CPU voltage and frequency for a cool and quiet environment. NVIDIA Essential Vista NVIDIA nForce ® -based motherboards are essential for accelerating the Windows Vista experience by offering an enriched 3D user interface, increased productivity, and vibrant photos as well as delivering uncompromising performance, quality, and reliability. ASUS O.C. Profile The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users the freedom to share and distribute their favorite overclocking settings. CrashFree BIOS 2 The CrashFree BIOS2 feature now includes the BIOS auto-recovery function in a support CD. Users can reboot their system through the support CD when a bootable disk is not available, and go through the simple BIOS auto-recovery process. ASUS motherboards now enable users to enjoy this protection feature without the need to pay for an optional ROM. ASUS EZ Flash 2 EZ Flash 2 is a user-friendly BIOS update utility. Simply press the pre-defined hotkey to launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility. ASUS Q-Fan 2 ASUS Q-Fan2 technology intelligently adjusts both CPU fan and chassis fan speeds according to system loading to ensure quiet, cool and efficient operation. ASUS Q-Connector The ASUS Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, making connection quick and accurate. PCI Express Architecture PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming. PCI Express x1 also outperforms PCI interface with its exceptional high bandwidth up to 500MB/s. SATA 3Gb/s RAID The NVIDIA nForce® 430 chipsets incorporate four SATA 3Gb/s ports with high performance RAID functions in RAID 0, 1, 0+1, 5 and JBOD. This motherboard is the ideal solution to enhance hard disk performance and data back up protection without the cost of add-on cards. High Definition Audio Enjoy six-end sound system on your PC! The onboard 6-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature. S/PDIF-out on Back I/O Port This motherboard provides convenient connectivity to external home theater audio systems via an optical or coaxial S/PDIF-out (SONY-PHILIPS Digital Interface) jack. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.
Key Features
ASUS M2N DH. Processor manufacturer: AMD, Processor socket: Socket AM2. Maximum internal memory: 8 GB, ECC сompatibility: ECC. Networking features: Gigabit Ethernet, Wireless LAN. Motherboard form factor: ATX, Audio output channels: 5.1 channels, Power source type: ATX. BIOS memory size: 32 Mbit
