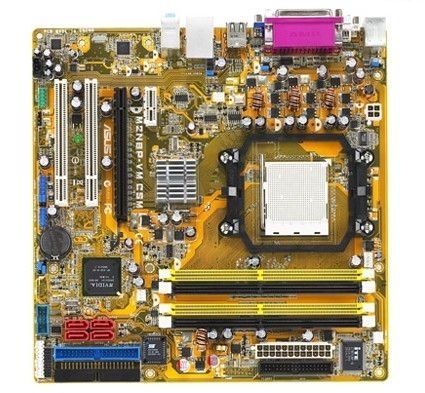

ASUS M2NBP-VM CSM Socket AM2 micro ATX
Brand: ASUS · SKU: 90-MIB0R0-G0EAYZ · MPN: 90-MIB0R0-G0EAYZ · Category: Components
ASUS M2NBP-VM CSM, AMD, Socket AM2, 8 GB, ECC & Non-ECC, 0, 1, GeForce 6. ASUS M2NBP-VM CSM Socket AM2 micro ATX (part number 90-MIB0R0-G0EAYZ) is an enterprise components product available from Server Tech Central. Key specifications include depth 245 mm, width 245 mm, audio chip ADI AD1986A, raid levels 0, 1, graphics card GeForce 6, microphone in Yes, cd/aux audio in Yes, expansion slots 1x PCI Express x16 1x PCI Express x1 2x PCI. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 245 mm |
|---|---|
| Width | 245 mm |
| Audio chip | ADI AD1986A |
| RAID levels | 0, 1 |
| Graphics card | GeForce 6 |
| Microphone in | Yes |
| CD/AUX audio in | Yes |
| Expansion slots | 1x PCI Express x16 1x PCI Express x1 2x PCI |
| Bundled software | Drivers ASUS PC Probe II ASUS LiveUpdate Anti-Virus AMD Cool ' n' Quiet |
| Processor socket | Socket AM2 |
| Special features | ASUS Q-Fan 2 ASUS My Logo ASUS CrashFreeBIOS2 ASUS EZ Flash 2 |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 2 |
| PS/2 ports quantity | 2 |
| RAID controller type | NVIDIA nForce 430B |
| S/PDIF out connector | Yes |
| Audio output channels | 5.1 channels |
| Overclocking features | SFS ASUS C.P.R. |
| Manageability features | WfM 2.0, DMI 2.0, WOL PME, WOR, PXE, Chassis Intrusion |
| Number of memory slots | 4 |
| Processor manufacturer | AMD |
| Warranty | 3-Year Warranty |
| Dimensions | 245 mm x 245 mm |
Product Description
Supports AMD Socket AM2 Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron The motherboard supports AMD socket AM2 single-core Athlon 64/ Sempron and dual-core Athlon 64 X2/ Athlon 64 FX processors with 2MB / 1MB / 512KB L2 cache, which is based on 64-bit architecture. It features 2000 / 1600 MT/s HyperTransport Bus, dual-channel un-buffered DDR2 800 memory support and AMD Cool 'n' Quiet! Technology. Dual channel DDR2 800 DDR2 is the next generation memory technology to replace the current DDR. With the highest speed up to 800MHz, DDR2 memory provides great performance for 3D graphics and other memory demanding applications. AMD Cool 'n' Quiet! Technology M2NPV-VM supports AMD Cool 'n' Quiet! Technology, which monitors system operation and automatically adjusts CPU voltage and frequency for a cool and quiet environment. NVIDIA Quadro® NVS 210S+NVIDIA nForce® 430B The NVIDIA Quadro® NVS 210S GPU Northbridge supports Microsoft® DirectX 9.0 Shader Model 3.0, dual VGA out ( DVI-D and RGB), NVIDIA® PureVideo Technology with unprecedented integrated video quality, and PCI Express interface. The NVIDIA nForce® 430B MCP Southbridge delivers NVIDIA® Gigabit LAN, and NVIDIA® MediaShield storage management technology allowing easy RAID configuration (RAID 0vand RAID 1) for Serial ATA 3Gb/s. AMD Commercial Stable Image Platform The AMD CSIP(Commercial Stable Image Platform) is a stable image platform for manageable PCs delivering outstanding productivity for commercial customers. NVIDIA Bussiness Platform M2NBP-VM CSM has been certified by NBP(Nvidia Business Platform) program which ensure solid quality and stable drivers for serious business users. PCI Express Architecture PCI Express is the latest I/O interconnect technology that will replace the existing PCI. The PCI Express x16 bus performs much better in applications such as 3D gaming. Serial ATA 3Gb/s This motherboard supports next-generation SATA hard drives based on the new SATA 3Gb/s storage specification. The onboard NVIDIA nForce 430B MCP southbridge NVIDIA® MediaShield storage management technology supports RAID 0 and RAID 1 configurations for four SATA connectors. Gigbit LAN NVIDIA Gb LAN controller delivers transfer speeds up to ten times faster than conventional 10/100 Ethernet connections. Gigabit LAN is the networking standard for the early future and is ideal for handling large amounts of data such as video, audio, and voice. High Definition Audio SoundMAX is the highest performing, most reliable and user-friendly PC audio solution for business professionals, audiophiles, musicians, and gamers. Hear crystal-clear quality from all your audio - MP3 playback, home theatre, advanced gaming, VOIP and more, and never worry - SoundMAX high-definition audio is there to enhance your experience! C.P.R.(CPU Parameter Recall) When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again. ASUS EZ Flash 2 EZ Flash 2 is a user-friendly BIOS update utility. Simply press the predefined hotkey to launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility. ASUS Q-Fan 2 ASUS Q-Fan2 technology intelligently adjusts both CPU fan and chassis fan speeds according to system loading to ensure quiet, cool and efficient operation. GreenASUS The motherboard and its packaging comply with the European Union's Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers' health while minimizing the impact on the environment.
Key Features
ASUS M2NBP-VM CSM. Processor manufacturer: AMD, Processor socket: Socket AM2. Maximum internal memory: 8 GB, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1. Graphics card: GeForce 6. Motherboard form factor: micro ATX, Audio output channels: 5.1 channels, Audio chip: ADI AD1986A
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS M2NBP-VM CSM Socket AM2 micro ATX (90-MIB0R0-G0EAYZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS M2NBP-VM CSM Socket AM2 micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS M2NBP-VM CSM Socket AM2 micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MIB0R0-G0EAYZ.
