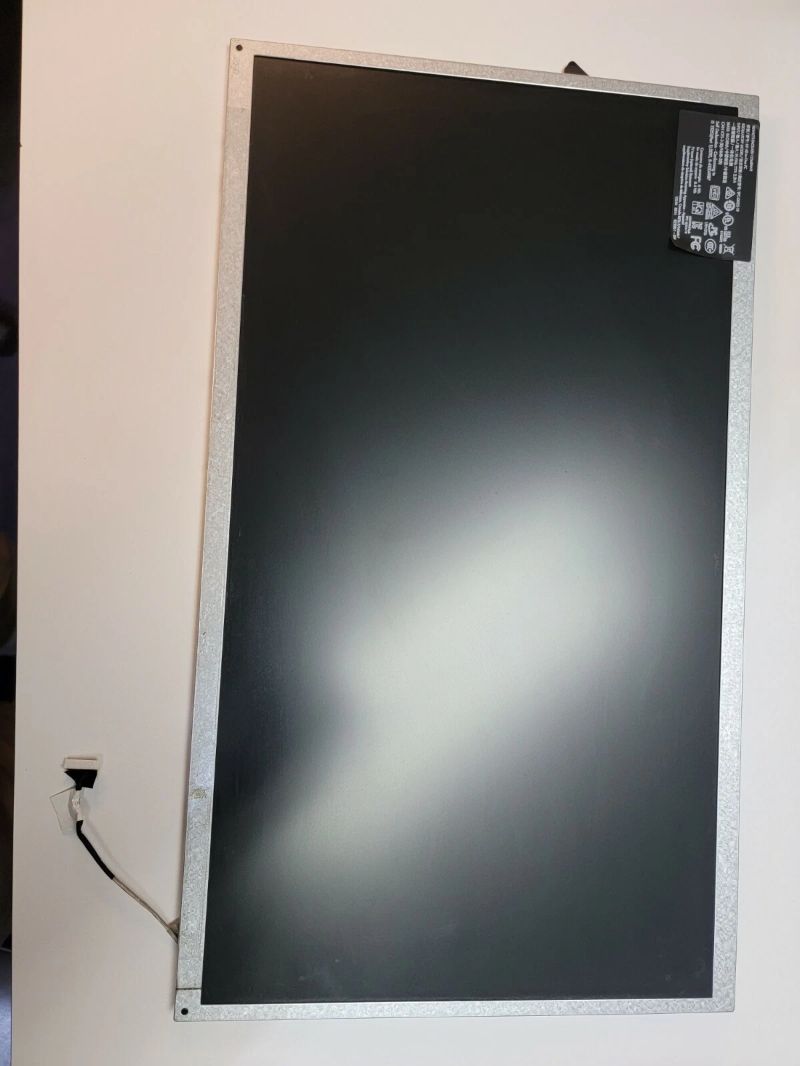

AUO M195RTN01.0 / M195RTN01.1 19.5 inch Color TFT-LCD Module
Brand: AUO (AU Optronics) · SKU: M195RTN01 · MPN: M195RTN01.0, M195RTN01.1 · Category: Components
This is a specification for the 19.5 inch wide Color a-Si TFT-LCD Module, with variants like M195RTN01.0 and M195RTN01.1. The display supports the HD+ resolution of 1600(H) x 900(V) screen format and 16.7M colors (RGB 6-bits + Hi-FRC data). The input interface is Dual channel LVDS, and the module does not contain a driver board for the backlight. The surface treatment is Non Glare/Matte with Hard coating (3H) for some versions. The backlight is WLED, rated for 30,000 hours. It is commonly used in monitors.
Specifications
| Backlight | WLED |
|---|---|
| Interface | Dual channel LVDS (2 ch, 8-bit) |
| Resolution | 1600 x 900 (HD+) |
| Active Area | 433.92 x 236.34 mm (H x V) |
| Aspect Ratio | 16:9 (or 17:9) |
| Diagonal Size | 19.5 inches |
| Input Voltage | 5.0V (Typ.) |
| Response Time | 3.8/1.2 ms (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/80/80 (Typ.) (L/R/U/D for M195RTN01.0); 45/45/20/45 (Typ.) (L/R/U/D for M195RTN01.1 CELL) |
| Display Colors | 16.7M |
| Storage Temperature | -20 ~ 65 °C (or -20 ~ 60 °C) |
| Operating Temperature | 0 ~ 50 °C |
| Brightness (M195RTN01.0) | 250 cd/m² (Typ.) |
| Brightness (M195RTN01.1) | 200 cd/m² (Typ.) |
| Contrast Ratio (M195RTN01.0) | 1000:1 (Typ.) |
| Contrast Ratio (M195RTN01.1) | 600:1 (Typ.) |
| Warranty | Standard manufacturer warranty (Details typically found on supplier/seller terms). |
| Weight | 1.43 Kgs (Typ.) |
| Dimensions | Outline Size: 452 x 263 mm (H x V); Outline Depth: 7.6/11.0 mm (Typ./Max.) |
Key Features
The M195RTN01 is a 19.5-inch thin-film transistor liquid crystal display (TFT-LCD) module manufactured by AU Optronics (AUO). It features a widescreen HD+ resolution, dual-channel LVDS interface, and is primarily designed for monitor applications. Variants exist with slightly different brightness and contrast specifications.
Technical Deployment Advisory
Target Personnel
IT Procurement Officers
Infrastructure Fit
Mission-Critical Parts Replacement
"The M195RTN01 is the primary choice for IT Procurement Officers performing critical Mission-Critical Parts Replacement tasks. It meets all OEM performance specifications for AUO (AU Optronics) systems."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AUO M195RTN01.0 / M195RTN01.1 19.5 inch Color TFT-LCD Module (M195RTN01) is 100% genuine AUO (AU Optronics) hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AUO M195RTN01.0 / M195RTN01.1 19.5 inch Color TFT-LCD Module includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AUO M195RTN01.0 / M195RTN01.1 19.5 inch Color TFT-LCD Module compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the M195RTN01.
