AUO B156HAN02.1 15.6" FHD IPS Laptop LCD Display Panel
Brand: AUO · SKU: B156HAN02.1 · MPN: B156HAN02.1 · Category: Components

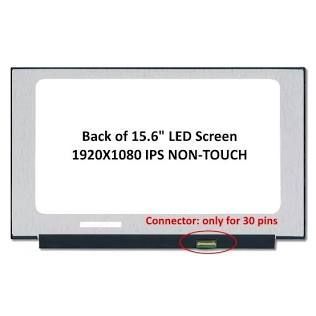

AUO B156HAN02.1 is a 15.6-inch FHD IPS laptop LCD panel featuring 1920×1080 resolution, 60Hz refresh rate, matte surface and 30-pin eDP interface.
Specifications
| Surface | Antiglare |
|---|---|
| Interface | eDP (2 Lanes) |
| Brightness | 250 cd/m² (Typ.) |
| Resolution | 1920 x 1080 (FHD) |
| Color Depth | 262K Colors (6-bit) |
| Aspect Ratio | 16:9 |
| Display Size | 15.6 inch |
| Input Voltage | 3.3V (Typ.) |
| Response Time | 25 ms (Typ.) |
| Backlight Type | WLED |
| Contrast Ratio | 800:1 (Typ.) |
| Storage Temperature | -20 ~ 60 °C |
| Operating Temperature | 0 ~ 50 °C |
| Warranty | 3-Year Warranty |
| Weight | 360g (Max.) |
| Dimensions | 350.66(H) × 216.15(V) × 3.2(D) mm |
Key Features
The AUO B156HAN02.1 is a 15.6-inch Full HD laptop LCD panel designed for notebook computers and compatible display applications. It provides a 1920×1080 resolution in a 16:9 format and uses an AHVA/IPS-type normally-black display mode for wide viewing angles. The panel features a matte anti-glare surface, WLED backlight, 250 cd/m² typical brightness and an 800:1 typical contrast ratio. It uses a 30-pin, 2-lane eDP 1.2 interface and operates from a typical 3.3V input. The panel has a slim 3.2mm maximum thickness and is suitable for laptop LCD replacement applications where the exact panel model and connector configuration match.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this AUO B156HAN02.1 15.6" FHD IPS Laptop LCD Display Panel (B156HAN02.1) is 100% genuine AUO hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This AUO B156HAN02.1 15.6" FHD IPS Laptop LCD Display Panel includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the AUO B156HAN02.1 15.6" FHD IPS Laptop LCD Display Panel compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the B156HAN02.1.
