Broadcom LSI SAS 9300-8i 12Gb/s SAS3 PCIe HBA – LSI 9300-8i
Brand: Broadcom · SKU: LSI 9300-8i · MPN: LSI 9300-8i · Category: Components
Broadcom LSI SAS 9300-8i LSI 9300-8i is a PCIe 3.0 x8 SAS3 HBA with eight internal 12Gb/s SAS/SATA ports and dual SFF-8643 connectors.
Specifications
| type | Non-RAID HBA |
|---|---|
| ports | 8x Internal (2x SFF-8643) |
| speed | 12 Gb/s SAS/SATA |
| interface | PCIe 3.0 x8 |
| Dimensions | Approximately 6.0 × 2.7 inches |
| Form Factor | Low-profile PCIe board |
| RAID Support | Integrated RAID support for RAID 0, RAID 1, RAID 10 and RAID 1E with appropriate firmware/configuration |
| Part Number / MPN | LSI 9300-8i |
| Internal Connectors | 2 × SFF-8643 Mini-SAS HD, x4 each |
| Storage Connectivity | Internal SAS/SATA drives and backplanes |
| Warranty | 3 Years |
| Weight | 0.30 lbs |
| Dimensions | Half-Height, Half-Length PCIe |
Key Features

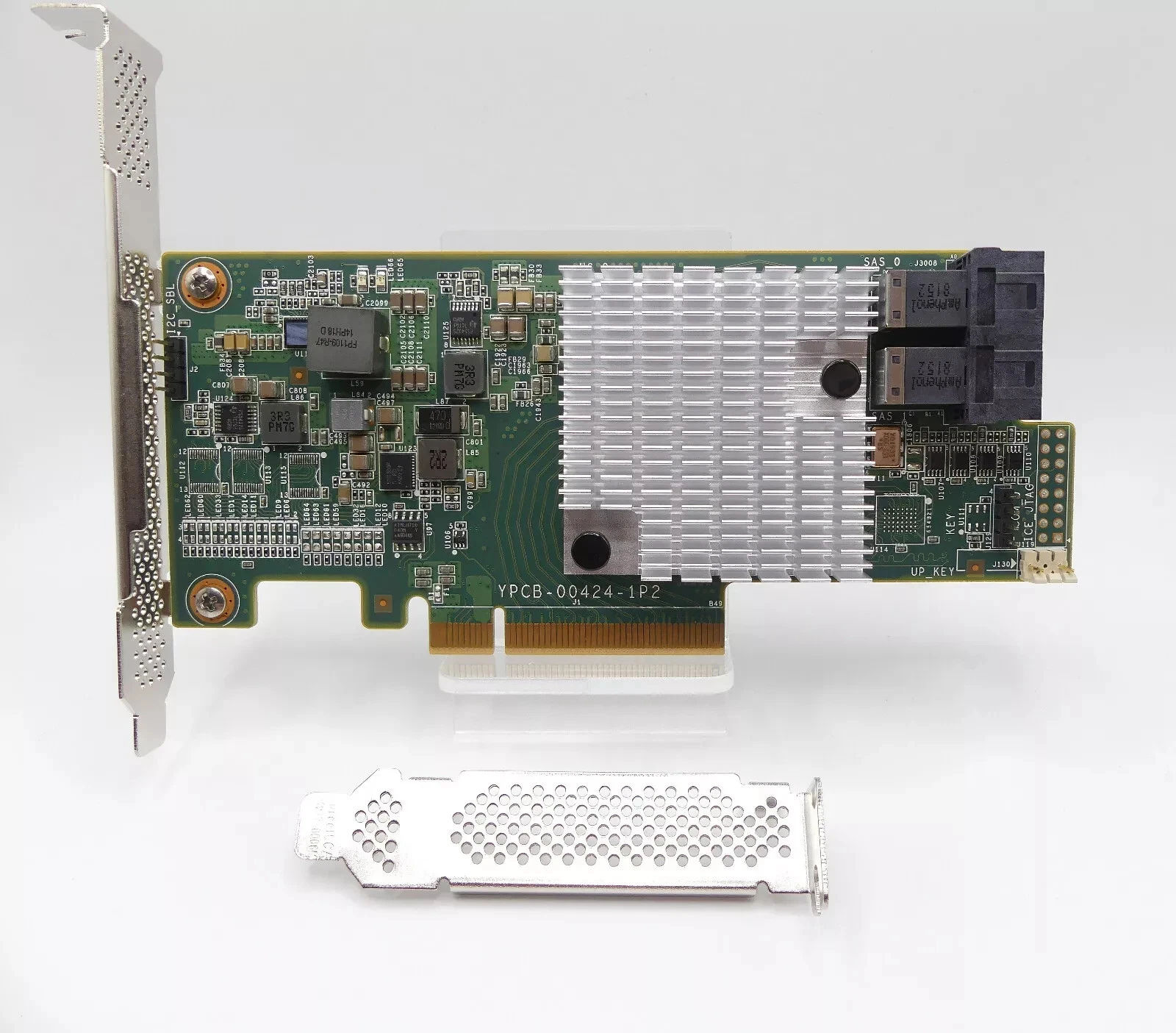

The Broadcom LSI SAS 9300-8i LSI 9300-8i is a high-performance 12Gb/s SAS3 Host Bus Adapter designed to provide reliable internal storage connectivity for servers and workstations. Based on the LSI SAS 3008 Fusion-MPT controller, it provides eight lanes of SAS connectivity and an eight-lane PCIe 3.0 host interface. The adapter features two internal SFF-8643 Mini-SAS HD connectors, supporting up to eight internal SAS/SATA ports. It supports SAS link rates up to 12Gb/s and SATA speeds up to 6Gb/s, making it suitable for connecting enterprise HDDs, SSDs, and compatible storage backplanes. The low-profile board is supplied with full-height and low-profile mounting options for flexible server installation.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Broadcom LSI SAS 9300-8i 12Gb/s SAS3 PCIe HBA – LSI 9300-8i (LSI 9300-8i) is 100% genuine Broadcom hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Broadcom LSI SAS 9300-8i 12Gb/s SAS3 PCIe HBA – LSI 9300-8i includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Broadcom LSI SAS 9300-8i 12Gb/s SAS3 PCIe HBA – LSI 9300-8i compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the LSI 9300-8i.
