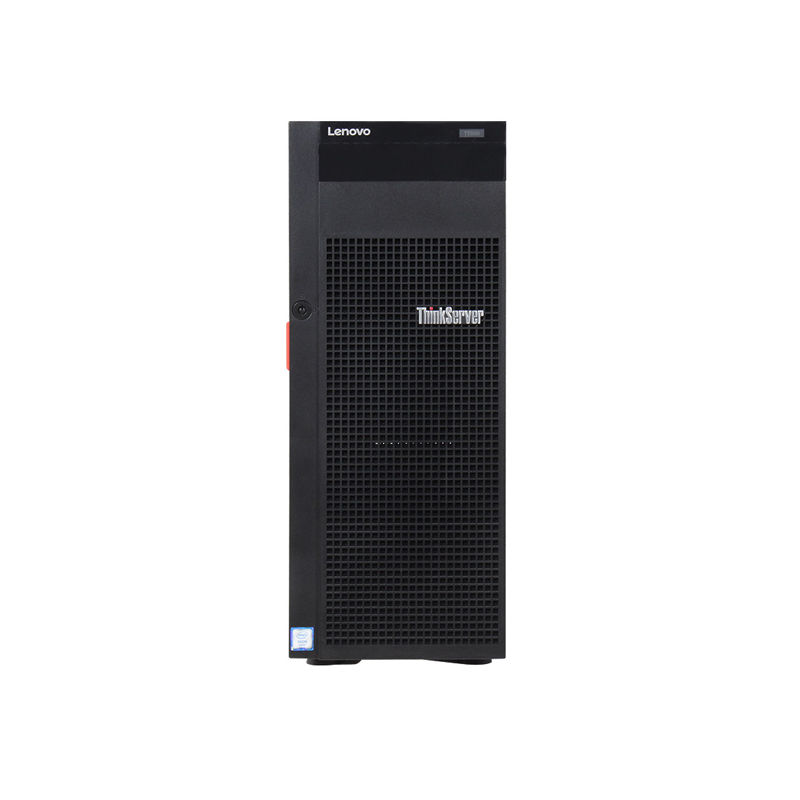

LENOVOST558001, Lenovo ST558 Server, 1x3204 6C 1.9GHz/1x16GB DDR4/4x3.5" Hot Plug Bay
SKU: LENOVOST558001 · MPN: LENOVOST558001 · Category: Components
$1,668.79
In Stock • 10 units
Lenovo Server ST558 1x3204 6C 1.9GHz, 1x16GB DDR4, 4x3.5 Hot plug bay, No disk, R530-8i, 550W Platinum Redundant Single PS, DVDRW, 3-year limited warranty and door-to-door S-ERVER
Specifications
| Ports | Front: Two USB ports (one USB 3.0, one USB 2.0 port Rear: Six USB ports (four USB 2.0, two USB 3.0), one VGA video, one RJ-45 systems management, two RJ-45 GbE network ports, optional serial port. Internal: One internal USB 3.0 port for RDX drive |
|---|---|
| Video | G200 graphics with 16 MB memory with 2D hardware accelerator, integrated into the XClarity Controller. Maximum resolution is 1920x1200 32bpp at 60Hz. |
| Memory | Up to 12 DIMM sockets (6 DIMMs per processor) supporting Lenovo TruDDR4 DIMMs at up to 2666 MHz. RDIMMs and LRDIMMs (Load Reduced DIMMs) are supported, but memory types cannot be intermixed. |
| Chipset | Intel C624 "Lewisburg" chipset |
| Cooling | Supports ASHRAE A2 environments as well as A3/A4 with some limitations. Up to four simple-swap fans: two fans shipped standard on single processor models and three fans shipped on dual processor models or models where there are drive bays in lieu of the optical drive bays. The fourth rear-mounted fan is N+1 redundant, except for certain configurations. |
| Processor | One or two Intel Xeon Processor Scalable Family of processors, either Bronze, Silver, Gold or Platinum-level processors (formerly codename "Skylake"). Supports processors up to 20 cores, core speeds up to 3.6 GHz, and TDP ratings up to 125W. Two Intel Ultra Path Interconnect (UPI) links at 10.4 GT/s each. |
| Dimensions | Width: 176 mm (6.9 in.), height: 438 mm (17.2 in.), depth: 660 mm (26 in.) |
| Form factor | Tower or 4U Rack. |
| Machine type | 7X09 - 1 year warranty 7X10 - 3 year warranty |
| Power supply | Up to two redundant hot-swap 550 W, 750 W or 1100 W High Efficiency Platinum AC power supplies, or 750 W High Efficiency Titanium AC power supplies. Also available is a 450 W fixed (non-hot-swap) power supply. In China only, all hot-swap power supplies also support 240V DC. |
| Hot-swap parts | Hard drives, power supplies, and fans |
| Disk drive bays | Available configurations: 8, 16, or 20x 2.5-inch SAS/SATA hot-swap (optional support for NVMe drives) 4 or 8x 3.5-inch SAS/SATA hot-swap Both 8x 3.5-inch + 4x 2.5-inch SAS/SATA hot-swap 4 or 8x 3.5-inch SATA simple-swap Additional drive bays (except for 20-bay and hybrid configurations): Two 5.25-inch drive bays for optical drives |
| Memory maximums | With RDIMMs: Up to 384 GB with 12x 32 GB RDIMMs and two processors With LRDIMMs: Up to 768 GB with 12x 64 GB LRDIMMs and two processors |
| Tape drive bays | Two half-height 5.25-inch bays for optical or tape drives. Support for one RDX drive or LTO tape drive. |
| Limited warranty | Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
| Memory protection | ECC, SDDC (for x4-based memory DIMMs), ADDDC (for x4-based memory DIMMs, requires Intel Xeon Gold or Platinum processors), memory mirroring, and memory sparing. |
| Security features | Power-on password, administrator's password, Trusted Platform Module (TPM), supporting TPM 1.2 or TPM 2.0. In China only, optional Trusted Cryptographic Module (TCM). Kensington cable slot. Lockable side cover. Optional lockable front security door and chassis intrusion switch (included with some models). |
| Network interfaces | Two integrated Gigabit Ethernet 1000BASE-T ports (RJ-45) based on Intel X722 embedded controller (No 10/100 Mbps support) |
| Optical drive bays | Two half-height 5.25-inch bays for optical or tape drives. Supports DVD-ROM or Multiburner. Hot-swap bays can be converted to 4x 2.5-inch hot-swap drive bays. (Not available with simple-swap drive configurations.) |
| Storage controller | Onboard 6 Gb SATA for simple-swap drive configurations, using embedded Intel RSTe software RAID, supporting RAID 0, 1, 10, 5, 50 12 Gb SAS/SATA RAID for hot-swap drive configurations: RAID 530i (cacheless) supports RAID 0, 1, 10, 5, 50 RAID 730-8i with 1GB cache supports RAID 0, 1, 10, 5, 50 RAID 730-8i with 2GB flash-backed cache supports RAID 0, 1, 10, 5, 50, 6, 60 RAID 930-8i with 2GB flash-backed cache supports RAID 0, 1, 10, 5, 50, 6, 60 RAID 930-16i and 24i with 4GB flash-backed cache supports RAID 0, 1, 10, 5, 50, 6, 60 12 Gb SAS/SATA non-RAID: 430-8i and 430-16i HBAs |
| Systems management | Operator panel with status LEDs. XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management. Optional XClarity Controller Advanced to enable remote control functions. |
| PCI Expansion slots | Up to 7 PCIe slots: 6 general purpose PCIe 3.0 slots plus one slot reserved for the M.2 adapter. General purpose slots are as follows: Slot 1: PCIe 3.0 x8 (25W) FHHL Slot 2: PCIe 3.0 x16 (75W); FHHL Slot 3: PCIe 3.0 x16 (75W); FHFL Slot 4: PCIe 3.0 x16 (x8 wired) (25W); FHFL (requires second processor) Slot 5: PCIe 3.0 x16 (75W); FHFL (requires second processor) Slot 6: PCIe 3.0 x8 (x4 wired) (25W); FHFL Slots 3 and 5 support double-wide GPUs |
| Service and support | Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for Lenovo hardware and some third-party applications. |
| Maximum internal storage | 2.5-inch drives: 153.6TB using 20x 7.68TB 2.5-inch SAS/SATA SSDs 30.72TB using 4x 7.68TB 2.5-inch NVMe SSDs 48TB using 20x 2.4TB 2.5-inch HDDs 3.5-inch drives: 144TB using 8x 18TB 3.5-inch HDDs 61.44TB using 8x 7.68TB 3.5-inch SAS/SATA SSDs |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this LENOVOST558001, Lenovo ST558 Server, 1x3204 6C 1.9GHz/1x16GB DDR4/4x3.5" Hot Plug Bay (LENOVOST558001) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This LENOVOST558001, Lenovo ST558 Server, 1x3204 6C 1.9GHz/1x16GB DDR4/4x3.5" Hot Plug Bay includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the LENOVOST558001, Lenovo ST558 Server, 1x3204 6C 1.9GHz/1x16GB DDR4/4x3.5" Hot Plug Bay compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the LENOVOST558001.
