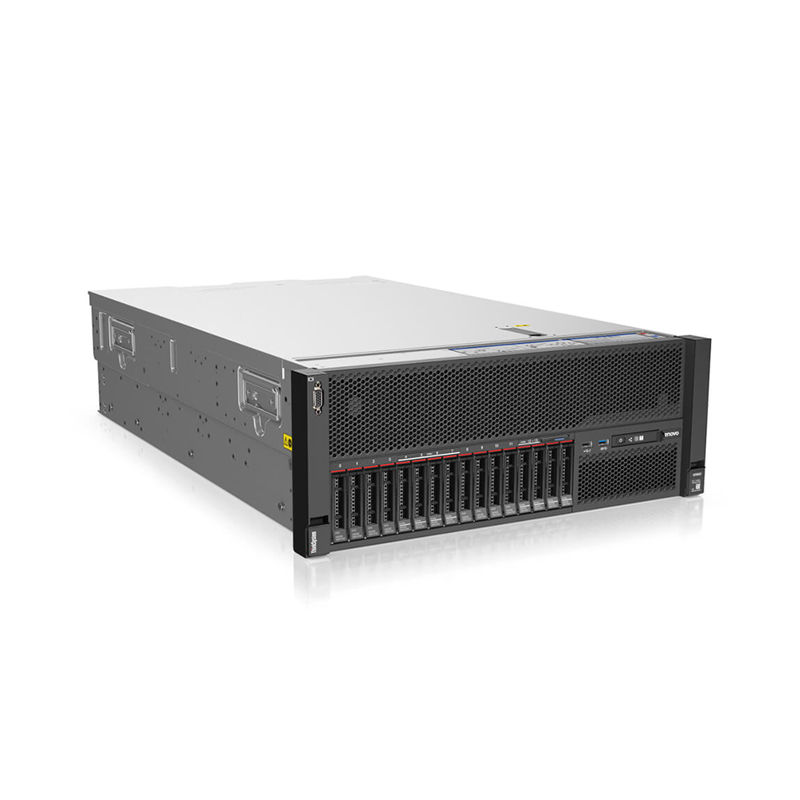

LENOVOSR860002, Lenovo SR860 Server, 2xIntel 5220 18C/2x32GB DDR4/4x1G NIC
SKU: LENOVOSR860002 · MPN: LENOVOSR860002 · Category: Components
Lenovo Server SR860 2*5220 18C 2.2GHz, Support Up to 4 CPU, 2*32GB TruDDR4 2666 MHz (1Rx4 1.2V) RDIMM Memory, Support Up to 48 DDR4 Memory Slots, No disk, Support 8*2.5" Disk, RAID730i w/1GB cache, 4x1G Network Card, 2*1100W, 3Y 7*24*4 S-ERVER
Specifications
| Power | 2x hot-swap/redundant: 750W/1100W/1600W/2000 AC 80 PLUS Platinum |
|---|---|
| Memory | Up to 6TB in 48x slots (with 4x CPUs) using 128GB DIMMs; 2666MHz / 2933MHz; TruDDR4 |
| Expansion | Up to 11x PCIe plus 1x LOM; optional 1x ML2 slot |
| OS Support | Microsoft, Red Hat, SUSE, VMware. |
| Processors | 2 or 4 second-generation Intel® Xeon® Processor Scalable family CPUs, up to 165W |
| Form Factor | 4U |
| GPU Support | Up to 2x supported GPUs |
| RAID Support | HW RAID (up to 16 ports) with flash cache; up to 16-port HBAs |
| Internal Storage | Up to 16x 2.5" storage bays supporting SAS/SATA HDD and SSDs or up to 8x 2.5" NVMe SSD; plus up to 2x mirrored M.2 boot |
| Limited Warranty | 1-year and 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades |
| Network Interface | Multiple options with 1GbE, 10GbE, 25GbE, 32GbE, 40GbE or InfiniBand PCIe adapters; one (2-/4port) 1GbE or 10GbE LOM card |
| Systems Management | XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management |
| Security and Availability | TPM 1.2/2.0; PFA; hot-swap/redundant drives, and PSUs; redundant fans; internal light path diagnostic LEDs; front-access diagnostics via dedicated USB port; optional diagnostic LCD panel |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this LENOVOSR860002, Lenovo SR860 Server, 2xIntel 5220 18C/2x32GB DDR4/4x1G NIC (LENOVOSR860002) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This LENOVOSR860002, Lenovo SR860 Server, 2xIntel 5220 18C/2x32GB DDR4/4x1G NIC includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the LENOVOSR860002, Lenovo SR860 Server, 2xIntel 5220 18C/2x32GB DDR4/4x1G NIC compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the LENOVOSR860002.
