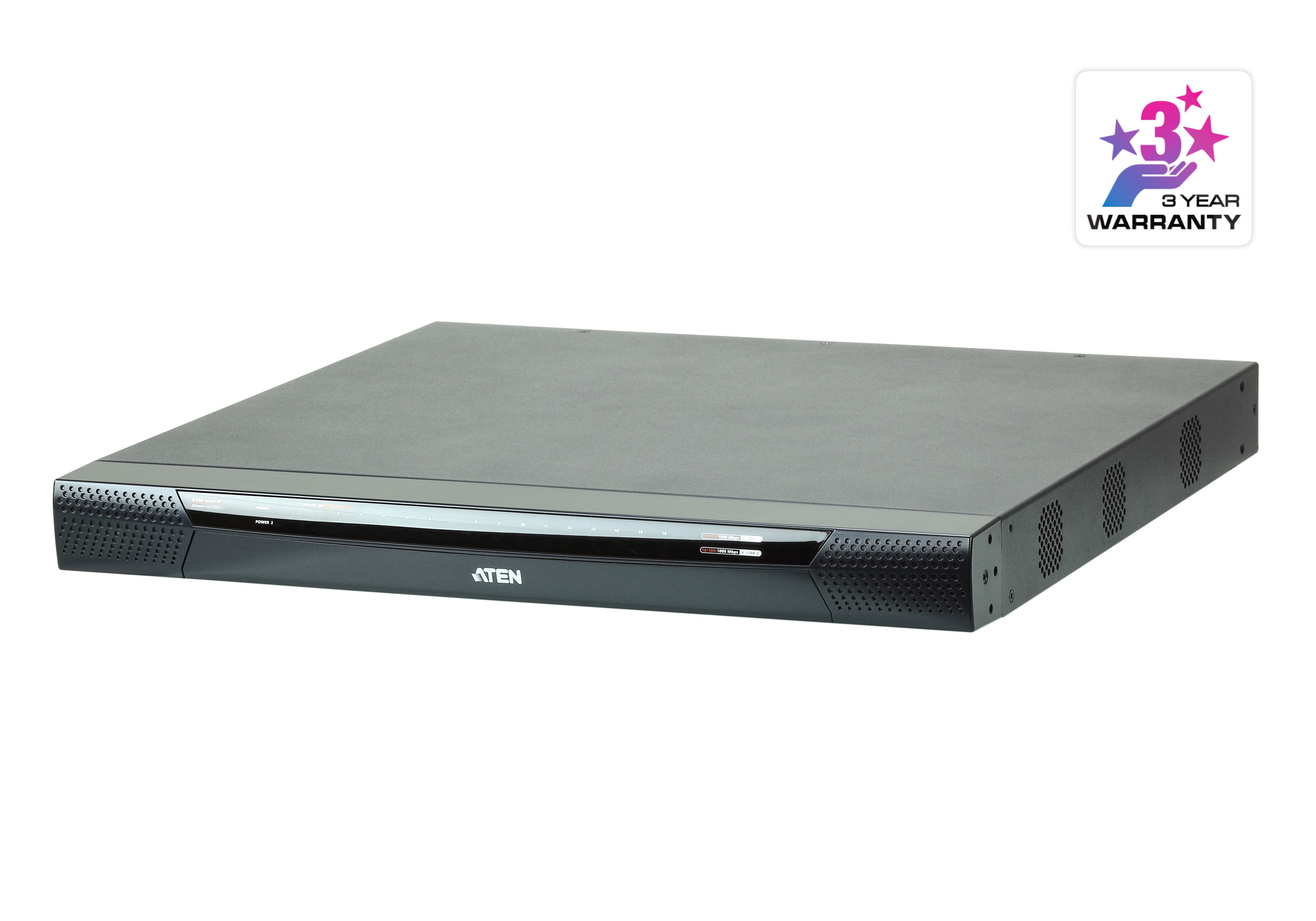

ATEN KN2116A KVM switch Rack mounting Black
Brand: ATEN · SKU: KN2116A · MPN: KN2116A · Category: Data Center
ATEN KN2116A, 1600 x 1200 pixels, Ethernet LAN, Rack mounting, 33.8 W, 1U, Black. ATEN KN2116A KVM switch Rack mounting Black (part number KN2116A) is an enterprise kvm switches product available from Server Tech Central. Key specifications include depth 433.6 mm, width 413.5 mm, height 44 mm, manual Yes, weight 5.46 kg, colour depth 32 bit, ethernet lan Yes, rack capacity 1U. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 433.6 mm |
|---|---|
| Width | 413.5 mm |
| Height | 44 mm |
| Manual | Yes |
| Weight | 5.46 kg |
| Colour depth | 32 bit |
| Ethernet LAN | Yes |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Scan interval | 255 s |
| LED indicators | Yes |
| Ports quantity | 16 |
| Product colour | Black |
| Number of users | 32 user(s) |
| Housing material | Metal |
| Maximum resolution | 1600 x 1200 pixels |
| Data link protocols | TCP, IP, HTTP, HTTPS, DNS, DHCP, PPP, UDP, ARP, ICMP, SMTP, RADIUS, LDAP, LDAPS |
| Security algorithms | 256-bit AES, 3DES, 802.1x RADIUS, DES, SSL/TLS |
| Management protocols | SMTP |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| USB 2.0 ports quantity | 3 |
| Compliance certificates | RoHS |
| Connectivity technology | Wired |
| Quick installation guide | Yes |
| Warranty | 3-Year Warranty |
| Weight | 5.46 kg |
| Dimensions | 413.5 mm x 433.6 mm x 44 mm |
Product Description
Aten´s new generation of KVM over IP switches - KN series allows local console access and remote over IP access for operators to monitor and access their entire data center over a network using a web-based browser. In addition, they offer out-of-band access with external modem support for BIOS-level troubleshooting when the network is down. To help you manage and control an entire data center, our KVM over IP switches support blade servers and chassis. With powerful new features such as Power Association – KVM ports can be associated with ATEN PDU power outlets for power management of servers from the KVM over IP switches user interface. KVM over IP switches now support the new Control Center Video Session Recorder (CCVSR) software. The CCVSR records all operations made on servers accessed through KVM over IP switches. Every operation and change from the BIOS level to logging in, from running software applications to configuring the operating system- is recorded and saved to a secure video file as evidence, without exception. Enhanced capabilities of KVM over IP switches also include: a Message Board, Panel Array Mode™, Mouse DynaSync™, and Adapter ID. With dual on-board NICs, the KVM over IP switches are built for reliability, to ensure 24/7 availability of remote access to all server room computers. Should one of the IP become unavailable, the other will take over in order to keep the system functioning normally. With Aten KVM over IP switches IT administrators can manage their server rooms and data centers from practically anywhere – minimizing travel costs and MTTR (Mean Time to Repair) – ensuring the highest availability of data center services possible.
Key Features
ATEN KN2116A. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Security algorithms: 256-bit AES, 3DES, 802.1x RADIUS, DES, SSL/TLS. Maximum resolution: 1600 x 1200 pixels, Scan interval: 255 s, Number of users: 32 user(s). Product colour: Black, Rack capacity: 1U, Housing material: Metal. Power consumption (typical): 33.8 W. Compliance certificates: RoHS
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ATEN KN2116A KVM switch Rack mounting Black (KN2116A) is 100% genuine ATEN hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ATEN KN2116A KVM switch Rack mounting Black includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ATEN KN2116A KVM switch Rack mounting Black compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the KN2116A.
