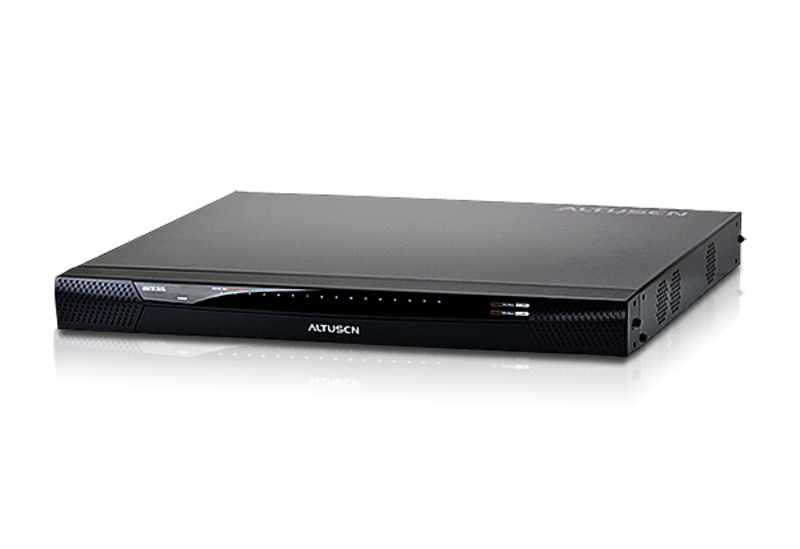

ATEN KN2116V KVM switch Rack mounting Black
Brand: ATEN · SKU: DCP2992 · MPN: DCP2992 · Category: Data Center
ATEN KN2116V, 1600 x 1200 pixels, Ethernet LAN, Rack mounting, 38.7 W, 1U, Black. ATEN KN2116V KVM switch Rack mounting Black (part number DCP2992) is an enterprise kvm switches product available from Server Tech Central. Key specifications include depth 433.6 mm, width 413.5 mm, height 44 mm, weight 5.91 kg, dc-in jack Yes, push button Yes, usb powered No, console port RJ-45. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 433.6 mm |
|---|---|
| Width | 413.5 mm |
| Height | 44 mm |
| Weight | 5.91 kg |
| DC-in jack | Yes |
| Push button | Yes |
| USB powered | No |
| Console port | RJ-45 |
| Ethernet LAN | Yes |
| Compatibility | PC, Mac, Sun |
| Input voltage | 100-240 V |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Scan interval | 255 s |
| LED indicators | Link, Power |
| Product colour | Black |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| Built-in display | No |
| Housing material | Metal |
| Audio connections | Yes |
| Headphone outputs | 1 |
| AC input frequency | 50 - 60 Hz |
| Cabling technology | 10/100/1000Base-T(X) |
| Warranty | 3-Year Warranty |
| Weight | 5.91 kg |
| Dimensions | 413.5 mm x 433.6 mm x 44 mm |
Product Description
The new generation of KVM over the NET™ switches allows local and remote operators to monitor and access the entire enterprise data center over the Internet using a web-based browser. In addition, they offer out-of-band access – including external modem support – for BIOS-level troubleshooting when the network is down. To help you manage and control your entire datacenter environment, we now support blade servers and chassis. Also, there are some new powerful features such as Power Association, which enables the switch’s KVM ports to be associated with power outlets on an ATEN/ALTUSEN PDUs – therefore allowing power management of the server attached to the port from the switch’s interface. The KVM Over the NET™ switches’ powerful capabilities further include: Message Board, Panel Array Mode, Mouse DynaSync, and Adapter ID. To help you manage and control your entire datacenter environment, we now support blade servers and chassis. Also, there are some new powerful features such as Power Association, which enables the switch´s KVM ports to be associated with power outlets on an ATEN/ALTUSEN PDUs – therefore allowing power management of the server attached to the port from the switch´s interface. If a server has dual power supply, secondary power association lets you associate a second outlet port and synchronize the operation for both power supplies. The KVM Over the NET™ switches´ powerful capabilities further include: Message Board , Panel Array Mode™, Mouse DynaSync™, Adapter ID, and Virtual Media. The Virtual Media function lets you map USB storage media (including DVD/CD drives), and image files to a remote server – allowing administrators to conduct file transfers, install applications and OS patches, and perform diagnostics remotely with ease. With their dual on-board NICs and dual power supplies, these switches are built for 24/7 reliability to ensure the highest rate of availability for your server room and data center services. The switch´s design also features Green IT solutions that include four temperature sensors to regulate up to six fans – making sure they are always running at optimum speed – throttling down and speeding up depending on the room temperature, reducing data center IT operation costs through a more efficient way of using energy. With ALTUSEN KVM over the NET™ switches, IT administrators can manage their server rooms and data centers from practically anywhere – minimizing travel costs and MTTR (Mean Time to Repair) – and ensuring the highest availability of data center services possible.
Key Features
ATEN KN2116V. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. Cabling technology: 10/100/1000Base-T(X). Maximum resolution: 1600 x 1200 pixels, Scan interval: 255 s. Product colour: Black, Rack capacity: 1U, Housing material: Metal. Input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Power consumption (typical): 38.7 W
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ATEN KN2116V KVM switch Rack mounting Black (DCP2992) is 100% genuine ATEN hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ATEN KN2116V KVM switch Rack mounting Black includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ATEN KN2116V KVM switch Rack mounting Black compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DCP2992.
