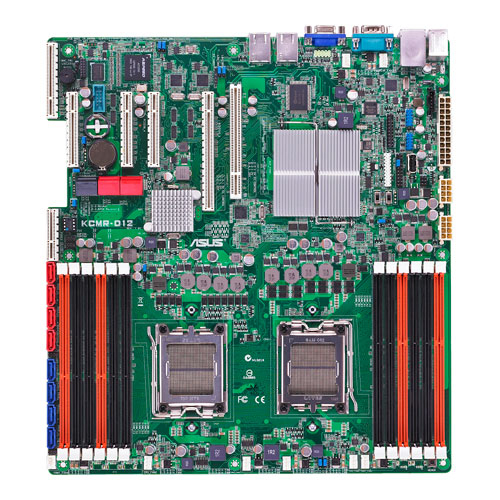

ASUS KCMR-D12 motherboard AMD SR5670 Socket F (1207) SSI EEB
Brand: ASUS · SKU: KCMR-D12 · MPN: KCMR-D12 · Category: Components
ASUS KCMR-D12, Socket F (1207), 128 GB, Dual-channel, ECC & Non-ECC, 667,800,1066,1333 MHz, 0, 1, 5, 10
Specifications
| PCI slots | 1 |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| Certification | FCC, CE |
| LAN controller | Intel® 82574L |
| Memory channels | Dual-channel |
| Bundled software | ASWM |
| Processor socket | Socket F (1207) |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 3 |
| Motherboard chipset | AMD SR5670 |
| PS/2 ports quantity | 1 |
| Number of DIMM slots | 12 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| Serial ports quantity | 1 |
| USB 2.0 ports quantity | 3 |
| Maximum internal memory | 128 GB |
| Motherboard form factor | SSI EEB |
| PCI Express slots version | 2.0 |
| Storage temperature (T-T) | -40 - 70 °C |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
| Operating temperature (T-T) | 10 - 35 °C |
| Supported memory clock speeds | 667,800,1066,1333 MHz |
| Warranty | 3-Year Warranty |
Product Description
Recipe to Build Cost Competitive AMD Opteron™ 4100 Rack Platform Support Up-to-Date AMD 4100 CPU The ASUS KCMR-D12 is based on the latest AMD Lisbon platform to support 45nm Opteron™ 4100 series processors. The high C/P value processor delivers 6-core/ 4-core multi-core, and outstanding performance-per-watt, saving up to 22% power consumption compared to previous Opteron™ 2400 series processor. The platform is designed for power efficient and cost efficient 2-way server solutions (Information is from www.amd.com). Built in Linux RAID 5 Solution For better data protection, the KCMR-D12 has built in Promise® ROMB (RAID on Motherboard) to support RAID 0, 1, 10 and RAID5 in both Windows and Linux operating system. The complete, fast and efficient RAID Solution benefit enterprise customers in maximizing SATA storage system performance. High 85%+ Vcore Power Efficiency The KCMR-D12 delivers 85%+ power efficiency, while CPU is under 30% to 90% working lord; it can reach up to 88% of the power efficiency and then save power bill for users. Hence, the longer you use, the more expenses you can save. High Quality Components for Greater System Reliability The solid and long life conductive polymer capacitors (sustaining 5,000 hrs @ 105℃) in KCMR-D12 ensure longer component life and lower power consumption — creating higher efficiency. ASUS Flex-E Provides Flexible Alternatives of Expansion The ASUS Flex-E Technology provides flexibility of using PCIe Gen2 interface and bandwidth. It automatically switches between 1 PCI-Ex16 link (Graphic card supported) and 2 PCI-E x8 link (for I/O expansion), allowing users to use PCI-E flexibly. ASUS PIKE SAS2 6G Storage Supported ASUS optional PIKE provides slim-sized and flexible storage options, SAS RAID upgrades can be achieved directly via a unique slot—without sacrificing expansion capability. Also, KCMR-D12 supports the latest SAS2 6Gb/s storage through PIKE interface, doubling transmission speed of SAS 3Gb/s. ASUS PIKE 2008 is for RAID 0, 1, 10 and 1E; PIKE 2008/IMR is for RAID 0, 1, 10, 5 and 50; PIKE 2108 is a hardware RAID solution, which can support high performance RAID 0, 1, 10, 5, 6, 50 and 60. The ASUS PIKE even provides users the multiple I/O solution and RAID functions. Built in BMC engine, IPMI 2.0 + KVM-over-IP enabled by ASMB4 Module The optional ASMB4-iKVM provides remotely real-time and full control via accessing to the system based on BIOS-level keyboard, video monitor, and mouse (KVM over Ethernet) from any local computer anywhere, anytime.
Key Features
ASUS KCMR-D12. Processor socket: Socket F (1207). Maximum internal memory: 128 GB, Memory channels: Dual-channel, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1, 5, 10. LAN controller: Intel® 82574L. Motherboard form factor: SSI EEB, Motherboard chipset: AMD SR5670, Certification: FCC, CE
