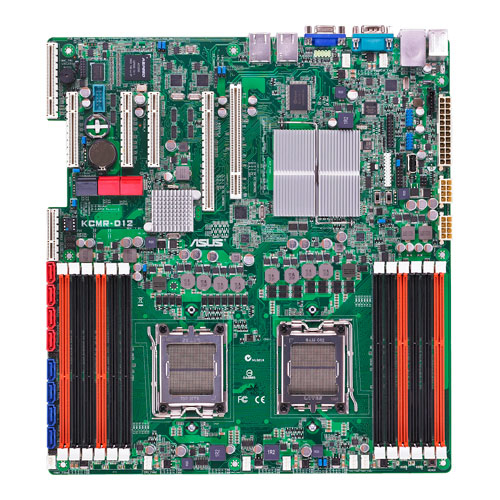

ASUS KCMR-D12 AMD SR5670 Socket F (1207)
Brand: ASUS · SKU: 90-MSVD81-G0UAY0YZ · MPN: 90-MSVD81-G0UAY0YZ · Category: Components
ASUS KCMR-D12, AMD, Socket F (1207), 4100, 4200, DDR3-SDRAM, 667,800,1066,1333 MHz, 128 GB
Specifications
| Depth | 330.2 mm |
|---|---|
| Wi-Fi | No |
| Width | 304.8 mm |
| PCI slots | 1 |
| User guide | Yes |
| Ethernet LAN | Yes |
| Processor socket | Socket F (1207) |
| AMD Opteron series | 4100, 4200 |
| USB 2.0 connectors | 3 |
| Motherboard chipset | AMD SR5670 |
| PS/2 ports quantity | 1 |
| Serial port headers | 1 |
| Maximum RDIMM memory | 128 GB |
| Maximum UDIMM memory | 32 GB |
| Number of DIMM slots | 12 |
| PCI Express x8 slots | 3 |
| PCI Express x16 slots | 1 |
| Serial ports quantity | 1 |
| On-board graphics card | Yes |
| Processor manufacturer | AMD |
| Supported memory types | DDR3-SDRAM |
| USB 2.0 ports quantity | 1 |
| Ethernet interface type | Gigabit Ethernet |
| PCI Express slots version | 2.0 |
| Warranty | 3-Year Warranty |
| Dimensions | 304.8 mm x 330.2 mm |
Product Description
Support Up-to-Date AMD 4200/4100 CPU The ASUS KCMR-D12 is based on the latest AMD Lisbon platform to support 45nm Opteron™ 4200/4100 series processors. The high C/P value processor delivers 6-core/ 4-core multi-core, and outstanding performance-per-watt, saving up to 22% power consumption compared to previous Opteron™ 2400 series processor. The platform is designed for power efficient and cost efficient 2-way server solutions (Information is from www.amd.com). Built in Linux RAID 5 Solution For better data protection, the KCMR-D12 has built in Promise® ROMB (RAID on Motherboard) to support RAID 0, 1, 10 and RAID5 in both Windows and Linux operating system. The complete, fast and efficient RAID Solution benefit enterprise customers in maximizing SATA storage system performance. High 85%+ Vcore Power Efficiency The KCMR-D12 delivers 85%+ power efficiency, while CPU is under 30% to 90% working lord; it can reach up to 88% of the power efficiency and then save power bill for users. Hence, the longer you use, the more expenses you can save. High Quality Components for Greater System Reliability The solid and long life conductive polymer capacitors (sustaining 5,000 hrs @ 105℃) in KCMR-D12 ensure longer component life and lower power consumption — creating higher efficiency. ASUS Flex-E Provides Flexible Alternatives of Expansion The ASUS Flex-E Technology provides flexibility of using PCIe Gen2 interface and bandwidth. It automatically switches between 1 PCI-Ex16 link (Graphic card supported) and 2 PCI-E x8 link (for I/O expansion), allowing users to use PCI-E flexibly. ASUS PIKE SAS2 6G Storage Supported ASUS optional PIKE provides slim-sized and flexible storage options, SAS RAID upgrades can be achieved directly via a unique slot—without sacrificing expansion capability. Also, KCMR-D12 supports the latest SAS2 6Gb/s storage through PIKE interface, doubling transmission speed of SAS 3Gb/s. ASUS PIKE 2008 is for RAID 0, 1, 10 and 1E; PIKE 2008/IMR is for RAID 0, 1, 10, 5 and 50; PIKE 2108 is a hardware RAID solution, which can support high performance RAID 0, 1, 10, 5, 6, 50 and 60. The ASUS PIKE even provides users the multiple I/O solution and RAID functions. Built in BMC engine, IPMI 2.0 + KVM-over-IP enabled by ASMB4 Module The optional ASMB4-iKVM provides remotely real-time and full control via accessing to the system based on BIOS-level keyboard, video monitor, and mouse (KVM over Ethernet) from any local computer anywhere, anytime.
Key Features
ASUS KCMR-D12. Processor manufacturer: AMD, Processor socket: Socket F (1207), AMD Opteron series: 4100, 4200. Supported memory types: DDR3-SDRAM, Supported memory clock speeds: 667,800,1066,1333 MHz, Maximum RDIMM memory: 128 GB. On-board graphics card model: Aspeed AST2050, On-board graphics card memory: 8 MB. Ethernet interface type: Gigabit Ethernet. Motherboard chipset: AMD SR5670
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS KCMR-D12 AMD SR5670 Socket F (1207) (90-MSVD81-G0UAY0YZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS KCMR-D12 AMD SR5670 Socket F (1207) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS KCMR-D12 AMD SR5670 Socket F (1207) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MSVD81-G0UAY0YZ.
