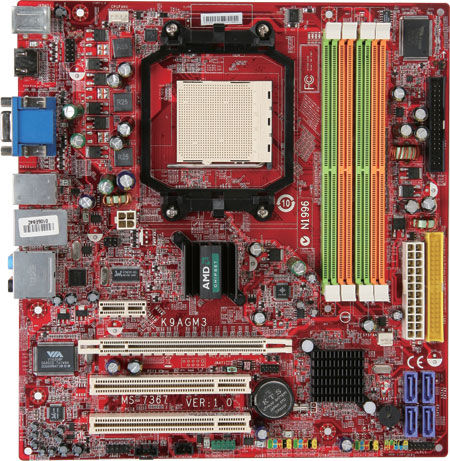

MSI K9AGM3-FD motherboard Socket AM2 micro ATX
Brand: MSI · SKU: K9AGM3-FD · MPN: K9AGM3-FD · Category: Components
MSI K9AGM3-FD, AMD, Socket AM2, AMD Sempron, 1000 MHz, 8 GB, 0, 1, 0+1
Specifications
| Depth | 230 mm |
|---|---|
| Width | 244 mm |
| Audio chip | Realtek ALC883 / ALC888 |
| RAID levels | 0, 1, 0+1 |
| LAN controller | Realtek RTL8101E |
| CD/AUX audio in | Yes |
| Expansion slots | 1 x PCI Express x16 1 x PCI Express x1 2 PCI |
| Processor socket | Socket AM2 |
| Power source type | ATX |
| USB 2.0 connectors | 6 |
| PS/2 ports quantity | 2 |
| DVI-D ports quantity | 1 |
| Audio output channels | 7.1 channels |
| Number of memory slots | 4 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 8 GB |
| Motherboard form factor | micro ATX |
| Number of SATA connectors | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Chassis intrusion connector | Yes |
| Compatible processor series | AMD Sempron |
| Floppy disk drive connector | Yes |
| Front panel audio connector | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 230 mm |
Product Description
CPU - AMD® Athlon 64 X2, Athlon 64, and Sempron in the Socket AM2 package. Please refer to CPU Support for compatible CPU; the above description is for reference only. FSB - HyperTransport supporting speed up to 1GHz (2000MT/s) Chipset - AMD® 690G and SB600 Chipset Main Memory - Supports dual channel DDR2 533/667/800 - 4 DDR2 DIMMs (240pin / 1.8V) - Supports a maximum memory size up to 8GB. Slots - 1 PCI Express x16 slot. - 1 PCI Express x1 slot. - 2 PCI slots, support 3.3V/ 5V PCI bus Interface. On-Board IDE - One IDE port by AMD® SB600. - Supports Ultra DMA 66/100/133 mode. - Supports PIO, Bus Master operation mode. - Can connect up to two IDE devices. On-Board SATA - 4 SATA II ports by AMD® SB600. - Supports storage and data transfers at up to 300 MB/s. RAID Function - SATA II 1~4 supports RAID 0, 1 and 0+1 mode by AMD® SB600.
Key Features
MSI K9AGM3-FD. Processor manufacturer: AMD, Processor socket: Socket AM2, Compatible processor series: AMD Sempron. Maximum internal memory: 8 GB. RAID levels: 0, 1, 0+1. LAN controller: Realtek RTL8101E. Motherboard form factor: micro ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC883 / ALC888
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI K9AGM3-FD motherboard Socket AM2 micro ATX (K9AGM3-FD) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI K9AGM3-FD motherboard Socket AM2 micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI K9AGM3-FD motherboard Socket AM2 micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the K9AGM3-FD.
