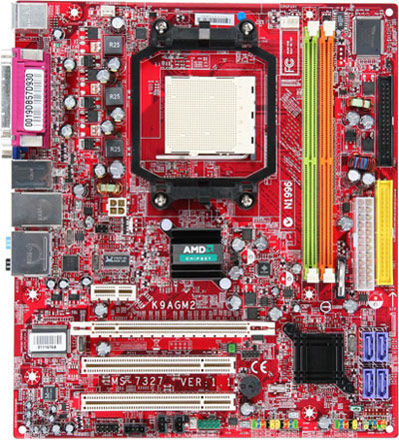

MSI K9AGM2-L Socket AM2 micro ATX
Brand: MSI · SKU: 7327-020R · MPN: 7327-020R · Category: Components
MSI K9AGM2-L, AMD, Socket AM2, AMD Athlon FX, AMD Sempron, 1000 MHz, 4 GB, 0, 1, 0+1
Specifications
| Depth | 215 mm |
|---|---|
| Width | 244 mm |
| Audio chip | Realtek ALC888 |
| RAID levels | 0, 1, 0+1 |
| Microphone in | Yes |
| LAN controller | Realtek RTL8101E |
| CD/AUX audio in | Yes |
| Expansion slots | 1xPCI Express x16, 1xPCI Express x1, 2xPCI |
| Processor socket | Socket AM2 |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| USB 2.0 connectors | 3 |
| Networking features | 10/100 Mbps |
| PS/2 ports quantity | 2 |
| RAID controller type | SATA II |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| Number of memory slots | 2 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 4 GB |
| Motherboard form factor | micro ATX |
| Parallel ports quantity | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 215 mm |
Product Description
Live Update 3 is a single utility software that automatically checks BIOS, driver and utility updates and installs for you , which can save your time for searching and lower the risk while updating. AMD Cool'n'Quiet™ technology that based on famous PowerNow™ technology just brings fresh air to hot-fighting desktop platform. Cool'n'Quiet technology can automatically adjust processor ratio to throttle CPU speed with four modes. This useful software detects system temperature, the status of voltage, fans and all other key components onboard. If any problem occurs, it will alert the user to correct the problem, reducing the risk of system damage. The MSI Live Update online is designed to automatically download and update the BIOS and driver when there’s a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website. CPU AMD® Athlon 64 X2, Athlon 64, Athlon FX and Sempron in the Socket AM2 package. Please refer to CPU Support for compatible CPU; the above description is for reference only. FSB HyperTransport supporting speed up to 1GHz (2000MT/s). Chipset AMD® 690V and SB600 Chipset. Main Memory -Supports Dual DDR2 400/533/667/800. -2 DDR2 DIMMs (240pin / 1.8V). -Supports a maximum memory size up to 4GB. Slots 1 PCI Express x16 slot. 1 PCI Express x1 slot. 2 PCI slots, support 3.3V/ 5V PCI bus Interface. On-Board IDE -One IDE port by AMD® SB600. -Supports Ultra DMA 66/100/133 mode. -Supports PIO, Bus Master operation mode. -Can connect up to two IDE devices. On-Board SATA -4 SATA II ports by AMD® SB600. -Supports storage and data transfers at up to 300 MB/s. RAID Function - SATA II 1~4 supports RAID 0, 1 and 0+1 mode by AMD® SB600 MSI Reminds You... - The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk. Audio -Chipset integrated by Realtek® ALC888. -Flexible 8-channel audio with jack sensing. -Compliant with Azalia 1.0 Spec. LAN Supports 10/100 Fast Ethernet by Realtek 8101E (K9AGM2-L).
Key Features
MSI K9AGM2-L. Processor manufacturer: AMD, Processor socket: Socket AM2, Compatible processor series: AMD Athlon FX, AMD Sempron. Maximum internal memory: 4 GB. RAID levels: 0, 1, 0+1. LAN controller: Realtek RTL8101E, Networking features: 10/100 Mbps. Motherboard form factor: micro ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC888
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI K9AGM2-L Socket AM2 micro ATX (7327-020R) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI K9AGM2-L Socket AM2 micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI K9AGM2-L Socket AM2 micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 7327-020R.
