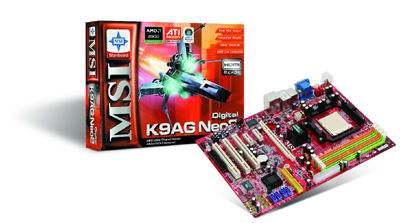

MSI K9AG Neo2-Digital Socket AM2 ATX
Brand: MSI · SKU: K9AG NEO2-DIGITAL · MPN: K9AG NEO2-DIGITAL · Category: Components
MSI K9AG Neo2-Digital, AMD, Socket AM2, AMD Sempron, 1000 MHz, 8 GB, 256 MB
Specifications
| I/O ports | 1 x IDE 133 |
|---|---|
| Expansion slots | 3 x PCI 2 x PCI-E (x1) |
| Processor socket | Socket AM2 |
| Power source type | ATX |
| USB 2.0 connectors | 6 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Audio output channels | 7.1 channels |
| Number of memory slots | 4 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 8 GB |
| Motherboard form factor | ATX |
| Number of SATA connectors | 4 |
| Firewire (IEEE 1394) ports | 1 |
| Compatible processor series | AMD Sempron |
| Compatible operating systems | Vista Ptemium |
| Maximum graphics card memory | 256 MB |
| Number of IEEE1394 connectors | 1 |
| Processor system buses supported | 1000 MHz |
| Warranty | 3-Year Warranty |
Product Description
CPU - AMD® Athlon 64 X2, Athlon 64, and Sempron in the Socket AM2 package. Please refer to CPU Support for compatible CPU; the above description is for reference only. FSB - HyperTransport supporting speed up to 1GHz (2000MT/s) Chipset - AMD® 690G and SB600 Chipset Main Memory - Supports dual channel DDR2 533/667/800. - 4 DDR2 DIMMs (240pin / 1.8V). - Supports a maximum memory size up to 8GB. Slots - 1 PCI Express x16 slot - 2 PCI Express x1 slots - 3 PCI slots, support 3.3V/ 5V PCI bus Interface. On-Board IDE - One IDE port by AMD® SB600 - Supports Ultra DMA 66/100/133 mode - Supports PIO, Bus Master operation mode - Can connect up to two IDE devices On-Board SATA - 4 SATA II ports by AMD® SB600 - Supports storage and data transfers at up to 300 MB/s RAID Function - SATA II 1~4 supports RAID 0, 1 and 0+1 mode by AMD® SB600. Audio - Chipset integrated by Realtek® ALC888. - Flexible 8-channel audio with jack sensing. - Compliant with Azalia 1.0 Spec. LAN - Supports 10/100/1000 Fast Ethernet by Realtek 8111B. IEEE1394 - Chipset integrated by VIA® VT6308P. - Transfer rate is up to 400Mbps. Internal I/O Connectors - ATX 24-pin power connector. - ATX 4-pin 12V CPU power connector. - CPU / System FAN connectors. - Chassis intrusion switch connector. - Front panel audio connector. - Front panel connector. - Clear CMOS jumper. - 1 x CD-in connector. - 1 x SPDIF out connector (optional, for HDMI graphics card only). - 1 x Serial port connector. - 1 x IEEE1394 connector support additional 1 port (optional). - 3 x USB 2.0 connectors support additional 6 ports. - 1 x Floppy disk drive connector. - 4 x Serial ATA II connectors. - 1 x ATA133 connector.
Key Features
MSI K9AG Neo2-Digital. Processor manufacturer: AMD, Processor socket: Socket AM2, Compatible processor series: AMD Sempron. Maximum internal memory: 8 GB. Maximum graphics card memory: 256 MB. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Power source type: ATX. Expansion slots: 3 x PCI 2 x PCI-E (x1)
