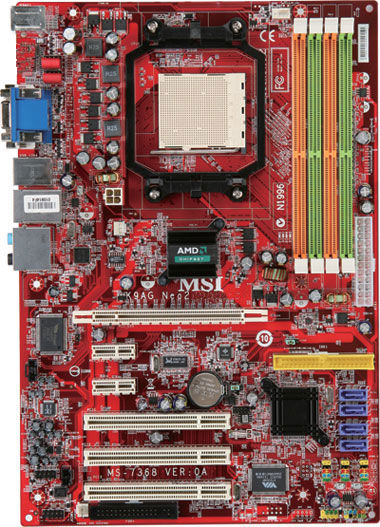

MSI K9AG Neo2 Socket AM2 ATX
Brand: MSI · SKU: 7368-010 · MPN: 7368-010 · Category: Components
MSI K9AG Neo2, AMD, Socket AM2, AMD Sempron, 1000 MHz, 8 GB, 0, 1, 0+1
Specifications
| Depth | 210 mm |
|---|---|
| Width | 305 mm |
| Audio chip | Realtek ALC888 |
| RAID levels | 0, 1, 0+1 |
| LAN controller | Realtek RTL8111B |
| CD/AUX audio in | Yes |
| Expansion slots | 1 x PCI Express x16 2 x PCI Express x1 3 x PCI |
| Processor socket | Socket AM2 |
| Power source type | ATX |
| USB 2.0 connectors | 6 |
| PS/2 ports quantity | 2 |
| DVI-D ports quantity | 1 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| Number of memory slots | 4 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 8 GB |
| Motherboard form factor | ATX |
| Number of SATA connectors | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Compatible processor series | AMD Sempron |
| Floppy disk drive connector | Yes |
| Front panel audio connector | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 210 mm |
Product Description
CPU - AMD® Athlon 64 X2, Athlon 64, and Sempron in the Socket AM2 package. Please refer to CPU Support for compatible CPU; the above description is for reference only. FSB - HyperTransport supporting speed up to 1GHz (2000MT/s). Chipset - AMD® 690G and SB600 Chipset. Main Memory - Supports dual channel DDR2 533/667/800. - 4 DDR2 DIMMs (240pin / 1.8V). - Supports a maximum memory size up to 8GB. Slots - 1 PCI Express x16 slot. - 2 PCI Express x1 slots. - 3 PCI slots, support 3.3V/ 5V PCI bus Interface. On-Board IDE - One IDE port by AMD® SB600. - Supports Ultra DMA 66/100/133 mode. - Supports PIO, Bus Master operation mode. - Can connect up to two IDE devices. On-Board SATA - 4 SATA II ports by AMD® SB600. - Supports storage and data transfers at up to 300 MB/s. RAID Function - SATA II 1~4 supports RAID 0, 1 and 0+1 mode by AMD® SB600. Audio - Chipset integrated by Realtek® ALC888. - Flexible 8-channel audio with jack sensing. - Compliant with Azalia 1.0 Spec. LAN - Supports 10/100/1000 Fast Ethernet by Realtek 8111B.
Key Features
MSI K9AG Neo2. Processor manufacturer: AMD, Processor socket: Socket AM2, Compatible processor series: AMD Sempron. Maximum internal memory: 8 GB. RAID levels: 0, 1, 0+1. LAN controller: Realtek RTL8111B. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC888
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI K9AG Neo2 Socket AM2 ATX (7368-010) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI K9AG Neo2 Socket AM2 ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI K9AG Neo2 Socket AM2 ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 7368-010.
