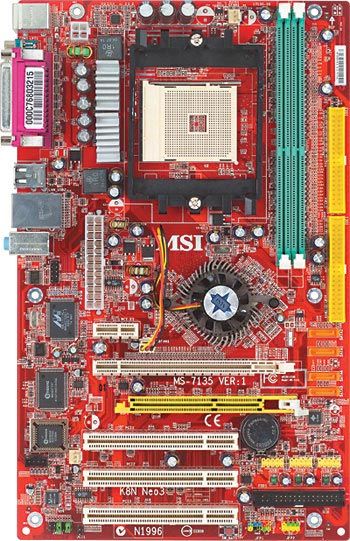

MSI K8N NEO3 F Retail Socket 754 ATX
Brand: MSI · SKU: K8N NEO3 F · MPN: K8N NEO3 F · Category: Components
MSI K8N NEO3 F Retail, AMD, Socket 754, 2 GB, 10/100/1000 Gigabit Ethernet, ATX, ATX
Specifications
| I/O ports | 1 x Parallel 1 x Serial port (COM 1) 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x Audio I/O (Line-in/Line-out/MIC) 4 x USB 2.0 1 x RJ45 LAN Jack |
|---|---|
| Audio output | RealTek ALC655 6 Channel |
| Expansion slots | 1x PCI Express x16 1x PCI Express x1 3x 32-bit Master 3.3V/5V PCI 1x AGR f AGP VGA cards |
| Processor socket | Socket 754 |
| Power source type | ATX |
| Networking features | 10/100/1000 Gigabit Ethernet |
| Processor manufacturer | AMD |
| Maximum internal memory | 2 GB |
| Motherboard form factor | ATX |
| Warranty | 3-Year Warranty |
Product Description
CPU Supports 64-bit AMD® Athlon™ 64 processor (Socket 754) Supports up to 3200+, 3400+, 3700+ or higher CPU Chipset NVIDIA® nForce4-4X Chipset HyperTransport link to the AMD Athlon 64 CPU Supports single-channel DDR333/400 memory Supports PCI Express x16/x1 interface Two independent SATA controllers, for four drives Dual Ultra ATA 133/100/66 IDE controllers Supports high-speed USB2.0 ports Main Memory Supports single channel, four-memory-bank DDR 333/400 using two 184-pin DDR DIMMs Supports a maximum memory size up to 2GB without ECC Supports 2.5v DDR SDRAM DIMM Slots One PCI Express x16 slot (PCI Express Bus specification v1.0a compliant) One PCI Express x1 slot (PCI Express Bus specification v1.0a compliant) Three 32-bit Master 3.3V/5V PCI Bus slots One AGR (Advance Graphics Riser) slot for compatible AGP VGA cards The AGR slot is a special design that only supports compatible AGP VGA cards. For more detailed information on compatible AGP VGA cards, please refer here On-Board IDE/SATA Dual IDE controllers on the nVIDIA® nForce4-4X chipset provides IDE HDD/CDROM with PIO, Bus Master and Ultra DMA 133/100/66 operation modes. Can connect up to 4 IDE devices. Supports 4 SATA ports with up to 150MB/s transfer rate. NV RAID (Software) Supports up to 4 SATA and 4 ATA133 Hard drives RAID 0, 1, 0+1, or JBOD supported RAID function available for PATA133 + SATA H/D drives Audio RealTek ALC655 6 Channel software audio codec Compliance with AC97 v2.3 Spec. Meet PC2001 audio performance requirement. LAN Marvell PHY 88E1111 Gigabit Ethernet chip (Optional) Realtek 8201 CL 10/100Mb/s Ethernet chip (Optional) USB Interface 10 USB ports Controlled by nForce4-4X chipset 4 ports in the rear I/O, 6 ports via the external bracket Internal I/O Connectors ATX 24-Pin power connector 4-pin ATX 12V power connector CPU / NB / System FAN connectors 1 x Floppy disk drive connector 4 x serial ATA connectors 2 x ATA133 HD connectors Front panel audio connector Front USB connectors: JUSB1, JUSB2, JUSB3 connector support additional 6 ports Front panel connector Serial port header CD-in connector Chassis intrusion switch connector Back Panel I/O Ports 1 x Parallel 1 x Serial port (COM 1) 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x Audio I/O (Line-in/Line-out/MIC) 4 x USB 2.0 1 x RJ45 LAN Jack
Key Features
MSI K8N NEO3 F Retail. Processor manufacturer: AMD, Processor socket: Socket 754. Maximum internal memory: 2 GB. Networking features: 10/100/1000 Gigabit Ethernet. Motherboard form factor: ATX, Power source type: ATX. Audio output: RealTek ALC655 6 Channel
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI K8N NEO3 F Retail Socket 754 ATX (K8N NEO3 F) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI K8N NEO3 F Retail Socket 754 ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI K8N NEO3 F Retail Socket 754 ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the K8N NEO3 F.
